Seko KOMPACT DPT - Timed Dosage with Trigger Activation; Trigger Activated Timed Dosage

EM00136299 rev. 1.0 IT
9

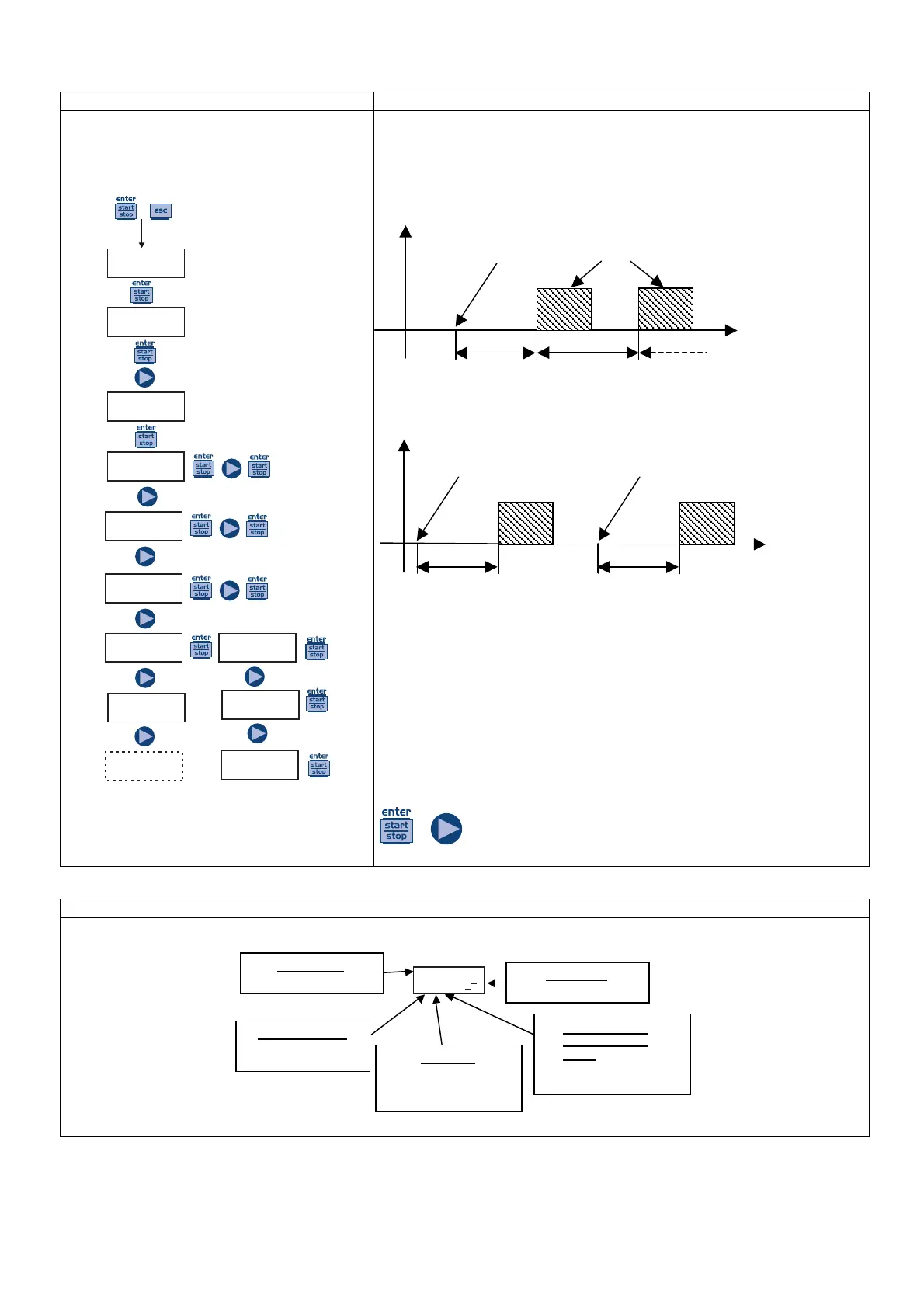

Paragraph 8 – Timed Dosage (Frequency signal input “TRIGGER” activated)
Programming
Operation
PROG
Config.
+
Config.
Funct.
Funct.
Timer
Q.ty
100 ml
Delay
00.00.00
Interval
00.00.00
Trig.Mode
Low
TrigMode
Low
TrigMode
High
TrigMode
Disabled
PausMode
TrigMode
After receiving the set Trigger signal, the pump doses a quantity
that can be programmed in mL. It is possible to set a delay time before
dosage (Delay) and an interval between subsequent dosages
(Interval) as shown on the diagram:
For example, by setting the interval Interv.= 0 you will get a system in
which the programmed quantity is dosed after each TRIGGER signal
(with the eventual delay set):
You can start the dosage by pressing the + key, which practically
simulates the Trigger signal.
The Trigger signal can be set to N. Open (it is activated when the
input is switched from open to closed mode) or to N. Closed (it is
activated when the input is switched from closed to open mode).
The Trigger signal is locked during the dosage (its reception is neither
stored nor managed).
The Pause input (Remote Control) cannot be programmed and its
activation locks the dosage, while the subsequent deactivation makes
the system wait for the Trigger signal for a new dosage.
The dosage frequency can be modified during operation by pressing
+ simultaneously.
Display during operation
Function mode
• Timer
Alarms and statuses
• Lev = Level Alarm
• Flw = Flow Alarm
•
• Set dosing quantity
(display during the
dosing)
Pump status
• empty = pump in stating
• Stop = pump in stop
• Paus = pump in pause
•
Tempo
Trigger mode
• Loe or High
Delay
Interv.
Quantity
Trigger
Delay
Trigger
Delay
Trigger
