15
9) Push button for forward direction ( 9 Fig. 13 )
This push button activates the augers rotation as shown in
picture (Fig. 17) (correct direction in operation). To
disingage this function please press button nr 8 Fig. 13.
10) Push button for right side discharge door
open ( 10 Fig. 13 )
By pressing this button the discharge door will start
opening (Fig. 16). A light will be on showing the
operation. The press-button is without clutch and
therefore it tends to go back when it is released and the
discharge door maintains the position.
11) Push button for right side conveyor lowering
( 11 Fig. 13)
This p. button activates the lowering of the discharge
right side conveyor (Fig. 18). This function is activated by
keeping the button pressed continously until the required
position is achieved. ( release the button for the stop ).
12) Push button for right side conveyor lifting (
12 Fig. 13)
This p. button activates the lifting of the right side
conveyor (Fig. 19). To activate this function keep the
button pressed until it achieves the required position. (
release the button for stop)
13) Stop p. button for left side conveyor rotation (
13 Fig. 13)
By pressing this p. button, buttons ( 29 – 30 Fig. 13 ) are
disactivated. In case of necessity of inverted direction
rotation of the augers, before pressing the pertaining
button, you must first press the stop button and wait until
the augers are in still position.
14) Push button for left side conveyor lowering (
14 Fig. 13)
This p. button activates the lowering Fig. 20. Of the
discharge left side conveyor. To activate this function the
button must be kept pressed until it achieves the required
position. ( release the button for stop ).

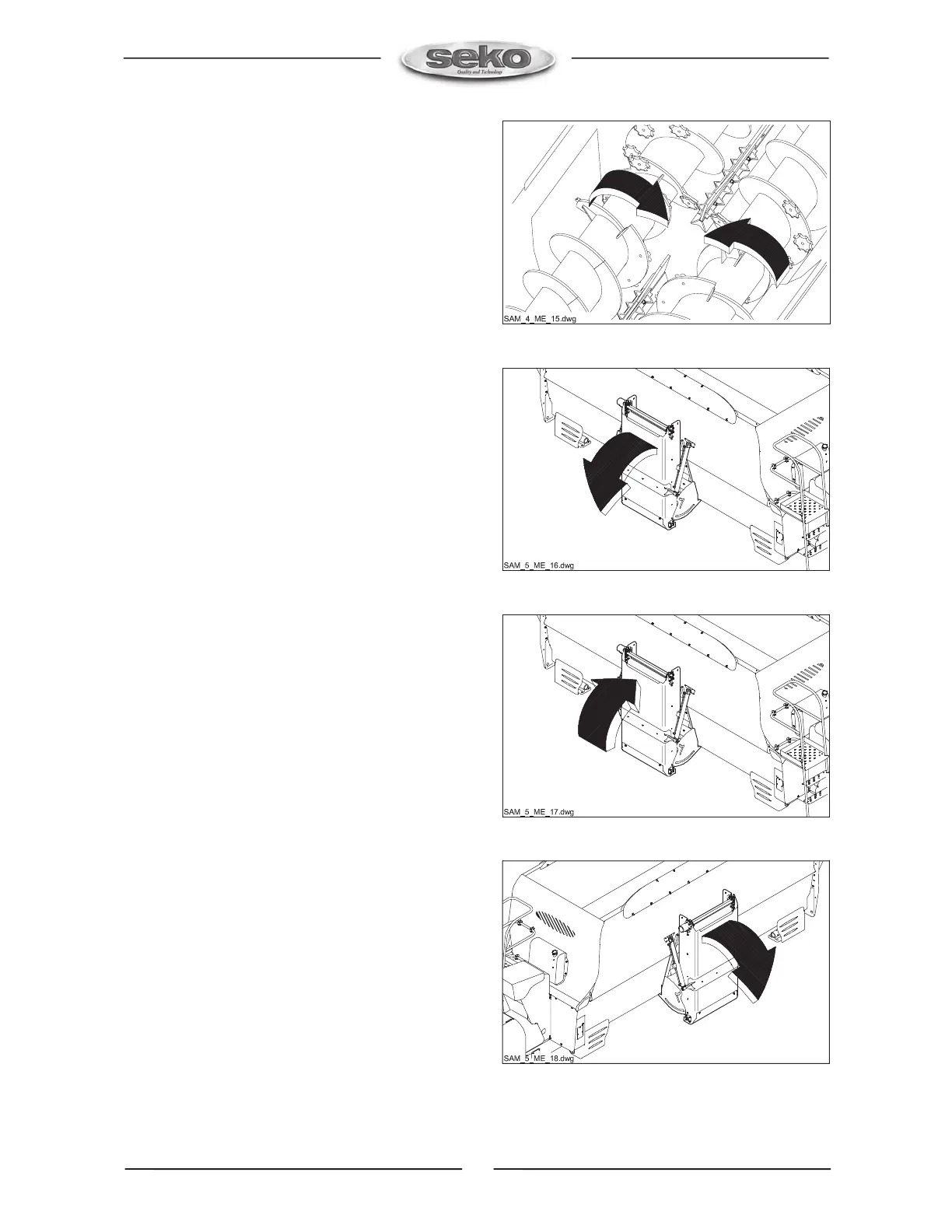

Fig. 17
Fig. 18
Fig. 19
Fig. 20
