www.selbit.pl
- 2 -
Content:
Chapter 1 – Mounting and connections
Chapter 2 - First start
Chapter 3 – Checking controller’s parameters
Chapter 4 – Quick access buttons A, B, C
Chapter 5 – Normal mode cutting (board after board)
Chapter 6 – Normal mode cutting without board taking out
Chapter 7 – Manual mode cutting (manual program)
Chapter 8 – Automatic saw mode (quickprogram)
Chapter 9 – Program saw mode (A, B, C)
Chapter 10 - Operating order
Chapter 11 – EMC Approval
Chapter 12 – Possible errors and solutions
CHAPTER 1
Mounting and controller’s connections
During controller’s mounting is advised to follow this instructions correctly.
Point - 1
Before mounting in the main board (fig. 1) please cut off rectangle hole 175 x 140 mm.
This hole should be made carefully thus rubber sealing is adjoined to the from panel.
Eventually any irregularity created after incorrect cutting out please smooth them using small
metal file and protect it by anti-corrosion painting. If on the main panel is no place to mount
controller, it is possible to add it as separate device (fig. 2).

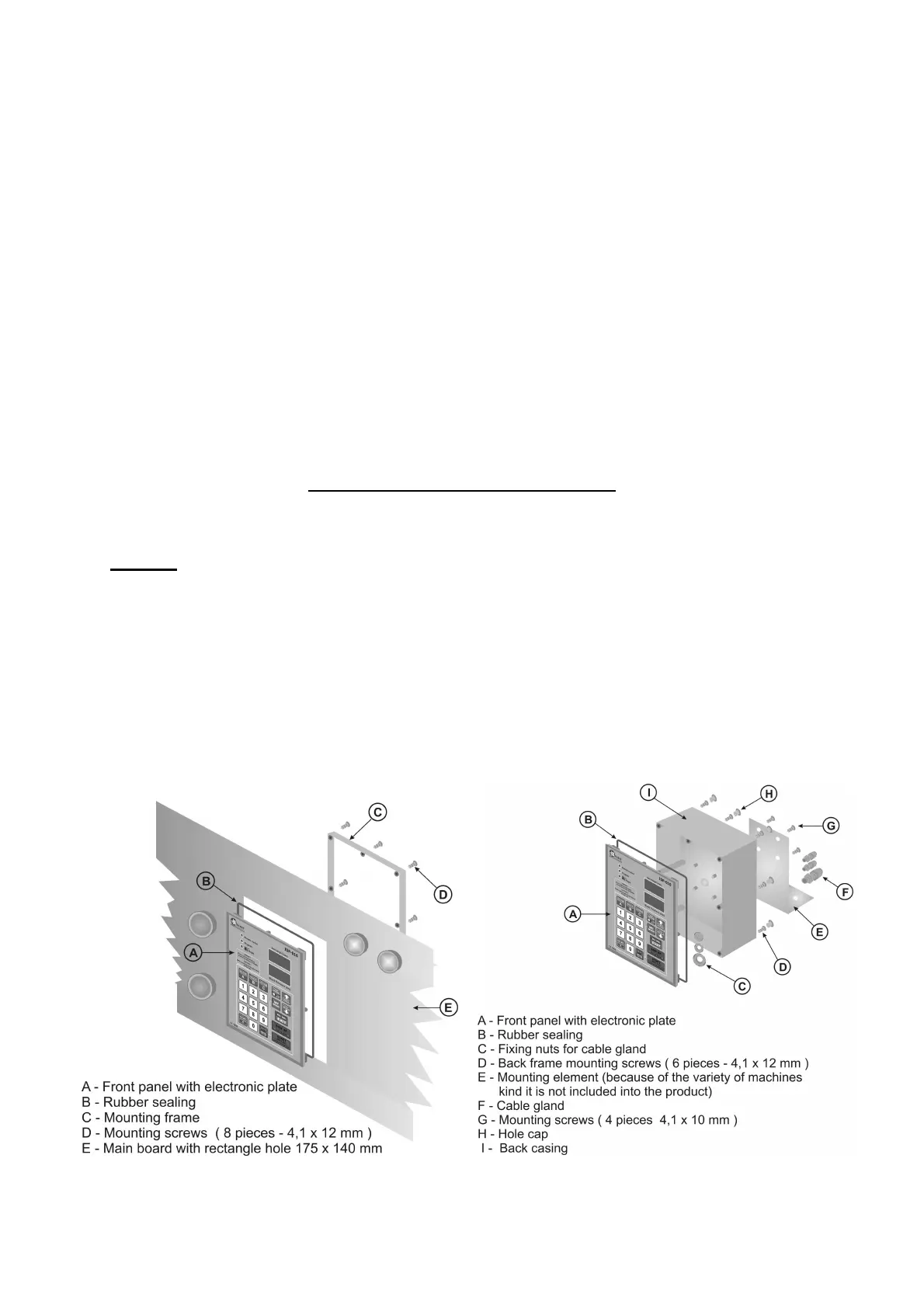

Figure 1. Controller mounting on the main board. Figure 2. Mounted controller as separate device.
In case of controller mounting as a
