SELFSAT SNIPE 3 User Manual

ENGLISH - 6
3. Operating Instruction

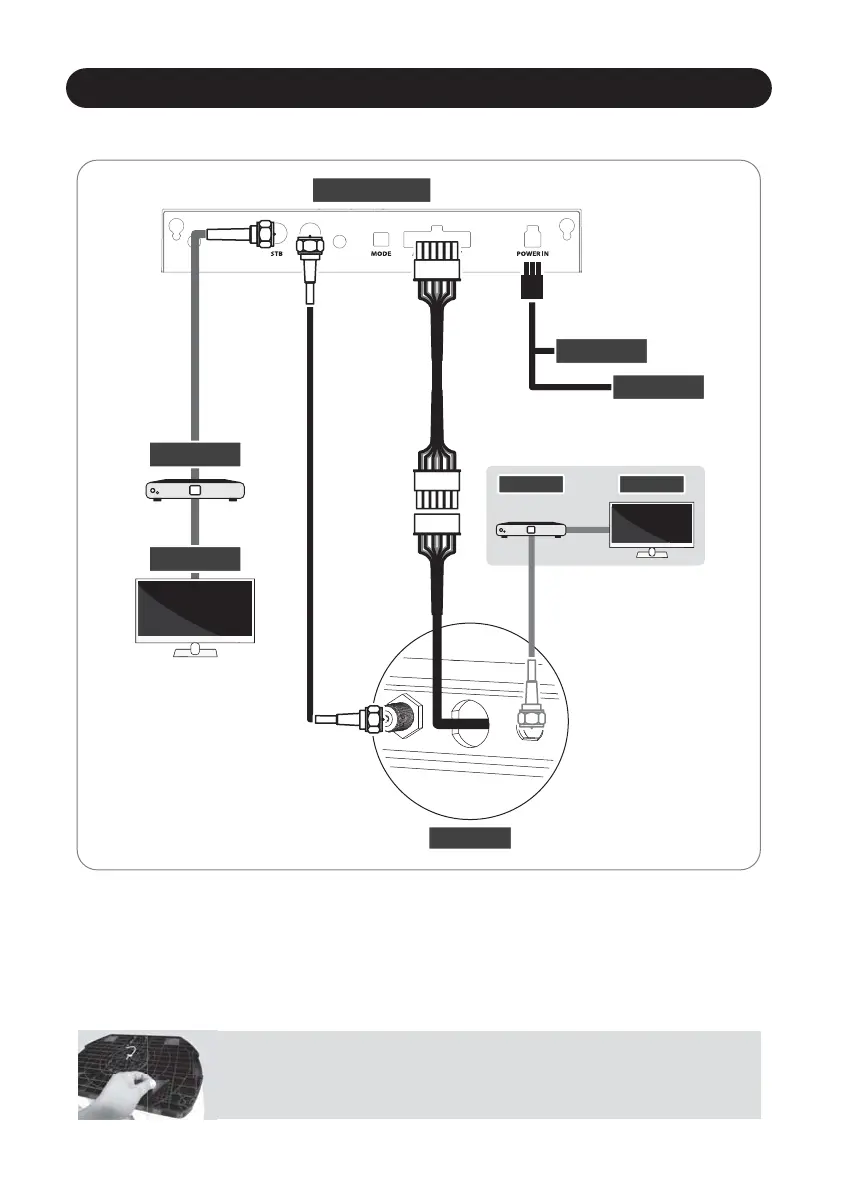

3-1. Connection diagram
Portable use
Attach four(4) base pads to the bottom of antenna base.
CONTROLLER
MAIN UNIT
Controller cable (20pin cable)
※ Extra connection
for twin outputs (optional)
Signal cable
There are two cable connections from the main unit to the controller
Use controller cable (20pin) to connect the controller and the cable running out from the main unit
Use STB cable (the shortest cable) to connect the controller and STB
Please check the labels to use the correct cable for the job
Please ensure the provided cables are used and not modied in anyway
•
•
•
•
•
Power input cable
Signal cable (7m)
STB
TV
Ignition
Cigar jack
STB cable (1.5m)
STB
TV

SELFSAT SNIPE 3 Specifications

General

Frequency Range	10.7 - 12.75 GHz
Polarization	Linear (Horizontal/Vertical)
Azimuth Range	360°
Satellite Systems	DVB-S2, DVB-S
Gain	33.7 dBi @ 12.7 GHz
Power Supply	12 - 24 V DC
LNB Output	1
Temperature Range	-20°C to 60°C
Antenna Type	Flat Panel Antenna
