5

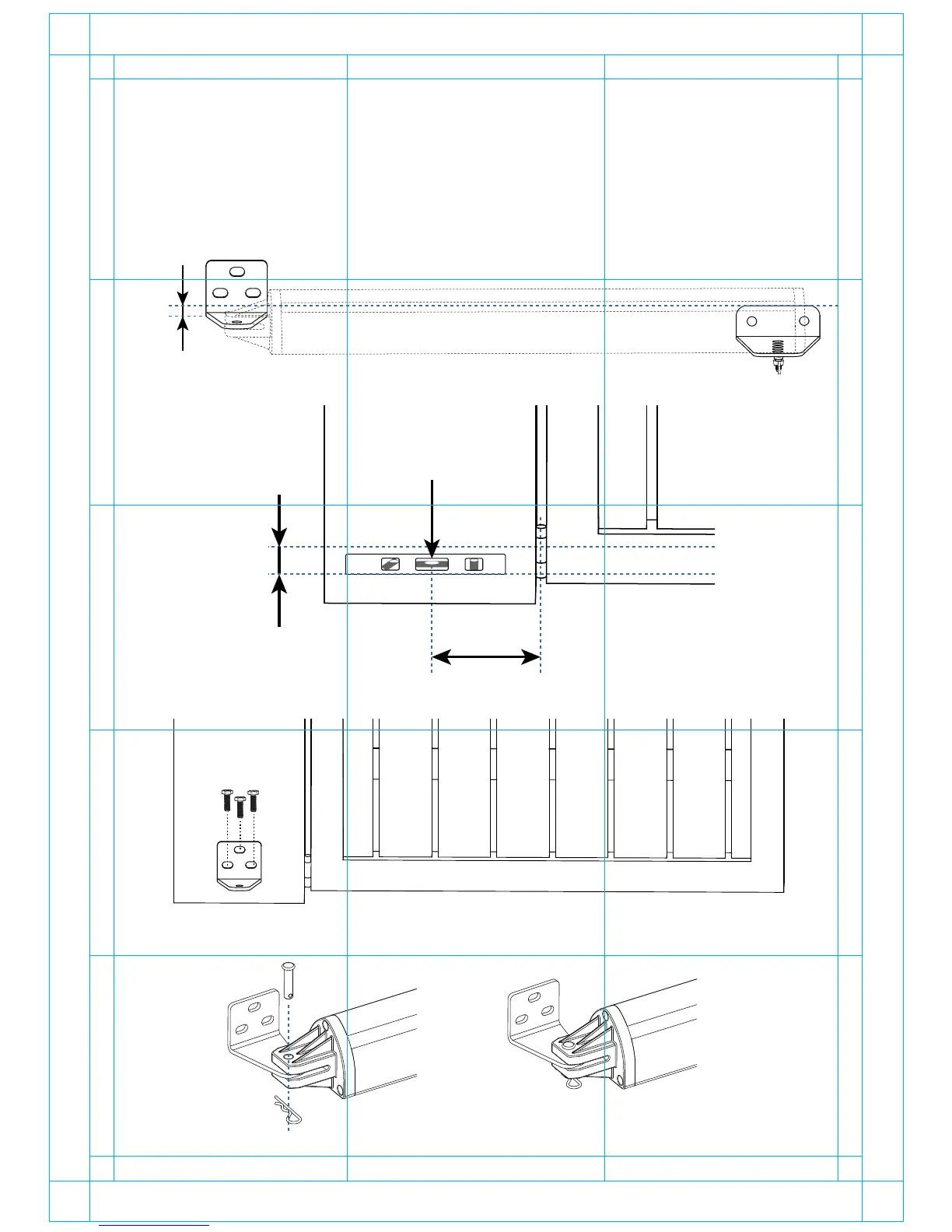

Pillar side:
Find the desired value B, according to the value D, as described in the previous table explaining the
opening angle. Make sure the pillar side bracket is placed horizontally, with the use of a spirit level, before
you drill the holes for the bracket.
Mark a line on the lower frame of your gate, as shown below, and allow a 16mm vertical distance as it’s
the height difference between the lowest part of the pillar side bracket, and the tallest part of the gate
side bracket, as shown below.
16mm
B
16mm
Use a spirit level to be sure
that the mounting bracket
can be placed horizontally.
