6
1
2
3
4
5

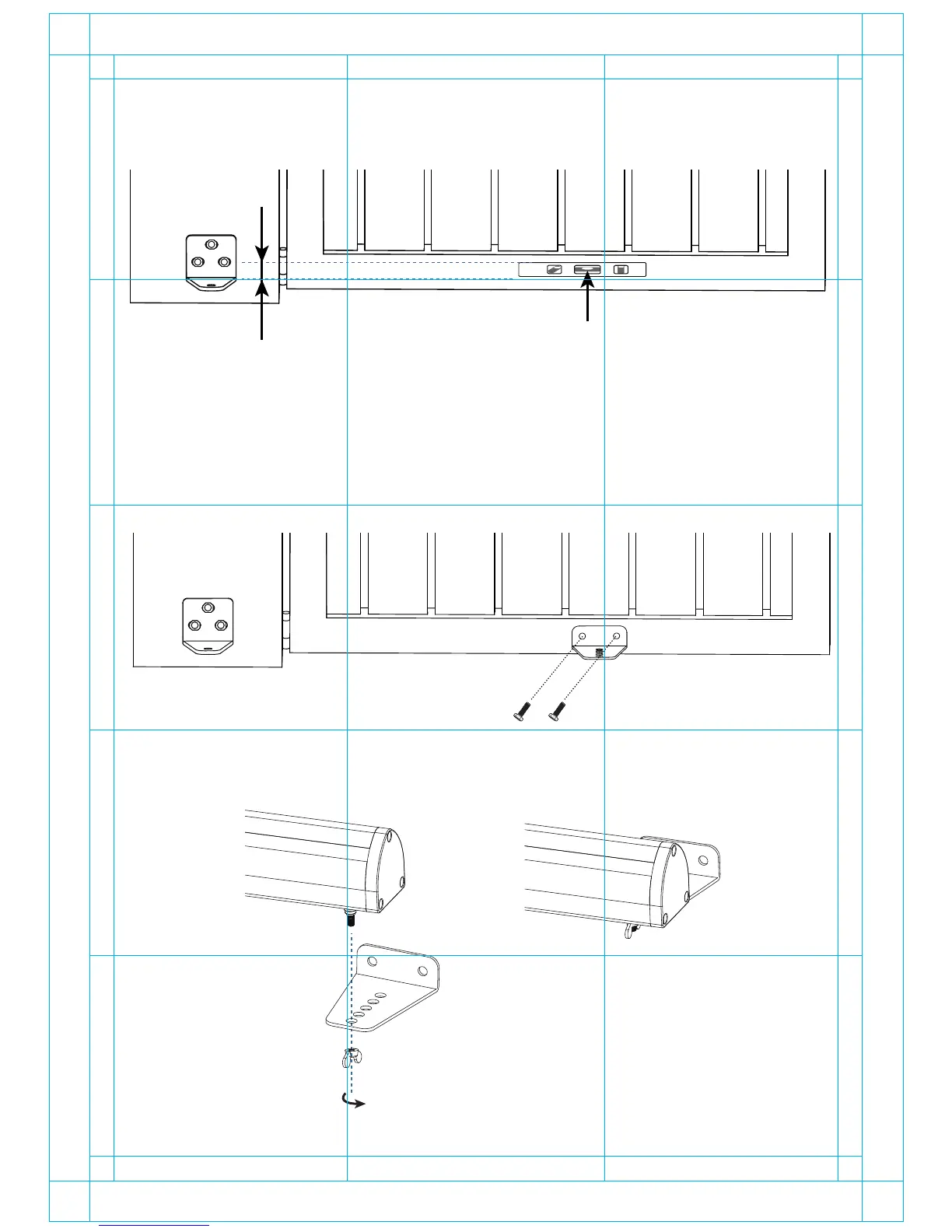

Gate side:
Fasten the wing nut in this direction.
Make sure the gate side bracket is placed horizontally, with the use of a spirit level, before you drill the
holes for the bracket.
16mm
Use a spirit level to be sure that
the mounting bracket can be
placed horizontally.
Put the fixing bolt downwards through the hole of the actuator, and the hole of the pillar side bracket.
And use the snap pin to keep them in place.
