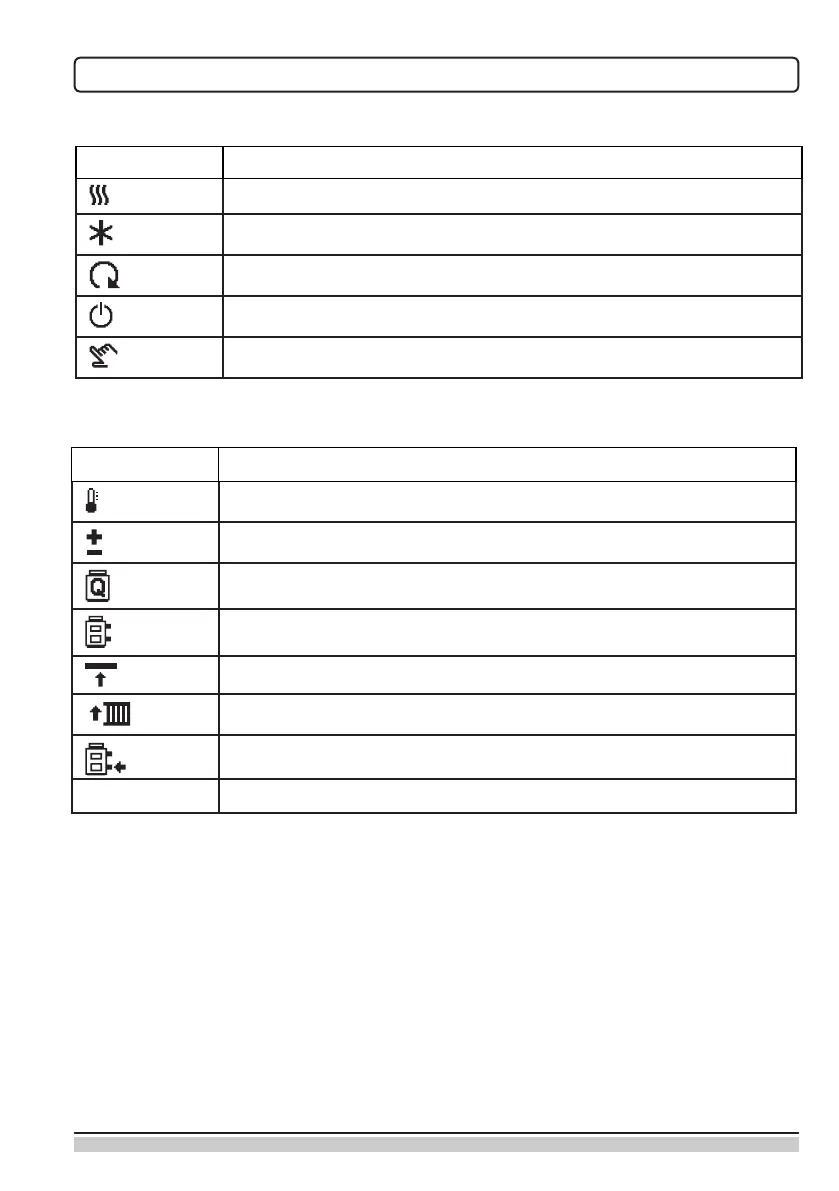

DESCPRIPTION OF SYMBOLS ON THE DISPLAY
Symbol
Description
Heating.
Cooling.
Automatic mode.
Stand by.
Manual mode.
CONTROLER MODE SYMBOLS
TEMPERATURE AND OTHER DATA SYMBOLS
Symbol
Description
Measured temperature.
Set point or calculated temperature.
Supply temperature.
Boiler temperature.
Stand- pipe temperature.
Stand- pipe temperature.
Boiler return temperature.
T1, T2 Temperature measured by the sensor T1, T2.
