Installation

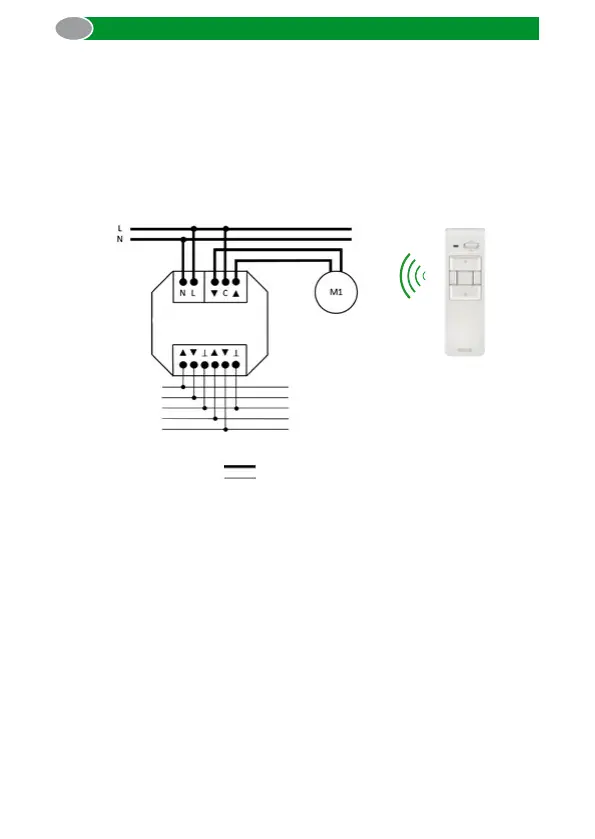

4.1. Connection as a motor controller
This connection diagram enables the direct operation of any wired
drive that is connected to the potential-free exit of the power supply
unit.
Optionally the operation can also be done via the extension (5-V small
signal voltage) or via an additional SELVE commeo hand-held trans-
mitter.
Optional:
commeo hand-held
transmitter
(e. g. commeo Send 1)
Extended local UP
Extended local DOWN
GND
Group UP
Group DOWN
commeo Control
Mains voltage (230 V)
Small signal voltage (5 V)
