EN
27
Installation and electrical connection
4.5. Setting of the end positions with setting switch/switch
When connecting the setting switch, consider the following:
Warning!
Caution! Risk of injury through an electric shock!
Connection only when de-energised!
The 4 wires in the setting switch cable must be connected to the motor wiring cable accor-
ding to their colours.
UP = brown
DOWN = black
N = blue
PE = yellow-green

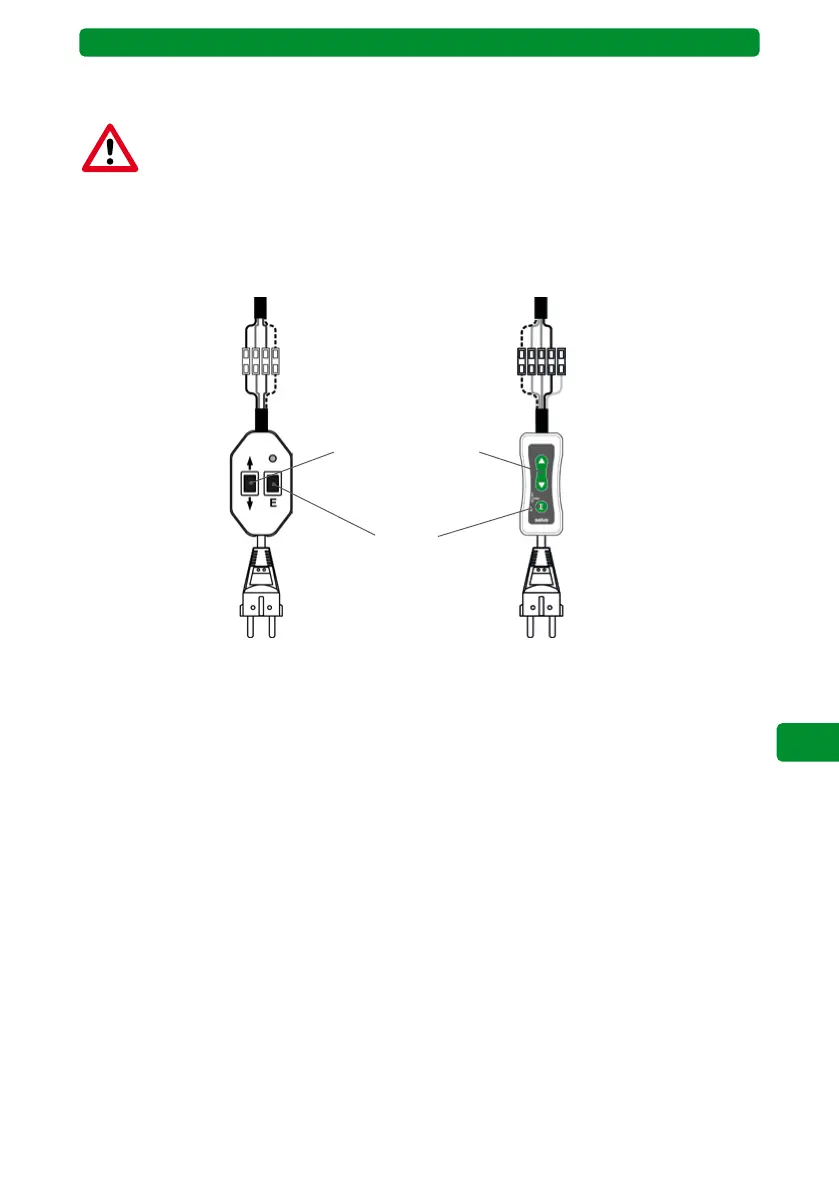

Control Up/Down
E button
SELVE setting switch
article no. 290103
SELVE universal setting switch
article no. 291009
Note: The following settings can be made with both the SELVE setting switch (article no.
290103) and the new SELVE universal setting switch (article no. 291009).
