28

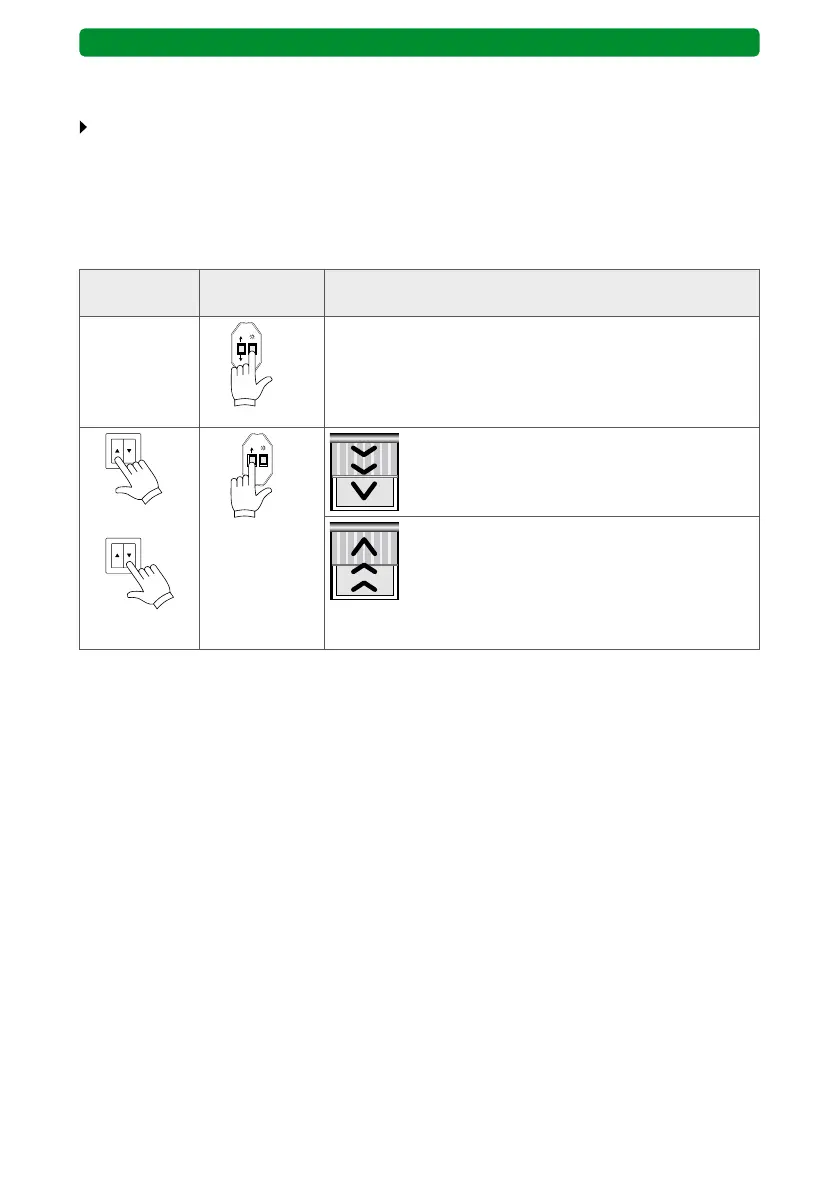

Setting of the end positions
4.5.1. Semi-automatic setup-mode, deletion and semi-automatic setting of the end
positions
in operation bottom position, top stop/release
When the movement is interrupted twice during operation, the system is in semi-automatic
setup-mode. The motor will only find the upper end limit automatically.
Important: A limit stop for the upper end limit is necessary!
First the lower end limit has to be run-up to. From there move against the upper limit stop
without interruption, until the motor is automatically switched off.
Setting with
switch
Setting with
setting switch
Drive
E
1 s
Press the E button of the setting switch for
1 second. Both limit positions already set will
be deleted.
Note: Not required for the initial installation or
after resetting to factory defaults.
or
E
STOP
STOP
Move the motor with the UP or DOWN button
downwards to the requested lower end limit.
STOP
STOP
Run against the limit stop at the top without
stopping; the motor stops automatically. The
correct direction of rotation assignment has
been made. Perform a test run: The motor
moves up against the limit stop and relieves
shortly.
