8 Chapter 2: Installation
WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2
2.6.3 Vibration

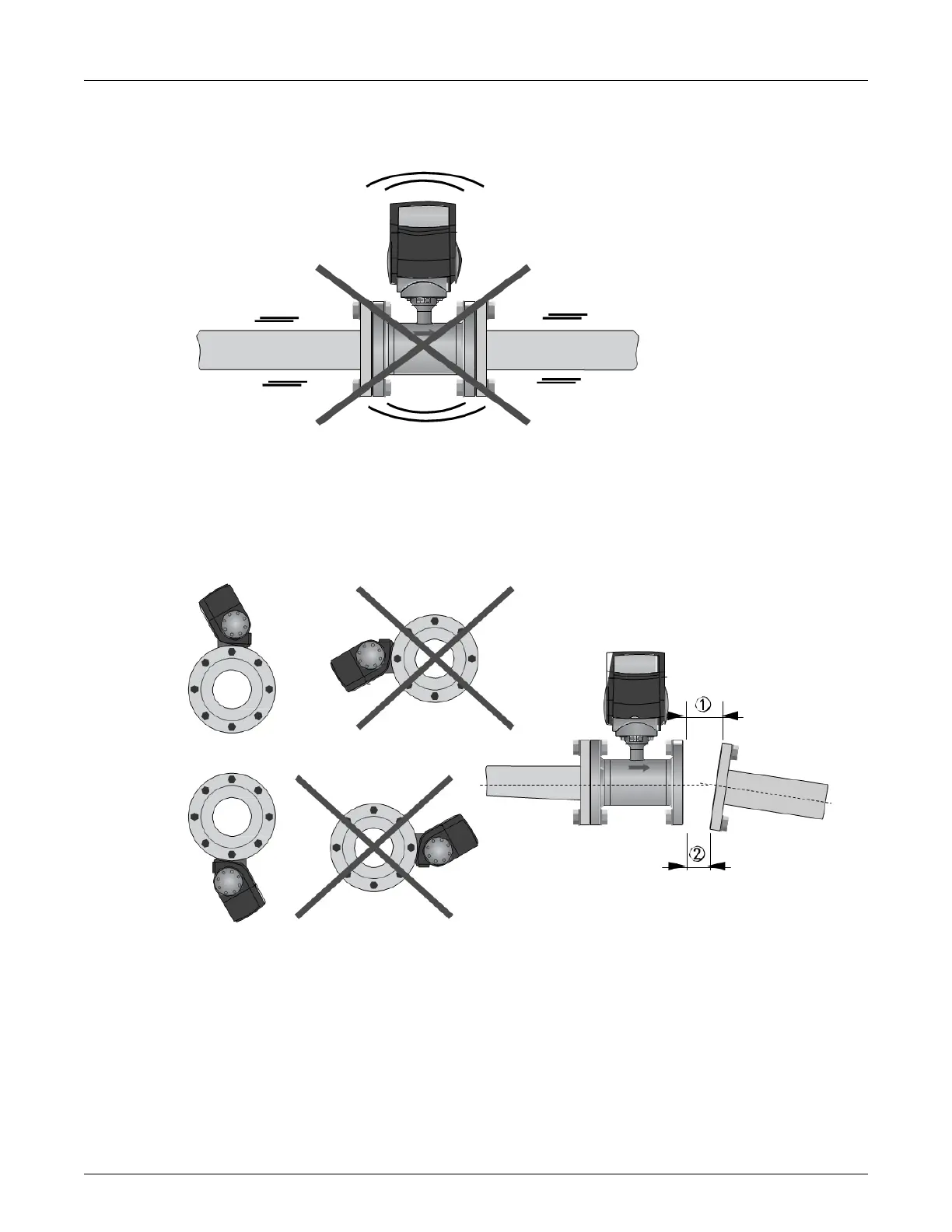

Figure 2-7: Avoid vibrations
2.6.4 Mounting position and flange deviation
Figure 2-8: Mounting position and flange deviation
1. L
max
2. L
min
• Mount sensor either with converter aligned upwards or downwards.
• Install sensor in line with the pipe axis.
• Pipe flange faces must be parallel to each other.
