Chapter 3: Electrical Connections 25
accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01
3.4.2 IP68 housing (compact version)

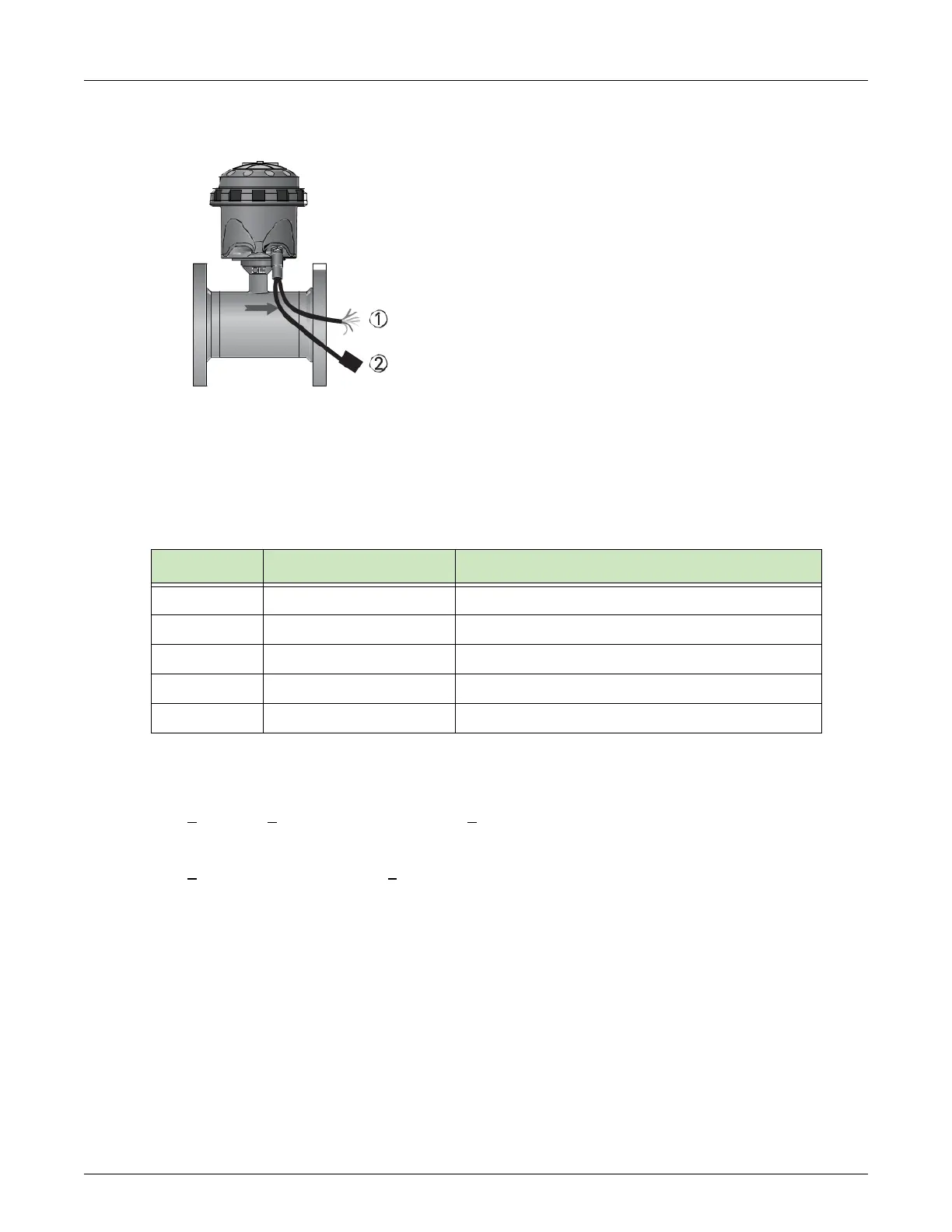

Figure 3-7: Output cable at IP68 compact version
1. Color coded leads of output cable
2. AMR module
Table 3-3: Wire connections and functions
Wire color Contact on connector Function
Yellow A Status output 1
White G Status output 2
Bl u e H G r ound
Br o w n B Pu l s e output A
Green F
Pu l s e output B
Electrical values
• Pulse output passive:
f < 100 Hz; I < 10 mA; U: 2.7...24 VDC (P < 100 mW)
• Status output passive:
I < 10 mA; U: 2.7...24 VDC (P < 100 mW)
