24 Chapter 3: Electrical Connections
WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2

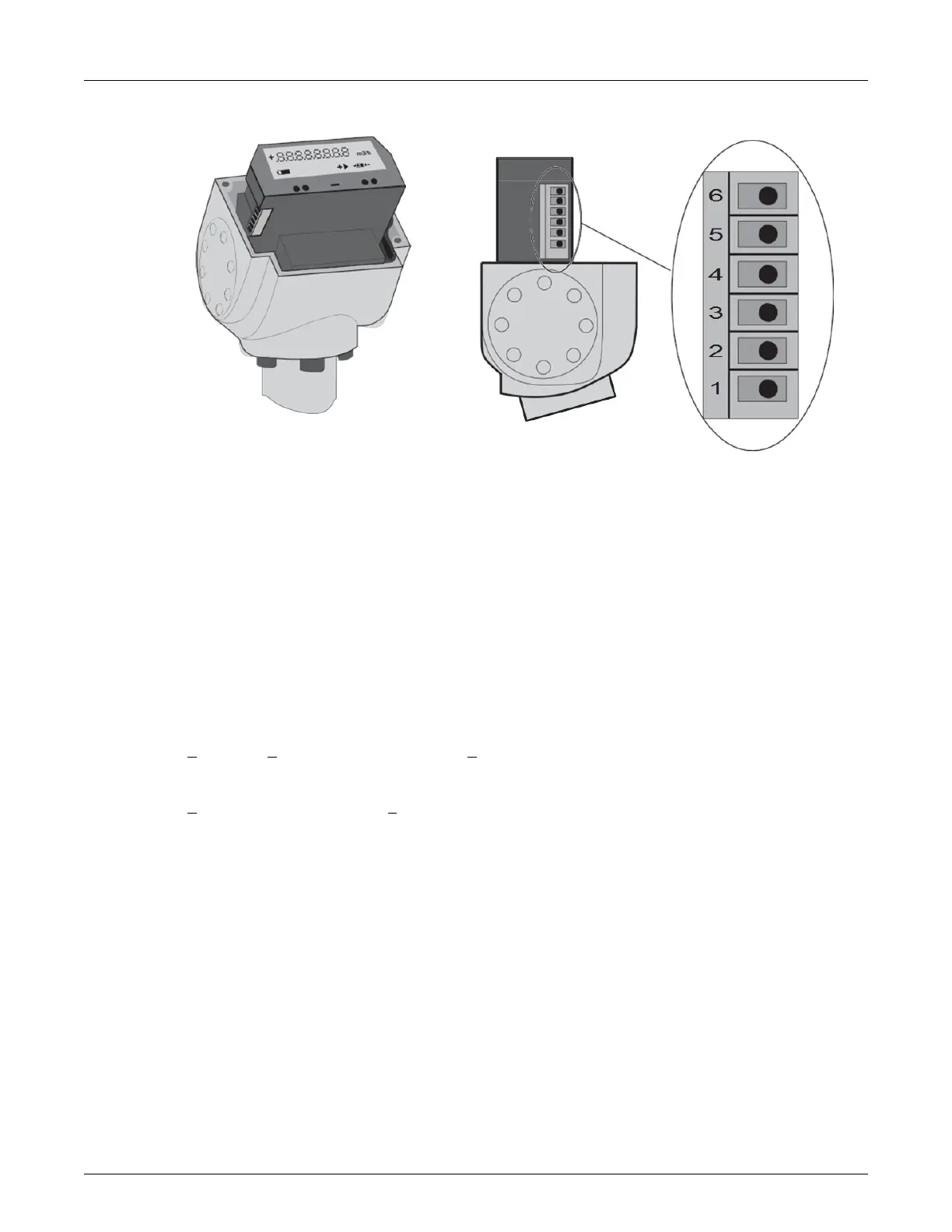

Figure 3-6: Terminal assignment
1. 1 Status output 1 or pulse output C
2. 2 Status output 2
3. 3 Not used
4. 4 Common ground
5. 5 Pulse output A
6. 6 Pulse output B
Electrical values
• Pulse output passive:
f < 100 Hz; I < 10 mA; U: 2.7...24 VDC (P < 100 mW)
• Status output passive:
I < 10 mA; U: 2.7...24 VDC (P < 100 mW)
