16 Chapter 2: Installation
WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2
1
The torque values also depend on variables (temperature, bolt material, gasket material, lubricants,
etc.) outside the control of the manufacturer. Therefore, these values should be regarded as indicative
only.
2.8 Mounting of the field housing, remote version
Assembly materials and tools are not part of the delivery. Use the assembly materials and tools in
compliance with the applicable occupational health and safety directives.
2.8.1 Pipe mounting

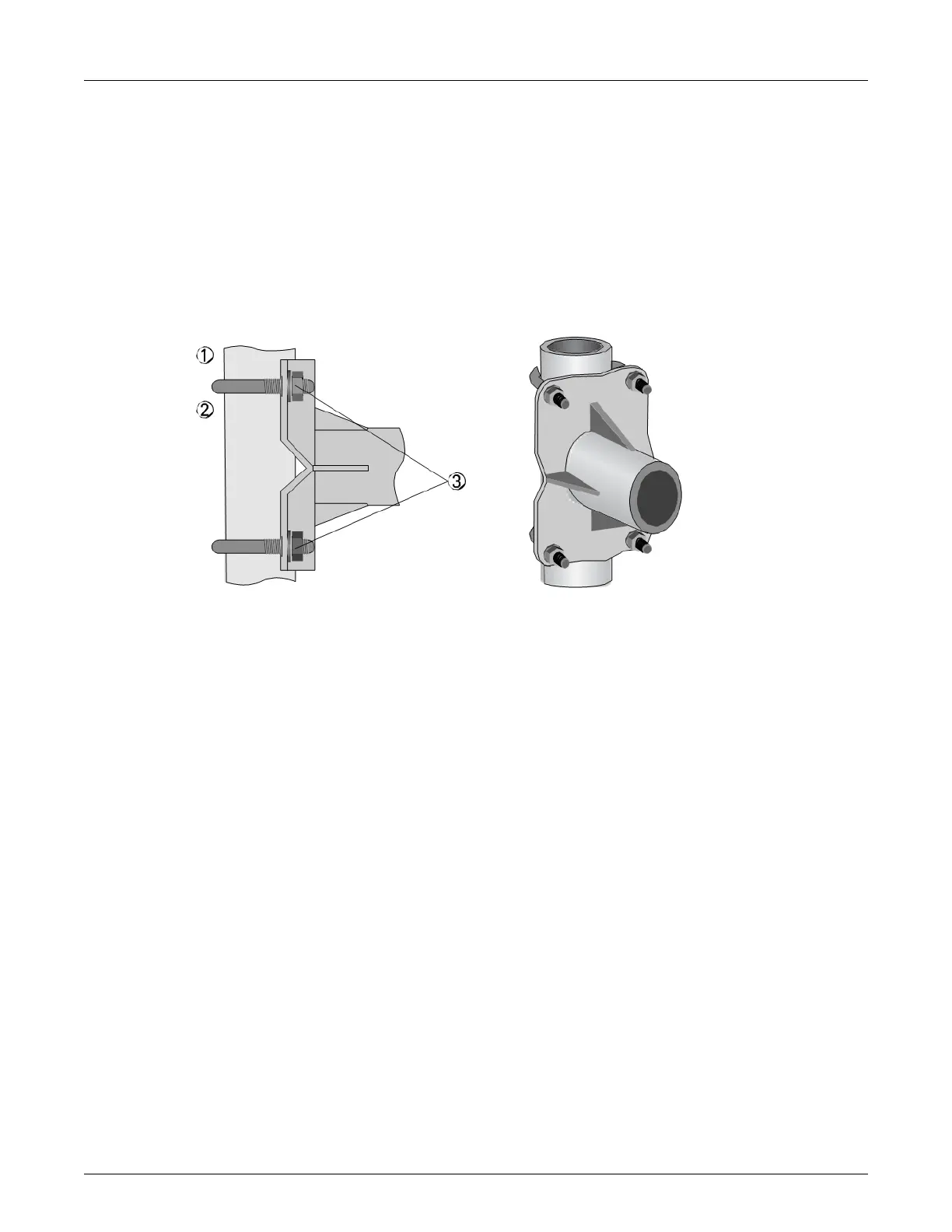

Figure 2-19: Pipe mounting of the field housing
1. Fix the signal converter to the pipe.
2. Fasten the signal converter using
standard U-bolts and washers.
3. Tighten the nuts.
2.8.2 Wall mounting
No special requirements.
