Chapter 2: Installation 5
accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01
2.3 Nameplate
Check the device nameplate to ensure that the device is delivered according to your order. Additional
information (i.e. correct supply voltage) can be found in the documentation of the signal converter.

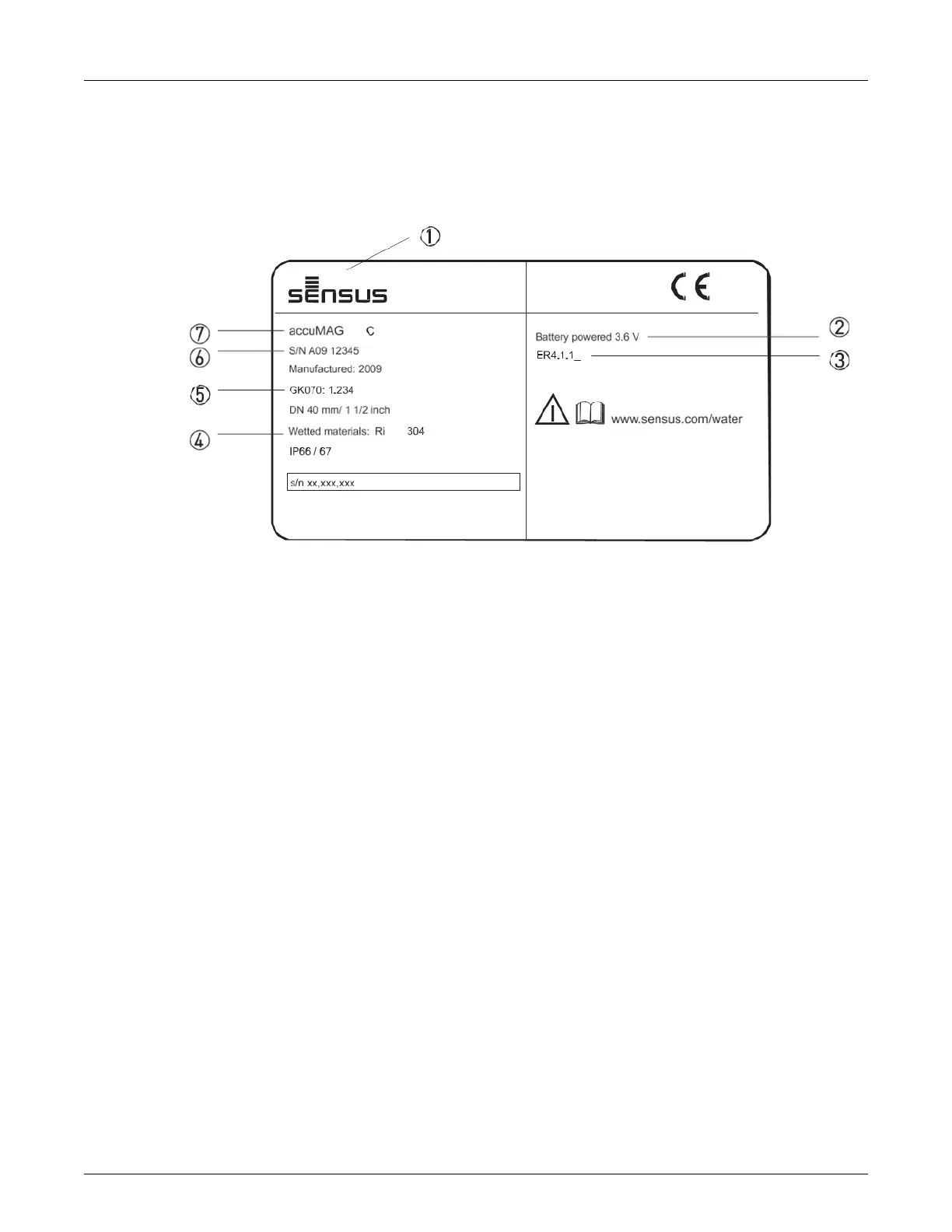

Figure 2-3:Example for nameplate
1. Manufacturer
2. Voltage information
3. Electronic Revision number
4. Material of wetted parts
5. Meter constant
6. Serial number
7. Device ty
pe
2.4 Transport
Signal converter
• No special requirements.
Compact version
• Do not lift the device by the signal converter housing.
• Do not use lifting chains.
• To transport flange devices, use lifting straps. Wr
ap
these around both process connections.
