Chapter 3: Electrical Connections 21
accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01
3.3 Connection of the signal cable
3.3.1 IP 67 housing (field version)
To ensure smooth functioning, always use the signal cables included in the delivery.
The signal cable is only used for remote versions. The standard cable includes both electrode and field
current leads.

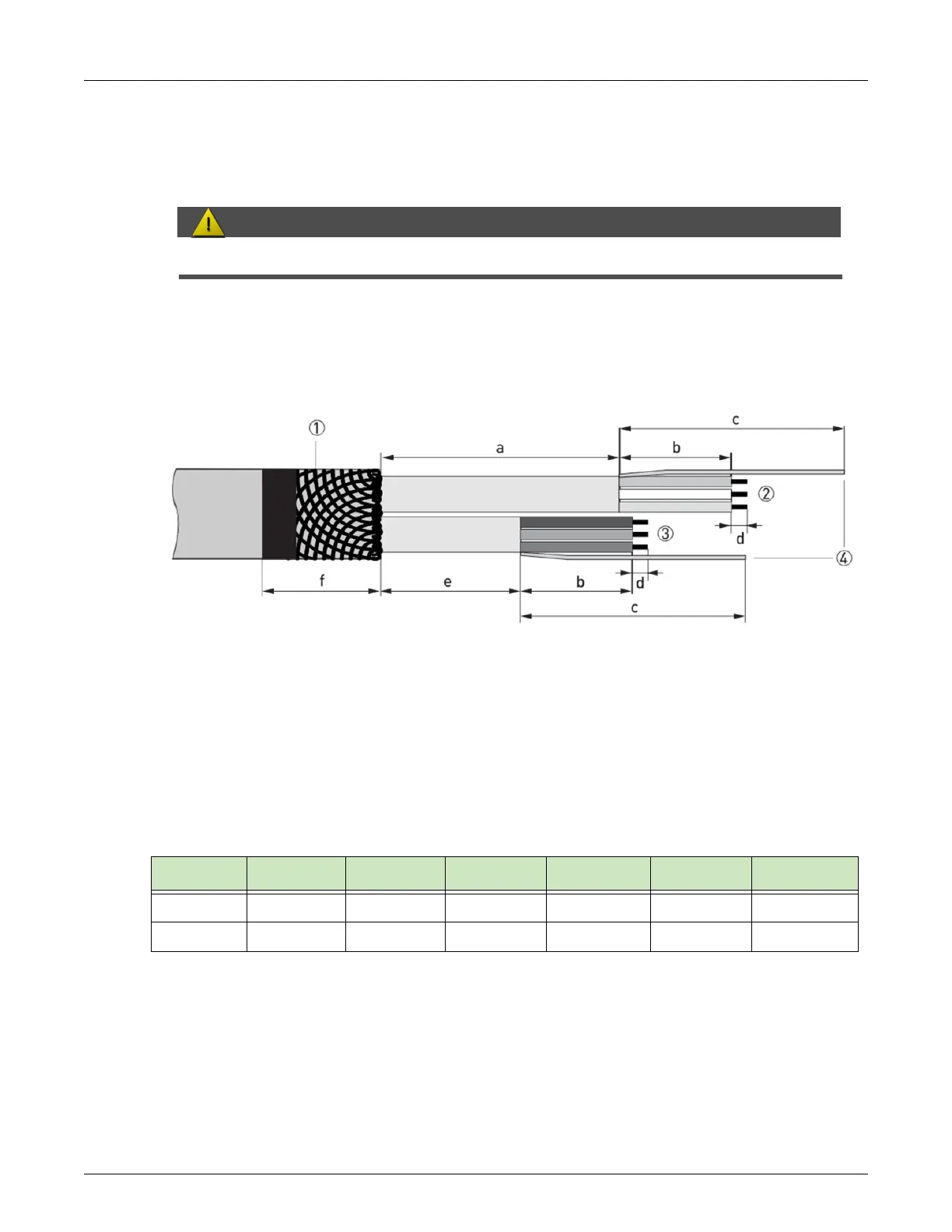

Figure 3-2:Preparation of standard cable (both sides)
1. 1 Shielding
2. 2 Blue + green + yellow cable, used for field current (terminals 7, 8, 9)
3. 3 Brown + white + violet cable, used for electro
de signals (terminals 1, 2, 3)
4. 4 Drain wires
Table 3-1: Dimensions of cable
a b c d e f
mm 75 35 70 5 45 30
inch 3.0 1.4 2.8 0.2 1.8 1.2
