Table 3-2: Wire Color Definitions
Wire color Terminal Function
Br o w n 1 Reference el ec tr ode
White 2 Standard electrode s i g n al
Violet 3 Standard electrode s i g n al
Bl u e 7 Field curr ent
Green 8 Field curr ent
Yellow 9 No function
Drain wires Screws Shielding
Chapter 3: Electrical Connections 23
accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01
3.4 Connection of the output cable
3.4.1 IP67 housing (compact and field version)

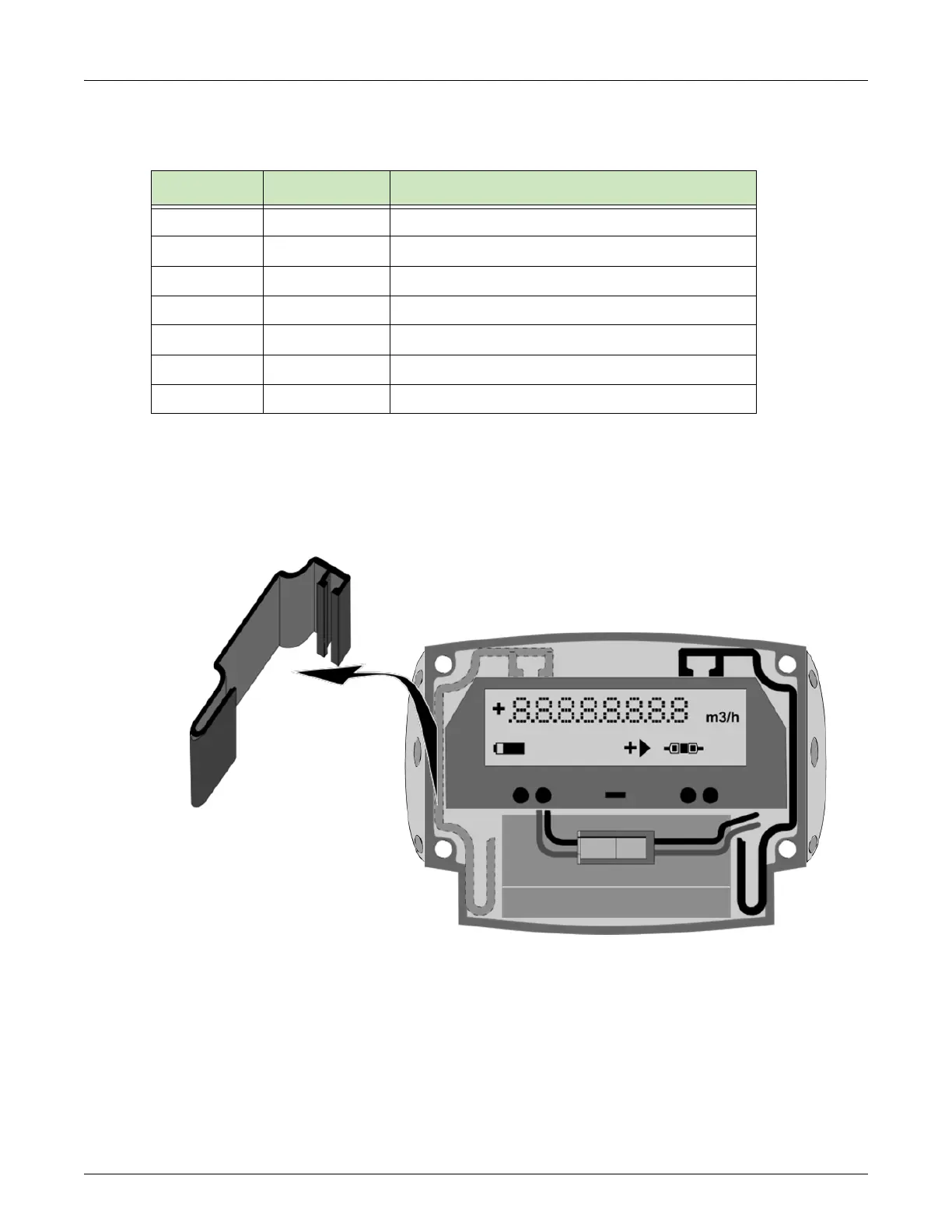

Figure 3-5: Removing side cap
