7.1 Dimensions and weights
1
The value may vary depending on the used cable glands

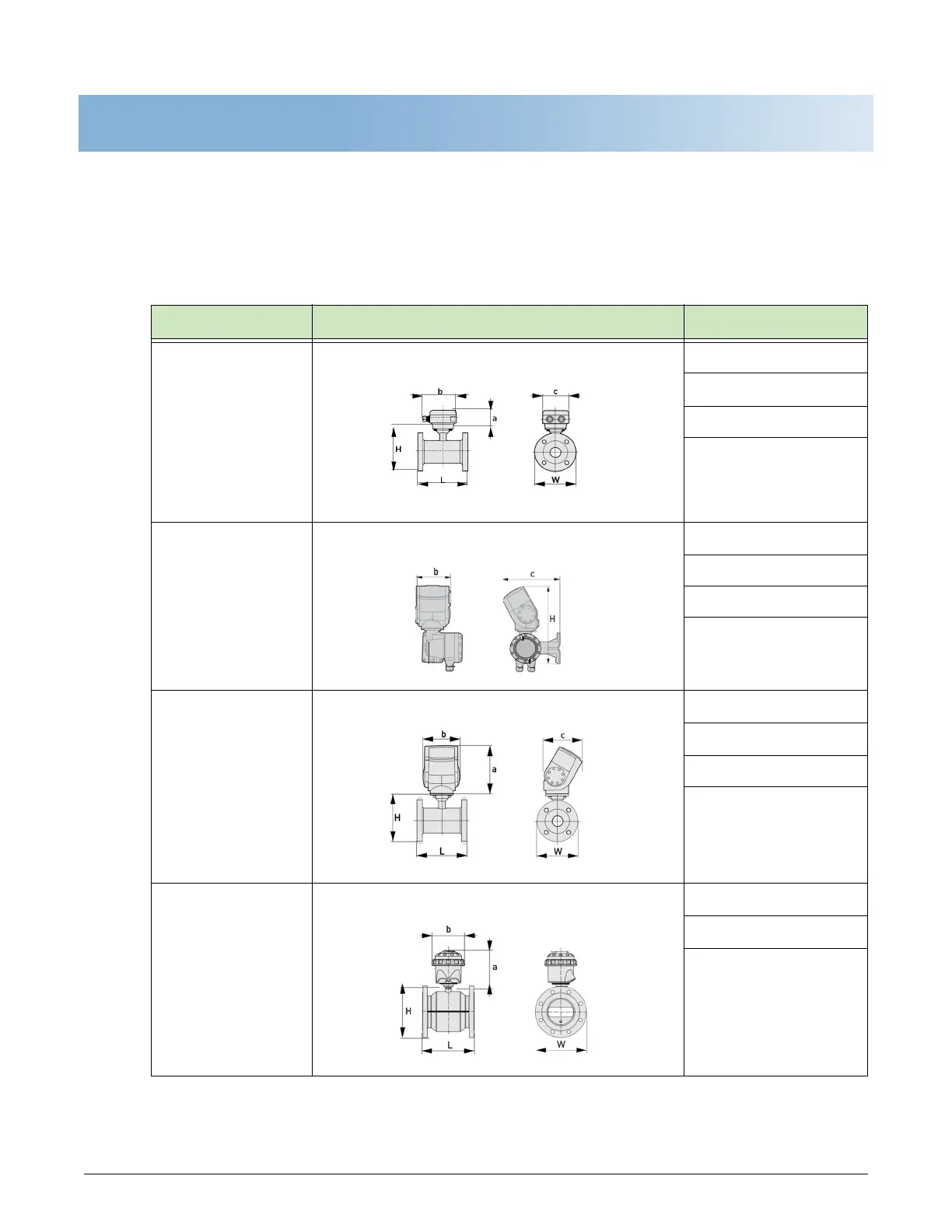

Table 7-1: Dimensions and weights
Part Illustration Dimensions
Remote flow sensor
a = 77 mm
/ 3.1"
b =
139 mm / 5.5"
1
c = 106 mm / 4.2"
Total height = H + a
Remote version
in alu-
minium housing (IP67)
b = 132 mm / 5.2"
c =
235 mm / 9.3"
H =
310 mm / 12.2"
Weight = 3.3 kg
/ 7 . 3 lb
Compact version in
aluminium housing
(IP67)
a = 170 mm / 6.7"
b =
132 mm / 5.2"
c =
140 mm / 5.5"
Total height = H + a
Compact version in
polycarbonate housing
(IP68)
a =
159 mm / 6.3"
b =
161 mm / 6.3"
Total height = H + a
