SENTINEL
PROPRIETARY INFORMATION AND MATERIALS OF UNITEC INC. 88

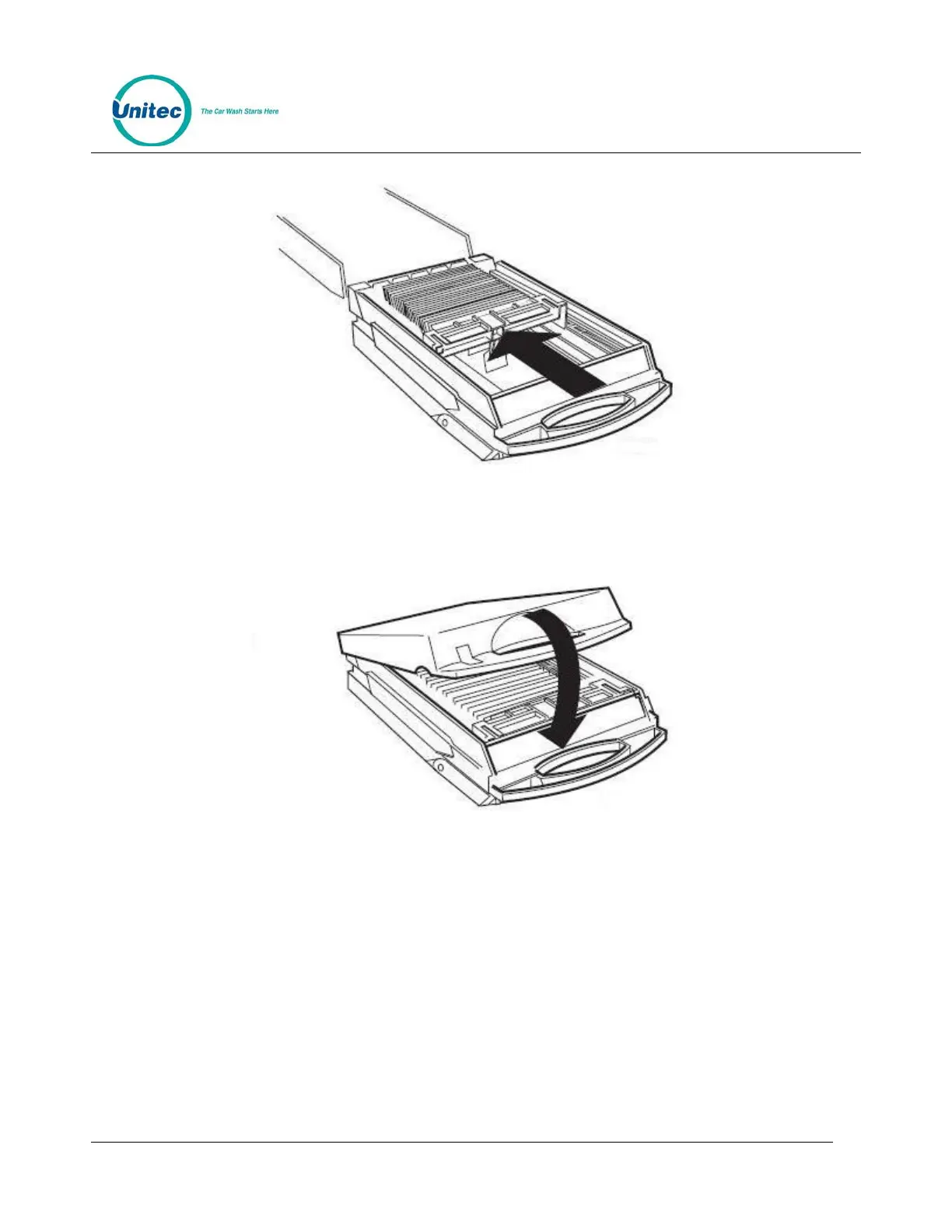

Figure 11.23. Tension Plate and Lid
3. Move the tension plate towards the bills close enough to hold the bills into the correct
position when closing the lid and inserting the cassette into the bill dispenser.
4. Close the cassette lid and press carefully to fully shut the cassette. The green button will
pop out when the cassette is fully closed.
