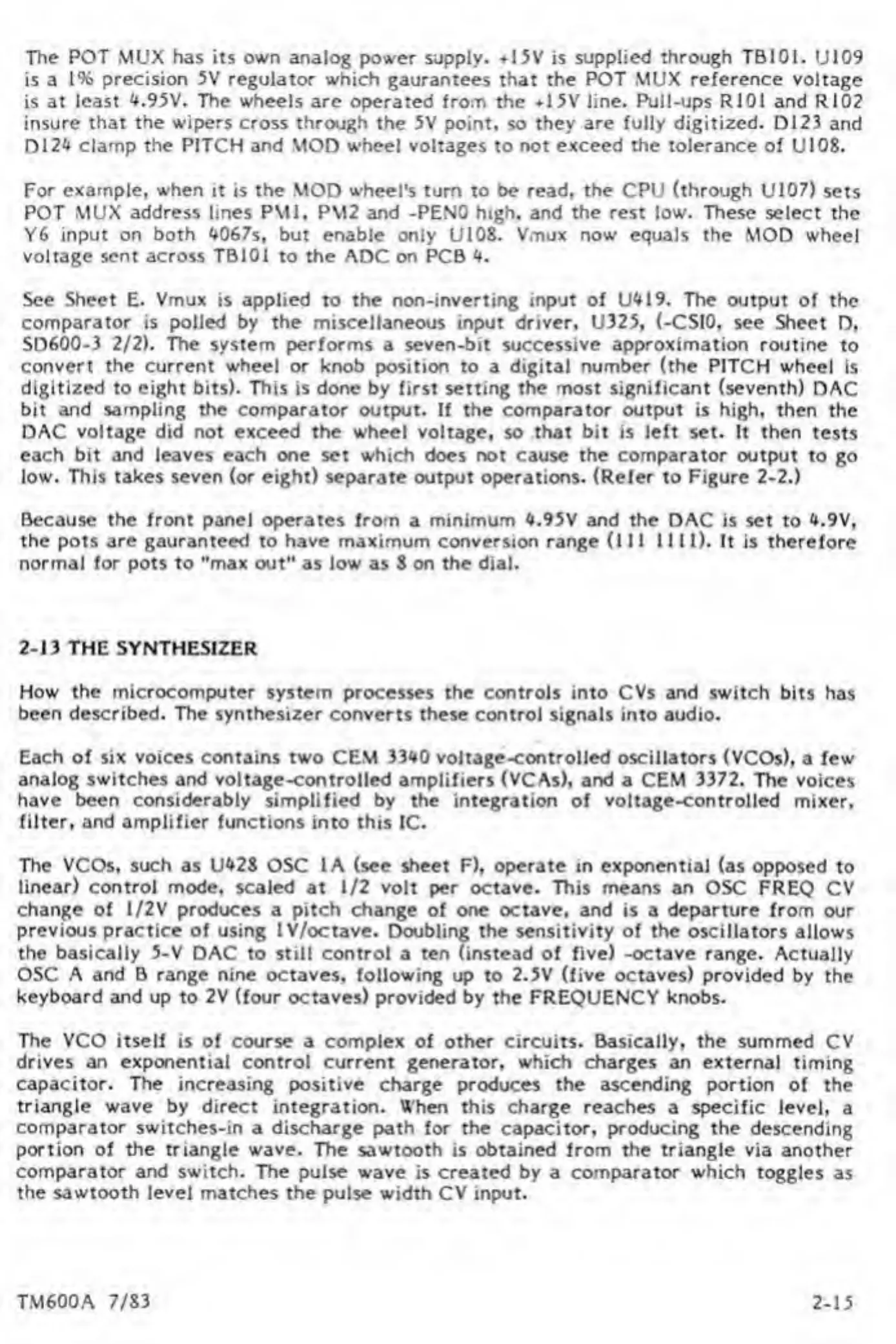

The
POT
MUX
has
its
own
analog
power
supply.
♦
15V
is
supplied
through
TB101.
IJI09
is
a
1%
precision
5V
regulator
which
gaurantees
that
the
POT
MUX
reference
voltage
is
at
least
4.95V.
The
wheels
are
operated
from
the
♦
15V
line.
Pull-ups
R101
and
R102
insure
that
the
wipers
cross
through
the
5V
point,
so
they
are
fully
digitized.
DI23
and
0124
clamp
the
PITCH
and
MOD
wheel
voltages
to
not
exceed
the
tolerance
of
U108.
For
example,
when
it
is
the
MOD
wheel's
turn
to
be
read,
the
CPU
(through
UI07)
sets
POT
MUX
address
lines
PM
I,
PM2
and
-PENO
high,
and
the
rest
low.
These
select
the
Y6
input
on
both
4067s,
but
enable
only
U108.
Vmux
now
equals
the
MOD
wheel
voltage
sent
across
TB10I
to
the
ADC
on
PCB
4.
See
Sheet
E.
Vmux
is
applied
to
the
non-inverting
input
of
U419.
The
output
of
the
comparator
is
polled
by
the
miscellaneous
input
driver,
U325,
(-CSI0,
see
Sheet
D,
SD600-3
2/2).
The
system
performs
a
seven-bit
successive
approximation
routine
to
convert
the
current
wheel
or
knob
position
to
a
digital
number
(the
PITCH
wheel
is
digitized
to
eight
bits).
This
is
done
by
first
setting
the
most
significant
(seventh)
DAC
bit
and
sampling
the
comparator
output.
If
the
comparator
output
is
high,
then
the
DAC
voltage
did
not
exceed
the
wheel
voltage,
so
that
bit
is
left
set.
It
then
tests
each
bit
and
leaves
each
one
set
which
does
not
cause
the
comparator
output
to
go
low.
This
takes
seven
(or
eight)
separate
output
operations.
(Refer
to
Figure
2-2.)
Because
the
front
panel
operates
from
a
minimum
4.95V
and
the
DAC
is
set
to
4.9V,
the
pots
are
gauranteed
to
have
maximum
conversion
range
(111
1111).
It
is
therefore
normal
for
pots
to
"max
out"
as
low
as
S
on
the
dial.
2-13
THE
SYNTHESIZER
How
the
microcomputer
system
processes
the
controls
into
CVs
and
switch
bits
has
been
described.
The
synthesizer
converts
these
control
signals
into
audio.
Each
of
six
voices
contains
two
CEM
3340
voltage-controlled
oscillators
(VCOs),
a
few
analog
switches
and
voltage-con
trolled
amplifiers
(VCAs),
and
a
CEM
3372.
The
voices
have
been
considerably
simplified
by
the
integration
of
voltage-controlled
mixer,
filter,
and
amplifier
functions
into
this
IC.
The
VCOs,
such
as
U42S
OSC
1A
(see
sheet
F),
operate
in
exponential
(as
opposed
to
linear)
control
mode,
scaled
at
1/2
volt
per
octave.
This
means
an
OSC
FREQ
CV
change
of
1/2V
produces
a
pitch
change
of
one
octave,
and
is
a
departure
from
our
previous
practice
of
using
lV/octave.
Doubling
the
sensitivity
of
the
oscillators
allows
the
basically
5-V
DAC
to
still
control
a
ten
(instead
of
five)
-octave
range.
Actually
OSC
A
and
B
range
nine
octaves,
following
up
to
2.5V
(five
octaves)
provided
by
the
keyboard
and
up
to
2V
(four
octaves)
provided
by
the
FREQUENCY
knobs.
The
VCO
itself
is
of
course
a
complex
of
other
circuits.
Basically,
the
summed
CV
drives
an
exponential
control
current
generator,
which
charges
an
external
timing
capacitor.
The
increasing
positive
charge
produces
the
ascending
portion
of
the
triangle
wave
by
direct
integration.
When
this
charge
reaches
a
specific
level,
a
comparator
switches-in
a
discharge
path
for
the
capacitor,
producing
the
descending
portion
of
the
triangle
wave.
The
sawtooth
is
obtained
from
the
triangle
via
another
comparator
and
switch.
The
pulse
wave
is
created
by
a
comparator
which
toggles
as
the
sawtooth
level
matches
the
pulse
width
CV
input.
TM600A
7/S3
2-15
