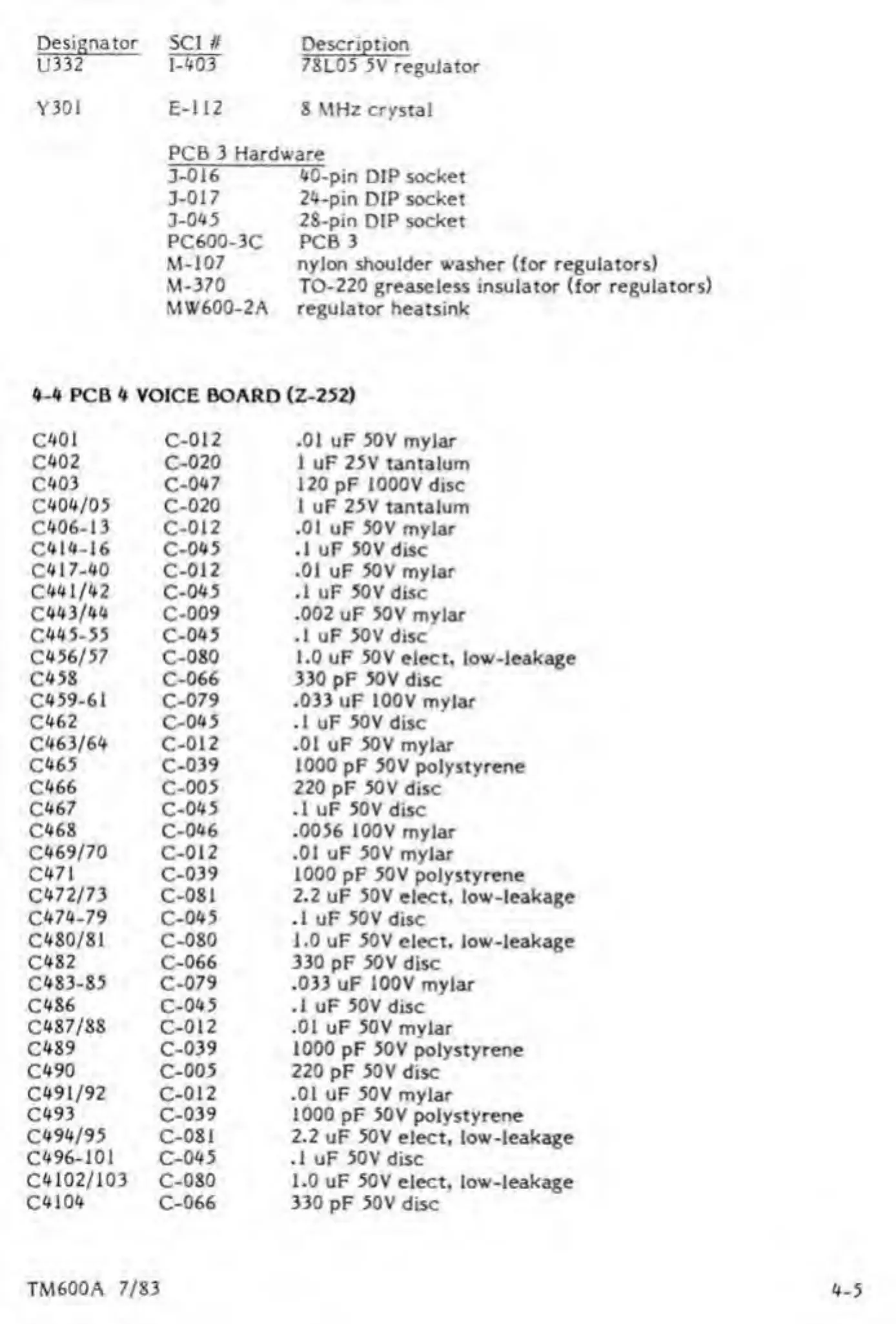

Sequential PROPHET-600 - Pcb 0 Voice Board

Designator SCI ft Description
U332 l-i*Q3 7 8L05 5V regulator
Y301 E-112 8 MHz crystal
PCB 3 Hardware
3-016 40-pin DIP socket
3-017 24-pin DIP socket
3-045 28-pin DIP socket
PC600-3C PCB 3
M-107 nylon shoulder washer (for regulators)
M-370 TO-220 greaseless insulator (for regulators)
MW600-2A regulator heatsink
4-4 PCB 4 VOICE BOARD (Z-252)
C401 C-012
.01 uF 50V mylar
C402
C-020 1 uF 25V tantalum
C403 C-047
120 pF 1000V disc
C404/05 C-020
I uF 25V tantalum
C406-13 C-012
.01 uF 50V mylar
C414-16 C-045
.1 uF 50V disc
C417-40 C-012
.01 uF 50V mylar
C441/42
C-045 .1 uF 50V disc
C443/44 C-009
.002 uF 50V mylar
C445-55 C-045
.1 uF 50V disc
C456/57 C-080
1.0 uF 50V elect, low-leakage
C458 C-066 330 pF 50V disc
C459-61
C-079 .033 uF 100V mylar
C462 C-045
.1 uF 50V disc
C463/64 C-012
.01 uF 50V mylar
C465 C-039
1000 pF 50V polystyrene
C466 C-005 220 pF 50V disc
C467 C-045
.1 uF 50V disc
C468 C-046
.0056 100V mylar
C469/70 C-012
.01 uF 50V mylar
C471
C-039 1000 pF 50V polystyrene
C472/73
C-081
2.2 uF 50V elect, low-leakage
C474-79 C-045
.1 uF 50V disc
C480/81 C-080
1.0 uF 50V elect, low-leakage
C482 C-066 330 pF 50V disc
C483-85 C-079
.033 uF 100V mylar
C486
C-045 .1 uF 50V disc
C487/88 C-012
.01 uF 50V mylar
C489 C-039
1000 pF 50V polystyrene
C490 C-005
220 pF 50V disc
C491/92 C-012
.01 uF 50V mylar
C493 C-039 1000 pF 50V polystyrene
C494/95 C-081
2.2 uF 50V elect, low-leakage
C496-101
C-045 .1 uF 50V disc
C4102/103 C-080
1.0 uF 50V elect, low-leakage
C4104
C-066
330 pF 50V disc
TM600A 7/83
4-5
