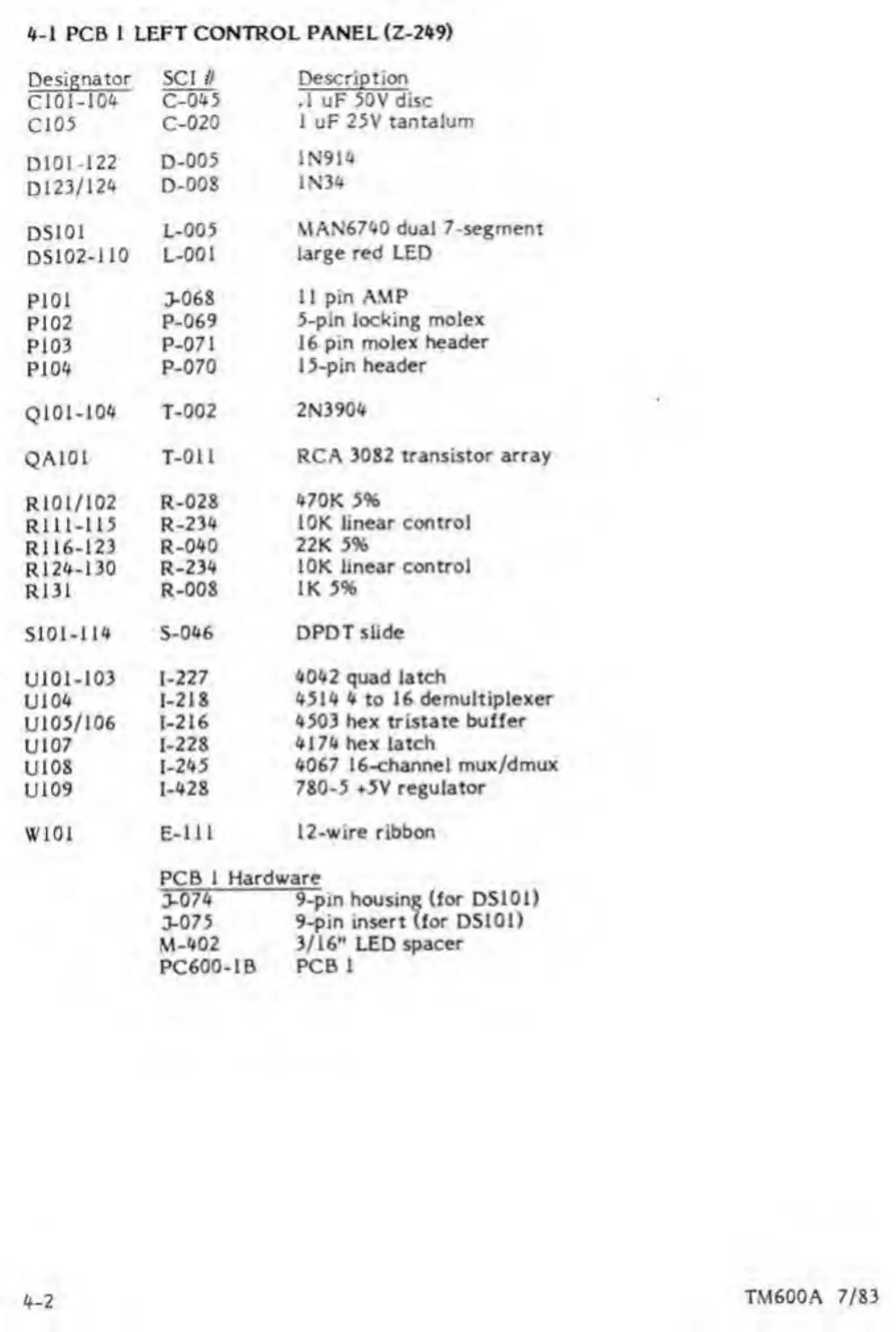

4-1 PCB 1 LEFT CONTROL PANEL (Z-249)
Designator SCI i\
Description
C101-104 C-045 .1 uF 50V disc
C105
C-020
1 uF 25V tantalum
DIO!-122
D-005
1N914
D123/124
D-008
1N34
DS101
L-005
MAN6740 dual 7-segment
DS102-110
L-001
large red LED
P101
3-068
11 pin AMP
P102
P-069
5-pin locking molex
P103
P-071
16 pin molex header
PI 04
P-070
15-pin header
Qi01-104
T-002
2N3904
QA101
T-011
RCA 3082 transistor array
R101/102
R-028 470K 5%
R111-115
R-234 10K linear control
R116-123 R-040
22K 5%
R124-130
R-234
10K linear control
R131
R-008
IK 5%
S101-114
S-046 DPDT slide
U101-103
1-227 4042 quad latch
U104
1-218
4514 4 to 16 demultiplexer
U105/106
1-216
4503 hex tristate buffer
U107 1-228
4174 hex latch
U108
1-245
4067 16-channel mux/dmux
U109
1-428 780-5 *5V regulator
W101 E-l 11
12-wire ribbon
PCB 1
Hardware
3-074 9-pin housing (for DS101)
3-075
9-pin insert (for DS101)
M-402 3/16" LED spacer
PC600-
IB PCB 1
