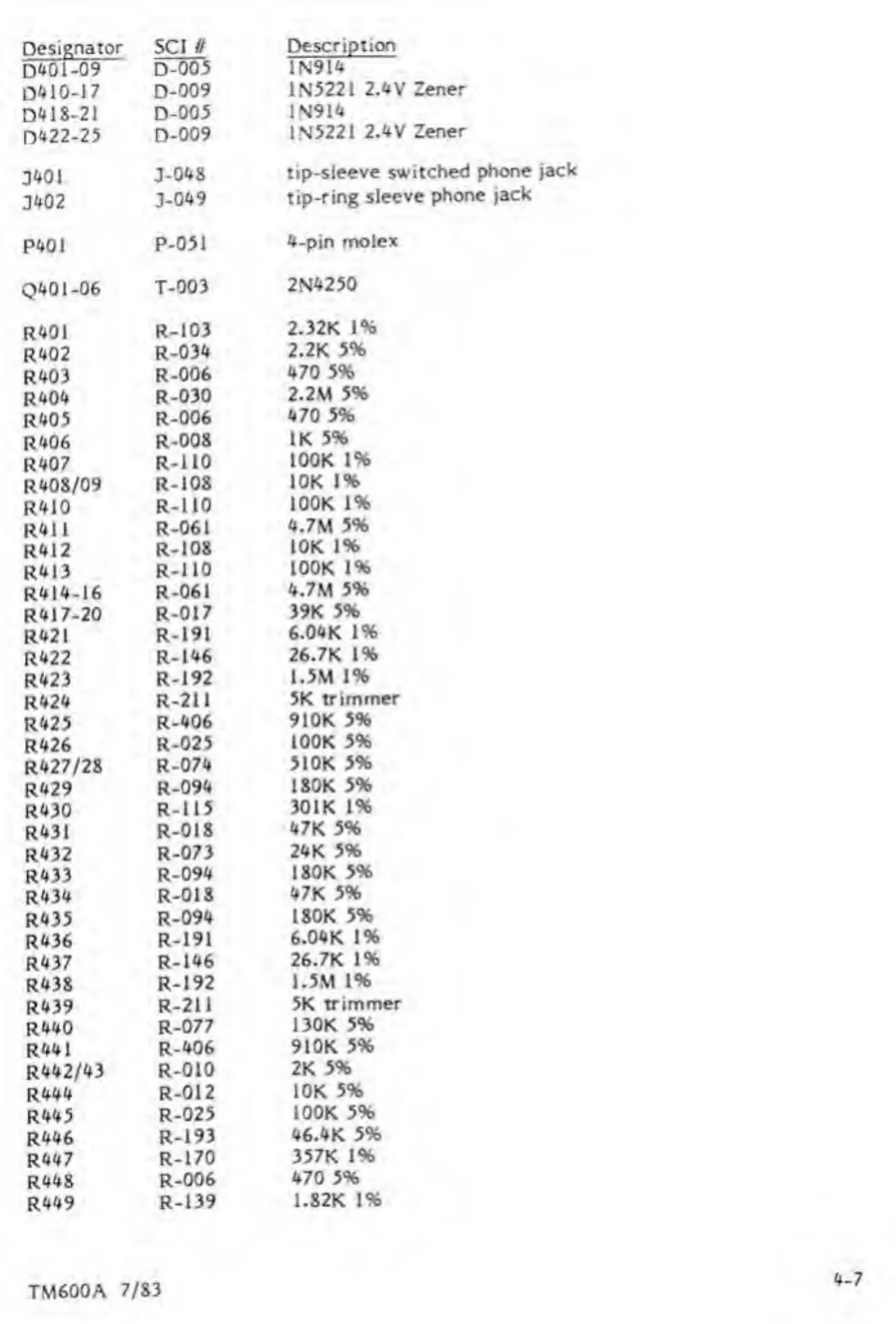

Sequential PROPHET-600 - Page 65

Designator SCI //
Description
D401-09
D-005
1N9I4
D410-17
D-009
1N5221 2.4V Zener
D418-21
D-005
1N914
D422-25
D-009
1N5221 2.4V Zener
3401
3-048
tip-sleeve switched phone jack
3402
3-049
tip-ring sleeve phone jack
P401
P-051
4-pin molex
Q401-06
T-003
2N4250
R401
R-103
2.32K 1%
R402
R-034
2.2K 5%
R403
R-006
470 5%
R404
R-030
2.2M 5%
R405
R-006
470 5%
R406
R-008
IK 5%
R407
R-110
I00K 1%
R408/09
R-108
10K 1%
R410
R-110
100K 1%
R411
R-061
4.7M 5%
R4I2
R-108
10K 1%
R413
R-110
100K 1%
R414-16
R-061
4.7M 5%
R417-20
R-017
39K 5%
R421
R-191
6.04K 1%
R422
R-146 26.7K 1%
R423
R-192
1.5M 1%
R424 R-211
5K trimmer
R425
R-406
910K 5%
R426
R-025
100K 596
R427/28
R-074 510K 596
R429
R-094 180K 5%
R430
R-115
30 IK 1%
R431
R-018
47K 596
R432
R-073
24K 5%
R433
R-094 180K 5%
R434
R-018
47K 5%
R435
R-094
180K 5%
R436
R-191
6.04K 1%
R437
R-146 26.7K 1%
R438
R-192
1.5M 1%
R439
R-211
5K trimmer
R440
R-077
130K 5%
R441
R-406
910K 596
R442/43
R-010
2K 5%
R444
R-012
10K 5%
R445
R-025
100K 5%
R446
R-193
46.4K 5%
R447
R-170
357K 1%
R448
R-006
470 5%
R449
R-139 1.82K 1%
