Serpent 710 - Shock Length and Damping Adjustment

18
Front Shocks: short shocks and springs
Rear Shocks: long shocks and springs
Hardest
Full CW
Softest
Full CCW
Damping adjustment
Pull the shock shaft all the way out, turn
slightly to lock it in the shock body.
Adjust the shock damping by rotating
shock shaft CW or CCW to one of the
four positions. Each position can be felt by
a slight “click.”
IMPORTANT!
Each pair of front and rear
shocks must have the same damping set
-
ting.
Shock length adjustment
Check the length of the shocks in the
extended, fully locked position.
Front shocks: 67.5mm
Rear shocks: 76.5mm
Adjust shock length with the ball-
joint.
IMPORTANT!
Each pair of front and
rear shocks must be the same length.
Line up
notch

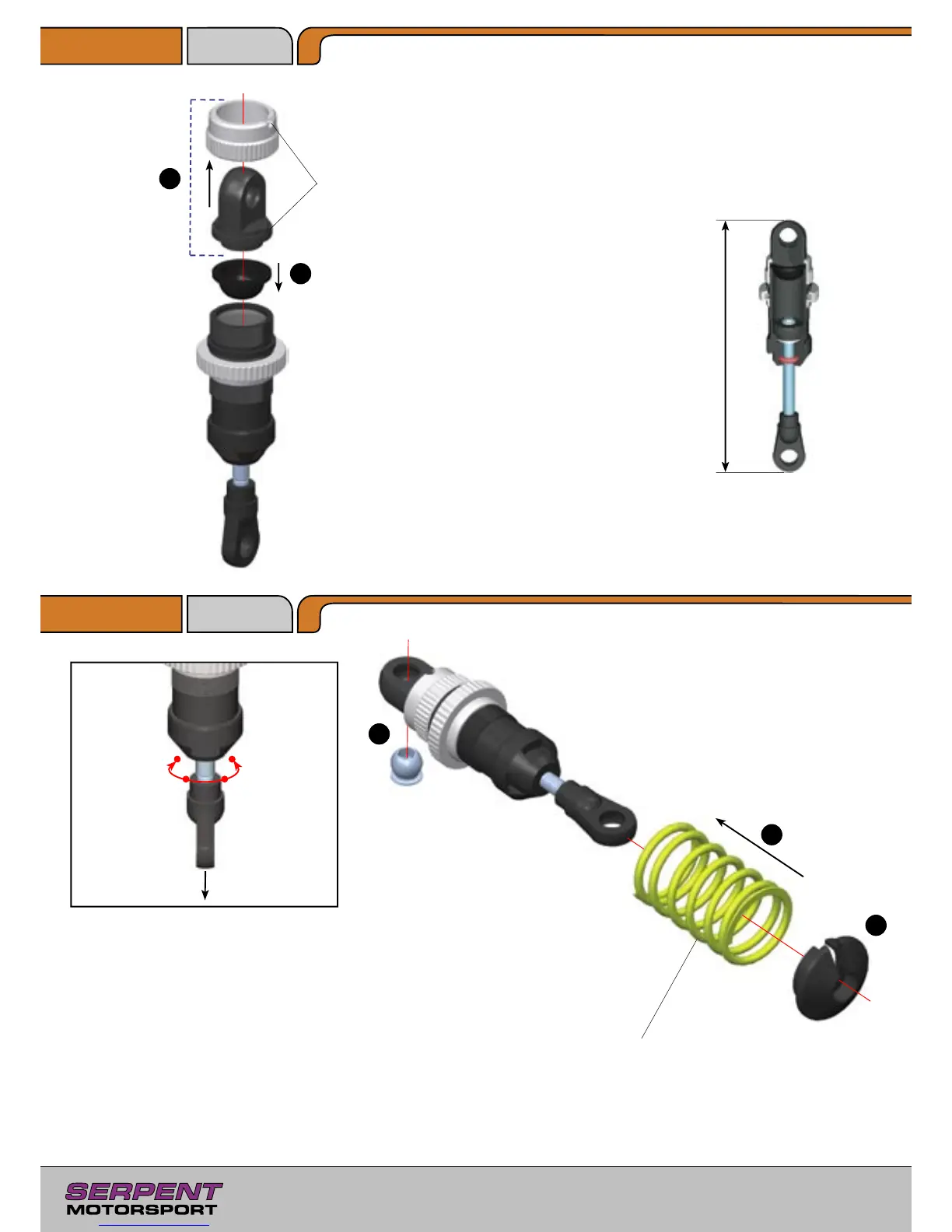

Step 4.7
Step 4.8
1
2
2
3
2 Holes
3 Holes4 Holes
5 Holes
1
Press in pivotball from
side opposite notch in top
shock mount.
