Installation Instructions Section 2
2-2
Part Number 020003996 4/12

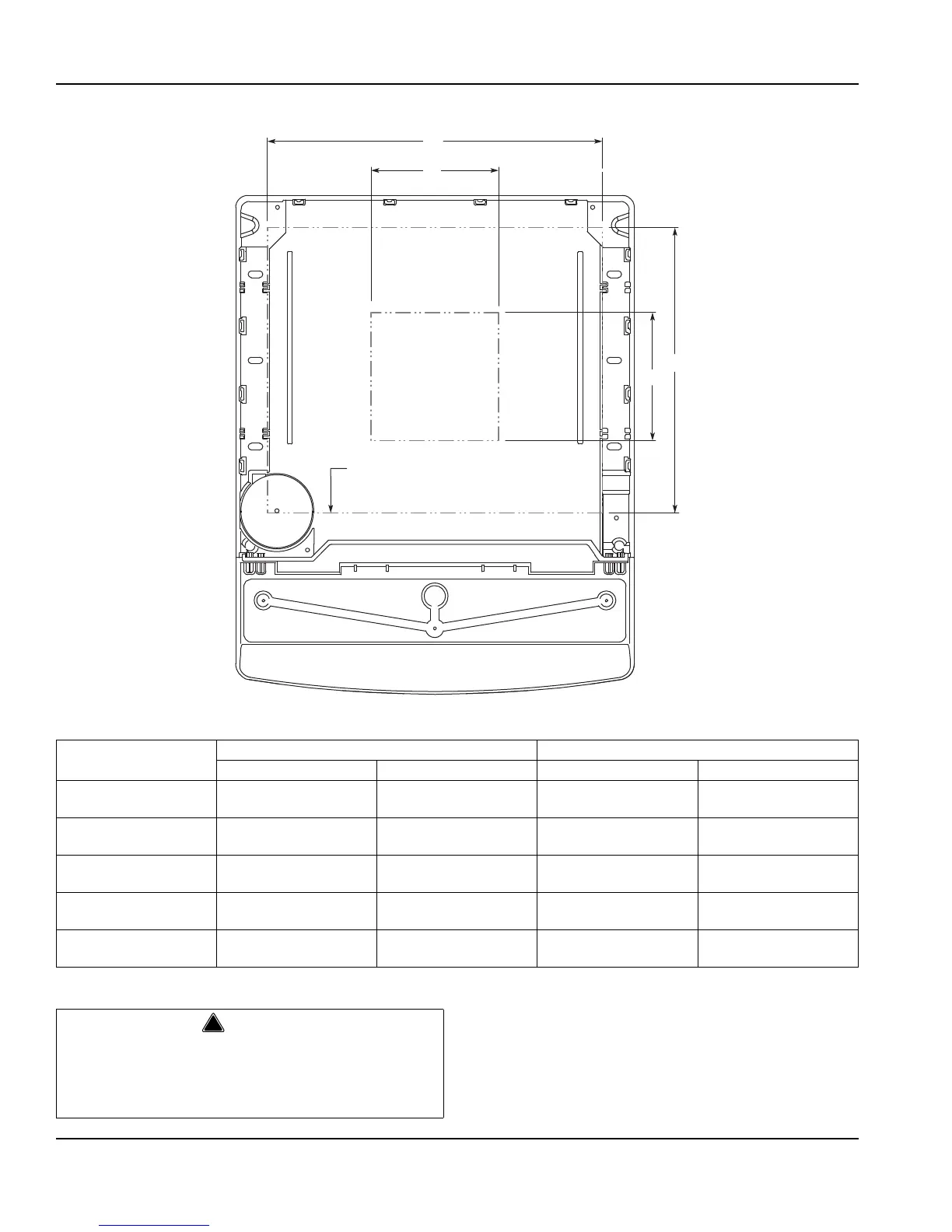

Footprints
* Includes NGF
C
A
D
B
Minimum Area
for Cutout
Maximum Area
for Cutout
NOTE: Footprint for S/SV-175 shown.
S & SV
Maximum Minimum
ABCD
150 19.00"
(48.3 cm)
17.81"
(45.2 cm)
8.00"
(20.3 cm)
8.00"
(20.3 cm)
175 21.00"
(53.3 cm)
17.81"
(45.2 cm)
8.00"
(20.3 cm)
8.00"
(20.3 cm)
200 26.00"
(66.0 cm)
17.81"
(45.2 cm)
8.00"
(20.3 cm)
8.00"
(20.3 cm)
250* 26.00"
(66.0 cm)
17.81"
(45.2 cm)
8.00"
(20.3 cm)
8.00"
(20.3 cm)
250QD* 26.00"
(66.0 cm)
17.81"
(45.2 cm)
8.00"
(20.3 cm)
8.00"
(20.3 cm)
!
Warning
Cutting the countertop may decrease its strength.
Counter must be braced to support the dispenser
countertop weight plus ice storage capacity and
weight of ice machine, if applicable.
