Servend S Series - Section 2 Installation Instructions; General Installation Guidelines; Unit Dimensions and Measurements

Part Number 020003996 4/12 2-1
Section 2
Installation Instructions
General
These instructions are provided to assist the qualified
installer. Contact your Manitowoc Beverage Equipment
Service Agent or call Manitowoc Beverage Equipment
for information regarding start-up services.

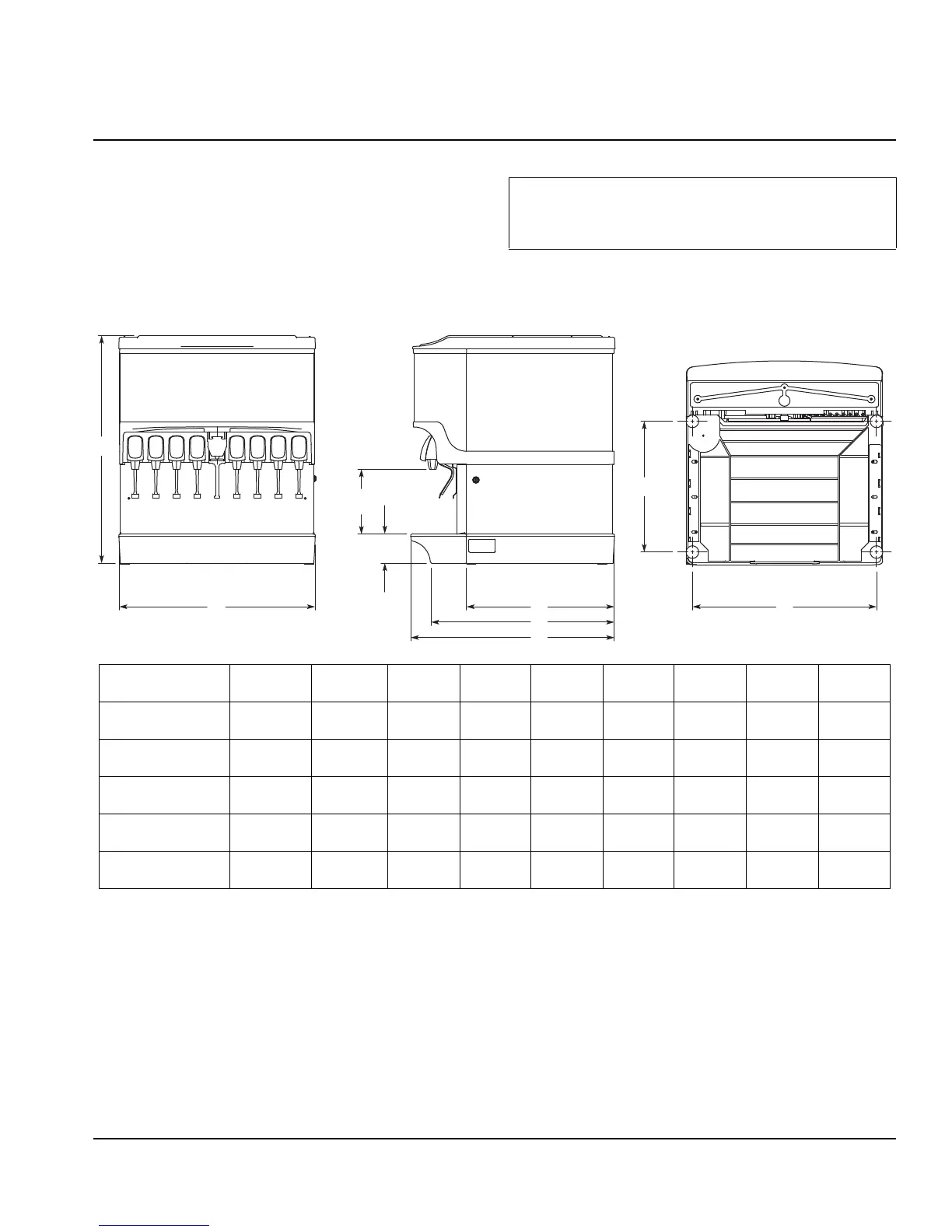

Dimensions
Important
Failure to follow these installation guidelines may
affect warranty coverage.
Model/Ice
Capacity
ABCDEFGHI
S/SV-150 34.81"
(88.4 cm)
23.00"
(58.4 cm)
9.94"
(17.6 cm)
4.44"
(11.3 cm)
22.63"
(57.5 cm)
28.00"
(71.1 cm)
31.13"
(79.1 cm)
20.00"
(50.8 cm)
20.44"
(51.9 cm)
S/SV-175 34.81"
(88.4 cm)
25.00"
(63.5 cm)
9.94"
(17.6 cm)
4.44"
(11.3 cm)
22.63"
(57.5 cm)
28.00"
(71.1 cm)
31.13"
(79.1 cm)
20.00"
(50.8 cm)
22.44"
(57.0 cm)
S/SV-200 34.81"
(88.4 cm)
30.00"
(76.2 cm)
9.94"
(17.6 cm)
4.44"
(11.3 cm)
22.63"
(57.5 cm)
28.00"
(71.1 cm)
31.13"
(79.1 cm)
20.00"
(50.8 cm)
27.44"
(69.7 cm)
S/SV/NGF-250 39.81"
(101.1 cm)
30.00"
(76.2 cm)
9.94"
(17.6 cm)
4.44"
(11.3 cm)
22.63"
(57.5 cm)
28.00"
(71.1 cm)
31.13"
(79.1 cm)
20.00"
(50.8 cm)
27.44"
(69.7 cm)
S/SV/NGF-250QD 39.88"
(101.3 cm)
30.00"
(76.2 cm)
9.94"
(17.6 cm)
4.44"
(11.3 cm)
22.63"
(57.5 cm)
28.00"
(71.1 cm)
31.13"
(79.1 cm)
20.00"
(50.8 cm)
27.44"
(69.7 cm)
B
C
D
G
F
E
I
H
A
