Operation Section 3
3-6
Part Number 020003996 4/12
FIGAL SYSTEM
Figal refers to the stainless steel tanks of pre-mix
beverage or post-mix syrup. A small CO
2
tank pushes
the beverage out of the figal tank.
FIGAL TANKS
The stainless steel Figal beverage tanks are easy to
store and connect. When using the Figal tanks:
• Use a gas connector for the inlet fitting of the tank.
• Use a syrup connector for the outlet fitting of the
tank.
• If more than one Figal tank is connected in series,
when changing tanks, remove the tank closest to the
original gas inlet while adding the new tank to the
connector closest to the syrup outlet.
Most Figal tanks have a self-closing valve on the tank as
well as the gas and syrup connectors. This allows the
operator of the system to change tanks without having to
shut down the entire system. With this type of connector,
push down on the connector while pulling up on the snap
ring around the opening of the connector. Then simply
pull the connector off the tank.
AGITATION TIMER
The timer is non-adjustable and is set to agitate the ice
for 3 seconds every 3.5 hours. Activating the dispenser
will reset the timer. After 3.5 hours of non-use, the timer
will energize the dispenser motor.
The LED tells the technician in which mode the timer is
operating. Rather than a jumper pin, this timer has a
female spade connector that must be connected to
terminal number 6.
When this jumper is in place, the LED will blink at
one-second intervals, this is the run mode.
When the jumper is open, the LED will flash every
0.4 second. This is the test mode and the timer will cycle
every 55 seconds in test mode. If the timer is left in test
mode, it will automatically reset to run mode.

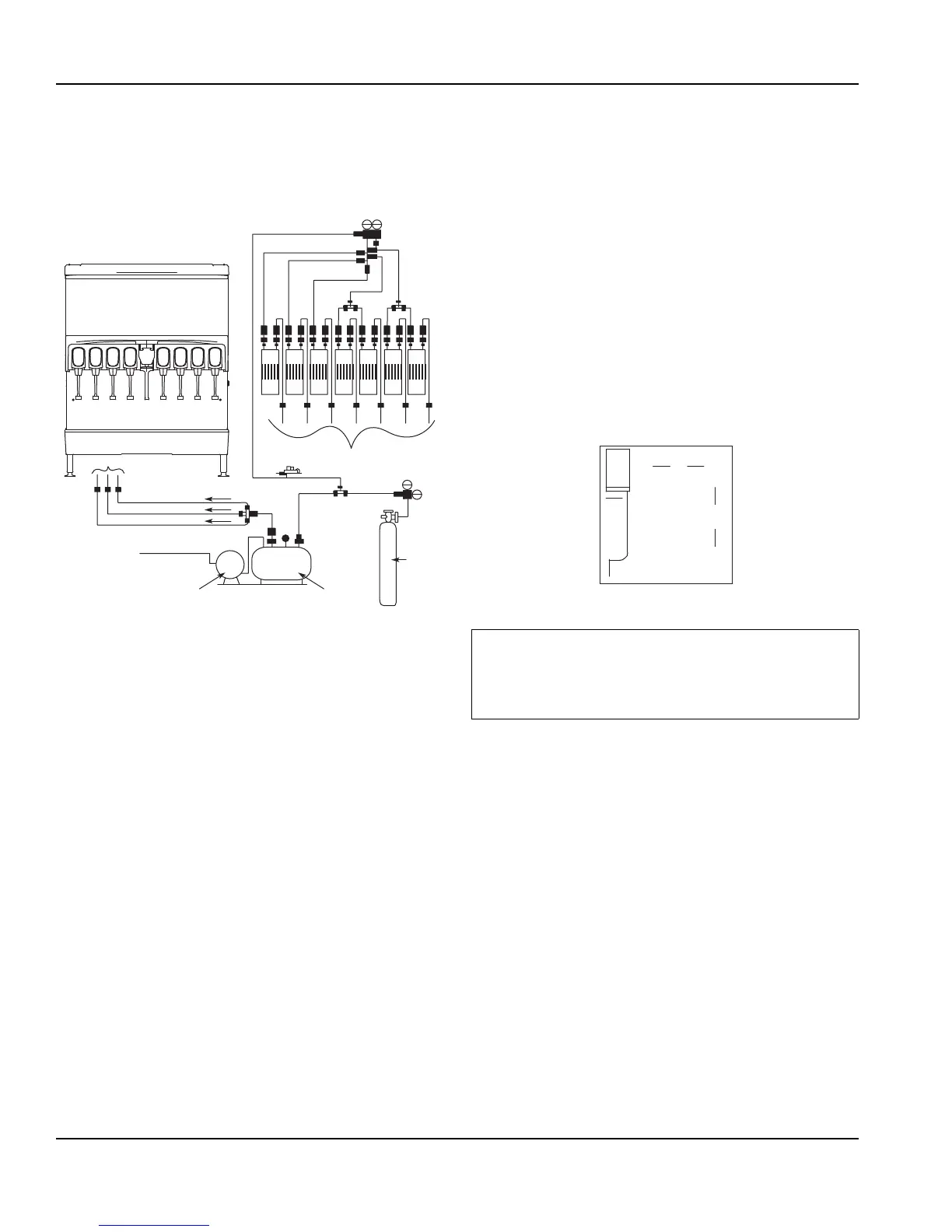

Agitation Timer
Carbonated Water to Dispenser
3/8 Syrup Lines to Dispenser
Incoming
Water
Carbonator
100 psi
CO
2
Soda Water
Pump
quickdraw ice & beverage dispensers do not have
an agitation timer and need to be left in Auto Mode
at night so periodic ice agitation takes place.
