Section 2 Installation Instructions
Part Number 020003996 4/12 2-15
Step by Step Installation
GENERAL
S/SV/SVI/NGF Series dispensers have a stainless steel
cabinet and lighted merchandiser standard.
Beverage valves, coldplate connections, drain
connections and electrical components are front
serviceable.

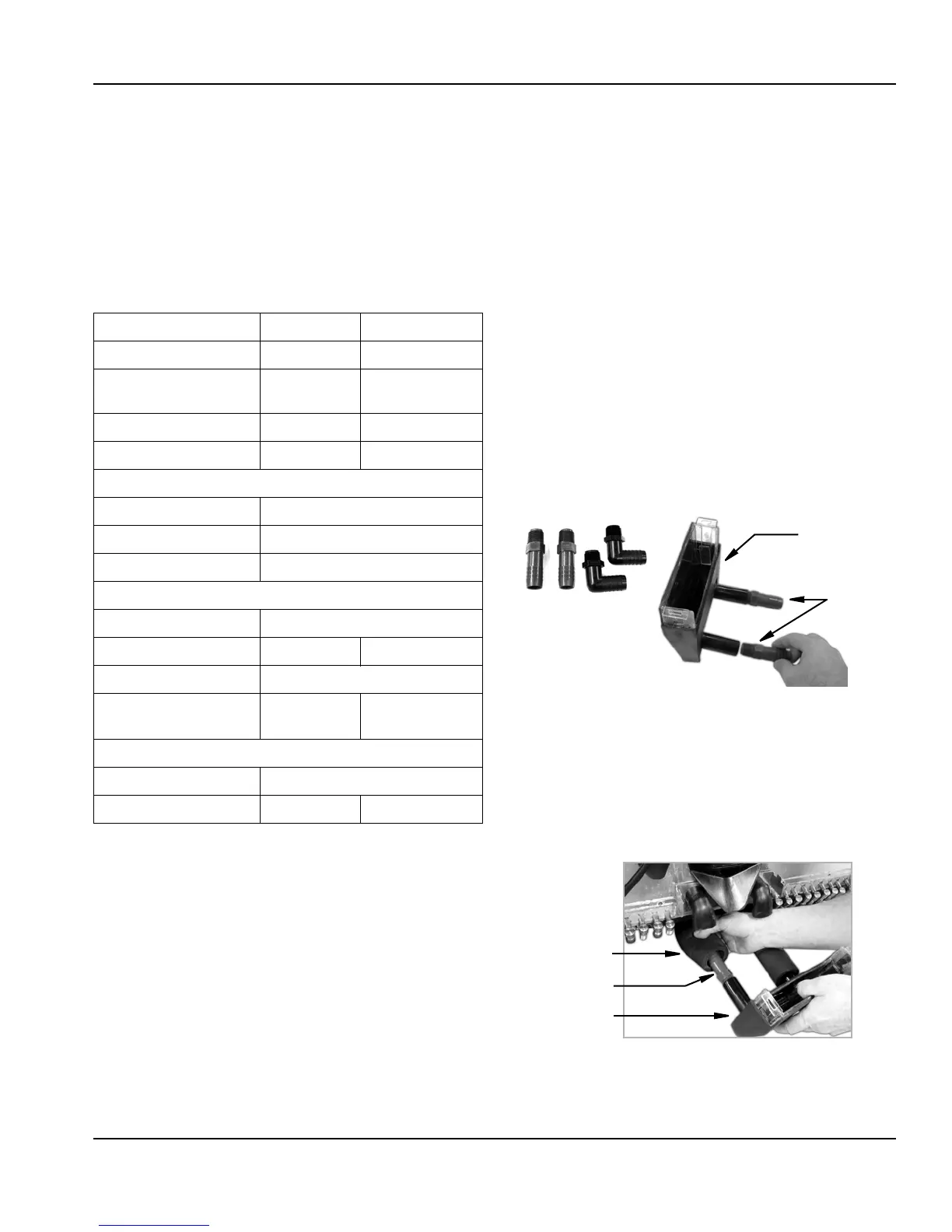

SPECIFICATIONS CHART
* This is the optimal pressure. When the foam is too high, decrease
the pressure; when spitting/popping is an issue, increase the
pressure.
UNIT INSTALLATION
1. Place the dispenser in the desired location.
2. Run the beverage lines and water lines; make sure
to install the water connections to the proper inlets.
Connection “A” comes from the brass carbonator
pump and connection “B” is your plain water supply.
Install Plumbing Drains & Insulate
3. Connect Drain Kit to drain pan (See Drains Section 2-14).
4. Extended splash panel units do the following:
A. Remove the extended splash panel from the unit
by removing the two (2) phillips head screws
holding it in place.
B. Determine drain setup and screw either the 90°
or straight line drain fittings into the collector box
included with the drain kit
(See Drains Section 2-14).
NOTE: Depending on the drain setup connect the straight
fittings to the collector box if the drain lines are to run straight
back underneath the unit or the 90° fittings if the drain lines
run down through the counter top.
C. Using the provided radiator clamps connect and
secure the drain lines to the collector box fittings
with a standard screwdriver or 5/16 nut driver.
Min. Max
Water pressure 40 psi 55 psi
Ambient temperature 40°F
(4°C)
105°F
(41°C)
CO
2
pressure 40 psi 50 psi
Electrical 115V/60 Hz/1 230V/50-60 Hz/1
Pre-mix pressure
Normal 60 psi*
Diet 40 psi*
B-I-B 60 psi or according to line run
Carbonation
Cold 75 psi
Ambient 90 psi 105 psi
quickdraw CO
2
supply 75 psig
quickdraw regulator
valve
40 psig 50 psig
quickdraw Carbonation
Cold 75 psi
Ambient 90 psi 100 psi
Collector
Box
Straight Fittings 90° Fittings
Drain Line
Fittings
Drain Line
Fitting
Drain Line
Collector
Box
