Section 3 Operation
Part Number 020003996 4/12 3-7
Operation Checks and Adjustments

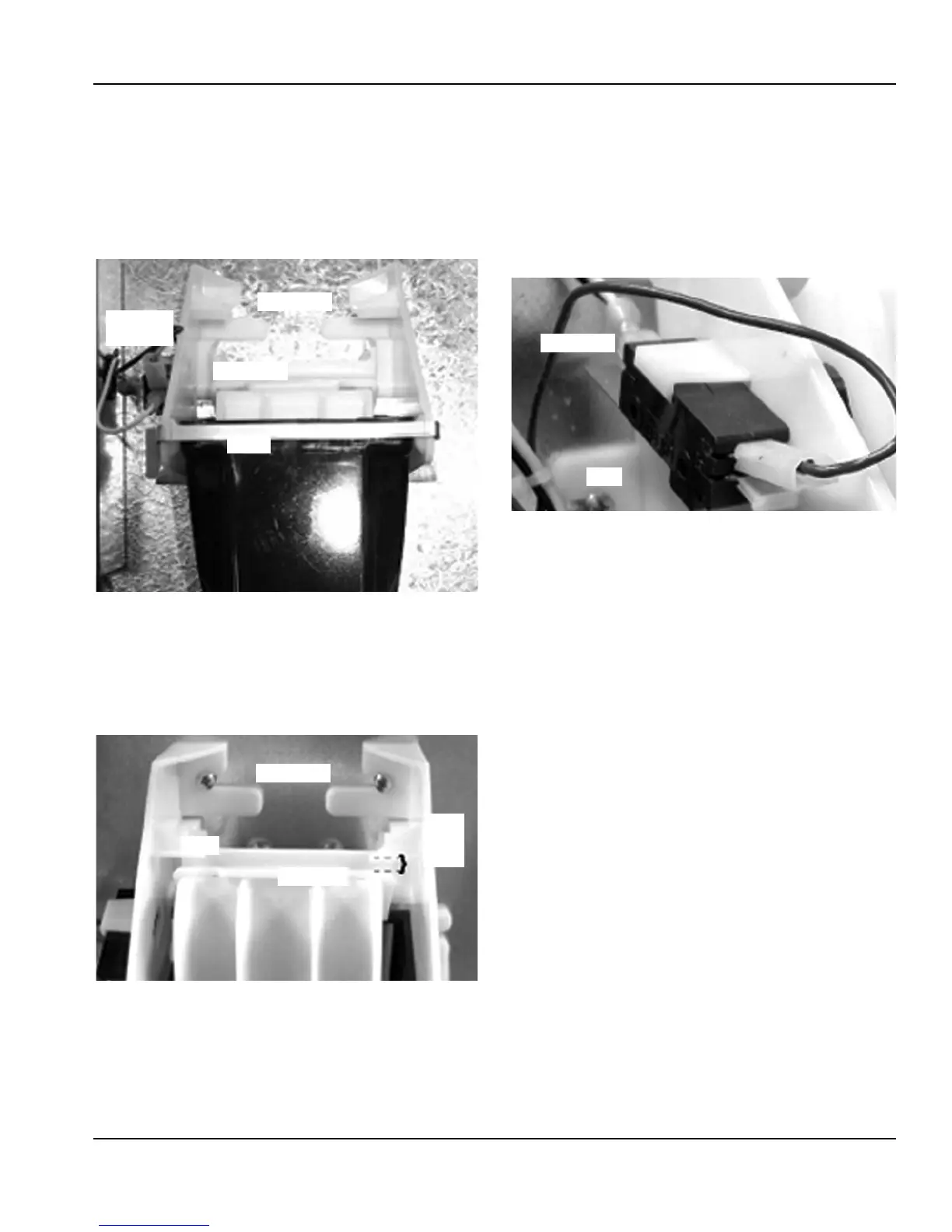

ROCKING CHUTE ICE DELIVERY SWITCH ADJUSTMENT
To properly adjust the switch, first unplug the power cord
to the unit then remove the merchandiser. This will give
you access to the ice delivery switch located on the left
side of the rocking chute.
Begin by observing the chute by slowly pushing against
the rocking chute. When the ice delivery switch clicks,
measure the distance from the door stops on the rocking
chute bracket to the door. The distance between the two
must be no more than 1/4" (0.64 cm), but no less than
1/16" (0.16 cm).
The left side of the rocking chute has a tab that pushes
up on the ice delivery switch. To adjust it, use needle
nose pliers and bend the arm of the switch up or down in
order to change the point where the tab makes contact
with the switch arm.
Door Stops
Door Lock
Door
Ice Delivery
Switch
Door Stops
Door
Door Lock
1/16"
to
1/4"
