Servend S Series - Sensor Beam Operation and Adjustment; Sensor Beam Sequence and Adjustment

Section 3 Operation
Part Number 020003996 4/12 3-9
SENSOR BEAM
Sensor Beam Sequence of Operation
1. Ice fills the ice chute until it interrupts the beam.
2. Paddlewheel stops.
3. Ready for the next portioned dispense.
Adjustment
1. Loosen screws on left & right side of assembly.
2. Adjust Sensor board sensor eyes to the center of the
rectangular window on ice chamber.
3. Tighten screws on left & right side of assembly.
4. Test the Quick Draw.

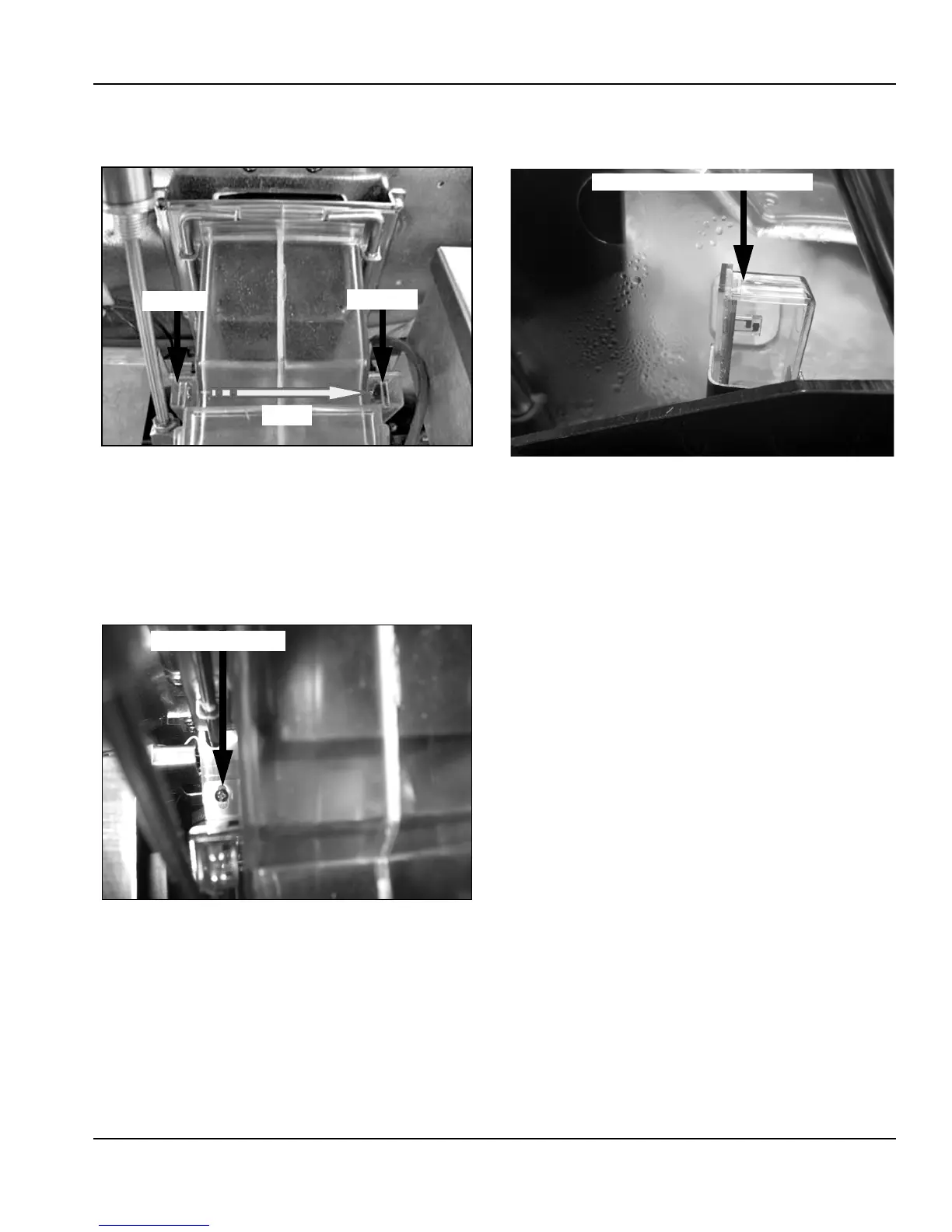

Emitter
Receiver
Beam
Left Adjustment Screw
Rectangular Window in Ice Chamber
