Sesamo smart PRO - Articulated Arm: Left Wing Opening Fixing

24
SESAMO SMARTPRO

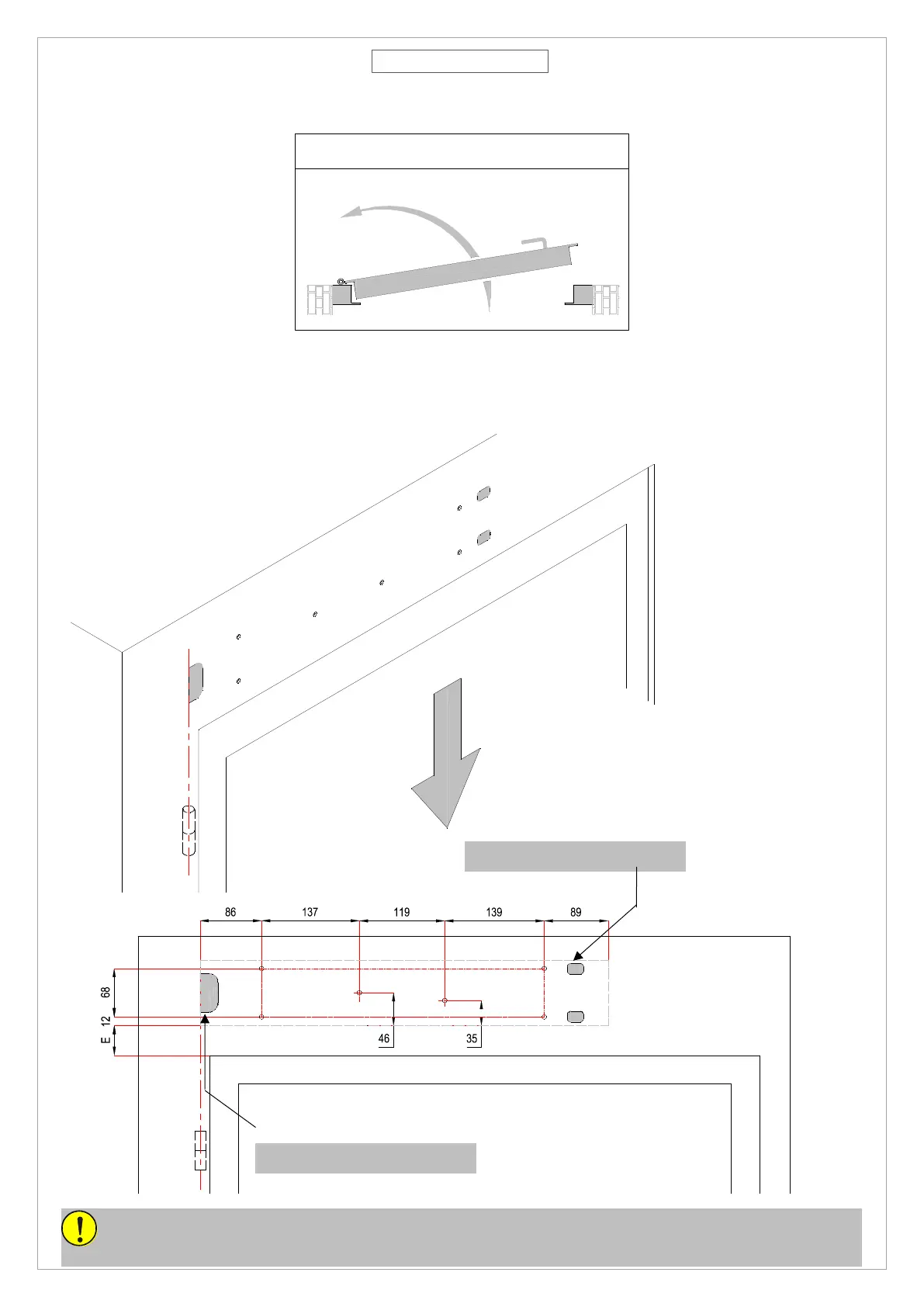

WING OPENING LEFT - dimension and fixing of the automatism:
Use the adhesive template for the fixing holes. The Holes must be adequate for the type of screw
used. For the passage of cables, make holes in the areas indicated in the image.
Opening left
Slot for cables passage
Slot for cables passage
For correct positioning, always use the axis of the hinges of the door as main reference.
