22. SAFETY SENSORS AND SAFETY DEVICES INSTALLATION
Smart Pro control board allows to connect safety sensors both in monitoring EN16005 both in standard
configuration.
It is installer's responsibility to evaluate which and how many sensors must be used

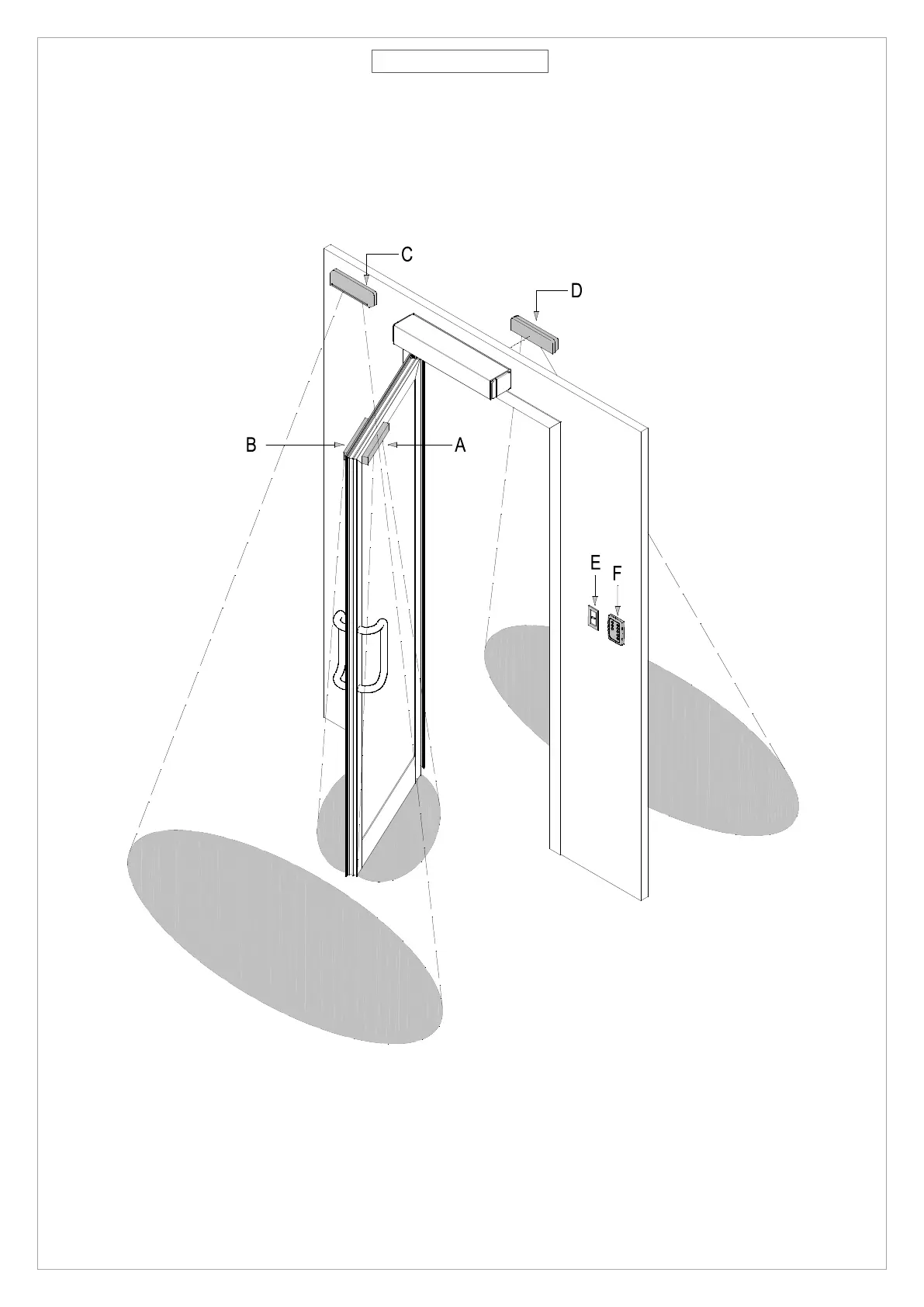

A= Safety sensor in closing
B= Safety sensor in opening
C= Internal opening sensor
D= External opening sensor
E= Main power supply switch
F= Logic selector
