SESAMO SMARTPRO

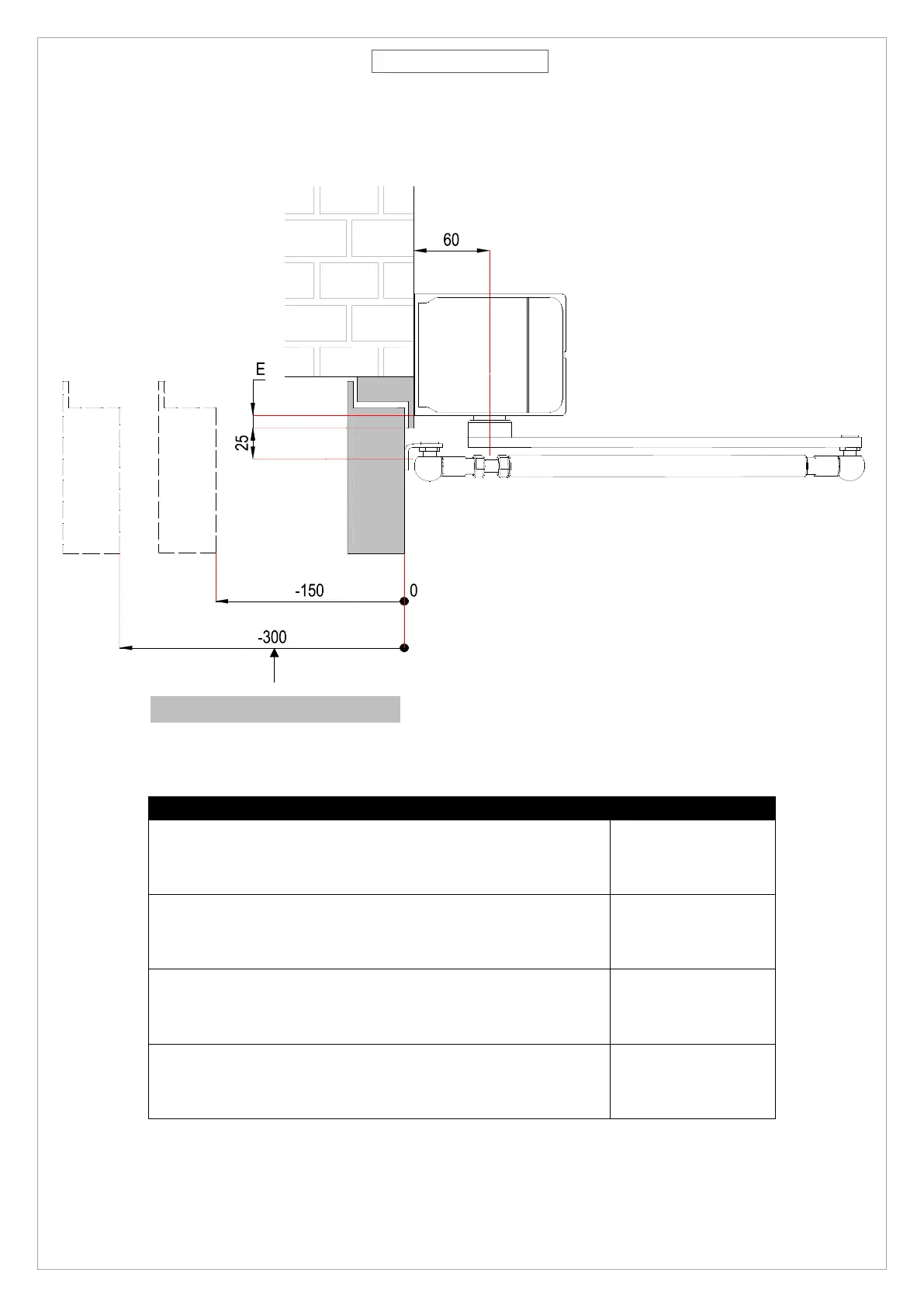

12. ARTICULATED ARM INSTALLATION (PUSH)
The articulated arm is used for doors that open on the opposite side of the automation.
Axle extensions
Position “E”
L=30mm
(Standard already welded to the arm)
12mm
L=50mm
(Standard + Kit axle extensions H=50mm)
32mm
L=70mm
(Standard + Kit axle extensions H=70mm)
52mm
L=90mm
(Standard + Kit axle extensions H=90mm)
72mm
Long articulated push arm
