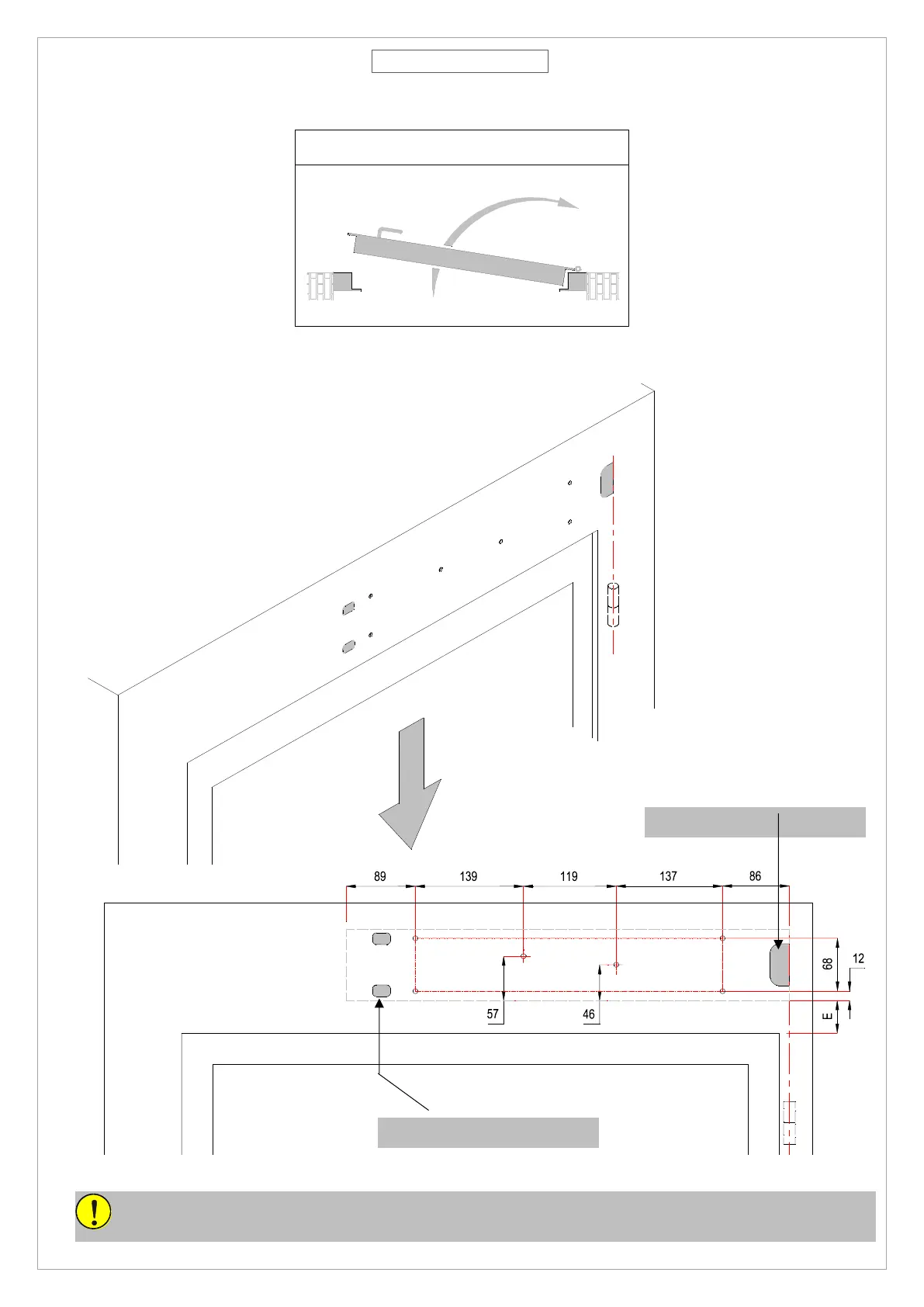

WING OPENING RIGHT - dimension and fixing of the automatism:
Use the adhesive template for the fixing holes. The Holes must be adequate for the type of screw
used. For the passage of cables, make holes in the areas indicated in the image
Opening right
Slot for cables passage
Slot for cables passage
For correct positioning, always use the axis of the hinges of the door as main reference.
