Minimum preload – torque value of about 10,0 N/m:
if you go in this direction, starting from door on closed position (max. preload), arm must be released on the
tip by removing the joint (see detail) after the part NON telescopic (to one fixed to the operator) it will be
rotated in the opening direction step of n.6 teeth and screwed again to the operator. Once set the
telescopic rod (fixed to the door) and the fixed part of the arm they will have to be re-bound by remounting
the joint.

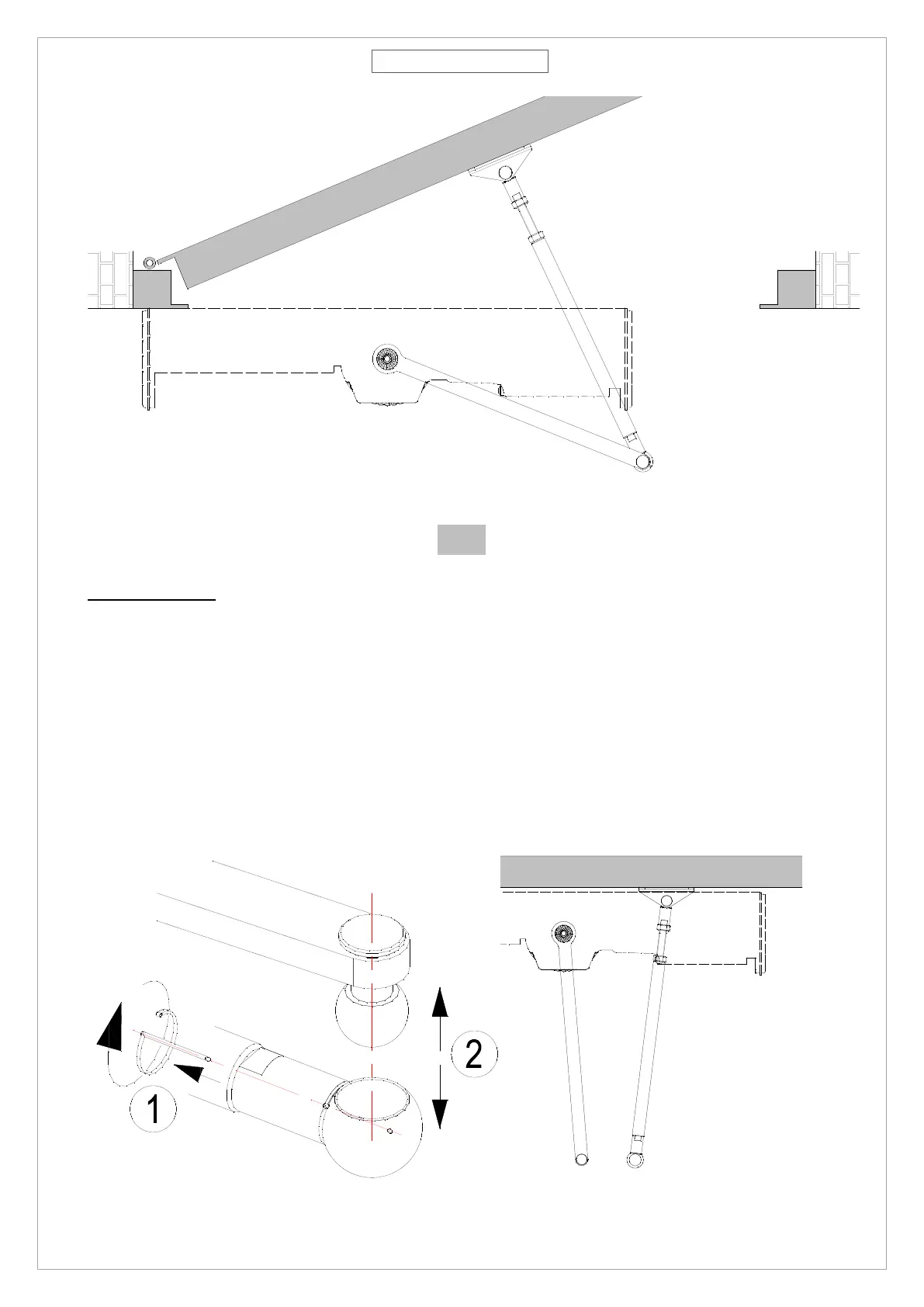

At the end of this operation you will find the door slightly open as indicated in the picture (BLOCKED BY THE
SPRING CONNECTION SCREW).
