door remains closed and none external peripheral can be
detected (including multi-logic selectors).
Signal must be short-circuited with COM if no devices are
connected.
Power supply
15Vdc – 12W Max*
Power supply output for sensor or other opening devices
Opening signal. External devices to open the door can be
connected. The closing of this signal command the opening
of the doors. This signal is monitored both in logic 2 Radar
both in logic 1 Radar
Opening signal. External devices to open the door can be
connected. The closing of this signal command the opening
of the doors. This signal is monitored only in logic 2 Radar.
Output for power supply of electric lock 12Vdc o 24Vdc Max
500mA.
ATTENTION!! set according dedicated paragraph
Connector of the
selector switch

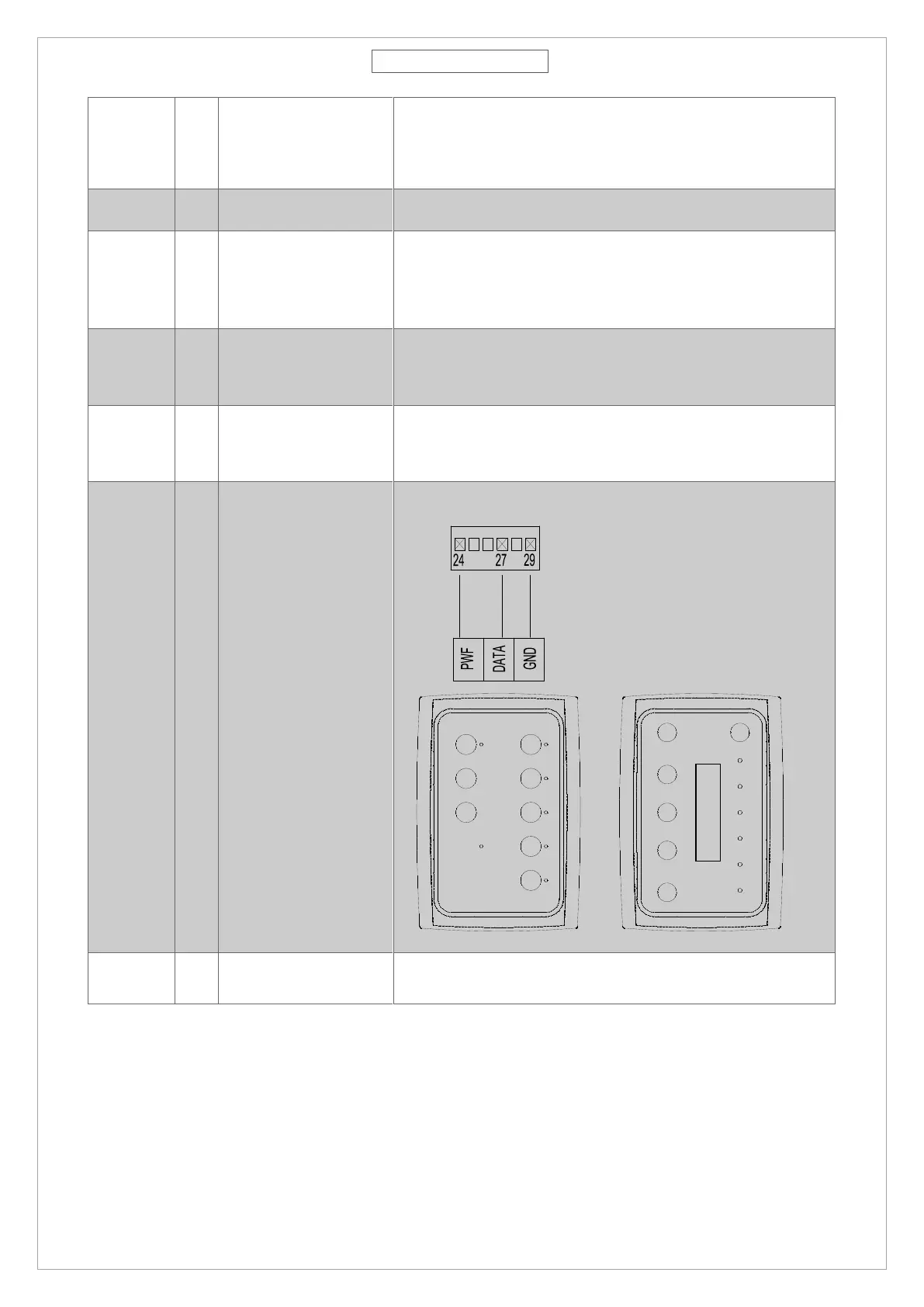

Wiring basic/advanced selector.
Connector of the
selector switches
Predisposition for selector wiring NON-AVAILABLE
*Total power available to be divided on all the power outputs.
