Sesamo smart PRO - Wiring Diagrams for Monitored Safety Sensors

52
SESAMO SMARTPRO
Safety sensors A e B are monitored sensors, for this type of sensors the installations options can be:
• Only safety sensor A in closing
• Only safety sensor B in opening
• Both safety sensors in closing and opening A e B.

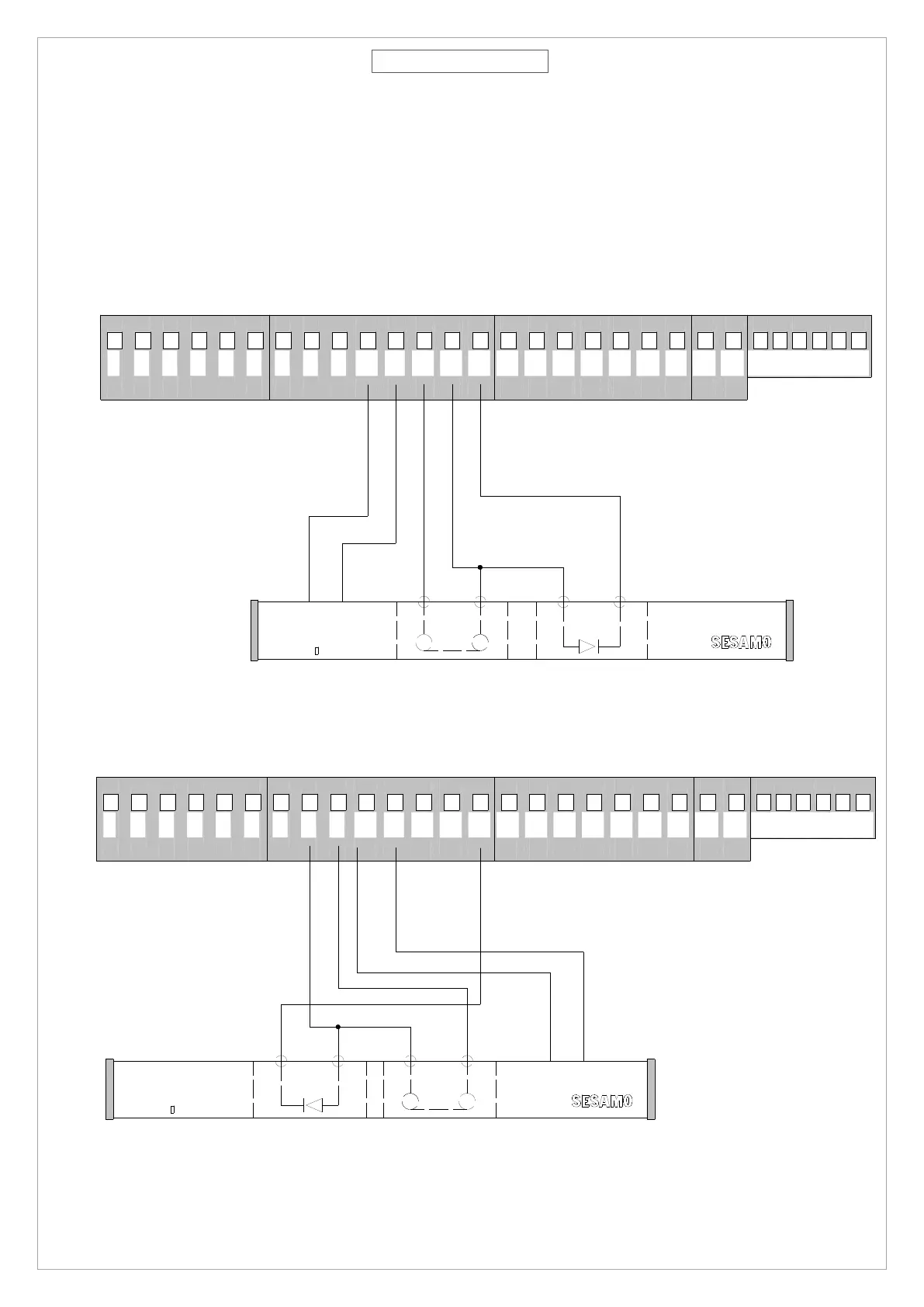

Wiring diagram sensor in closing A


 



   
 



 

  
 


   









Wiring diagram sensor in opening B


 



   
 



 

  
 


   









