SESAMO SMARTPRO
ASSEMBLING CARTER KIT (optional):
Measure the interaxis between hinges “I” to obtain cuts measurements of the plate and cover according to
the following formula.
CUTS base/cover = I-1145mm

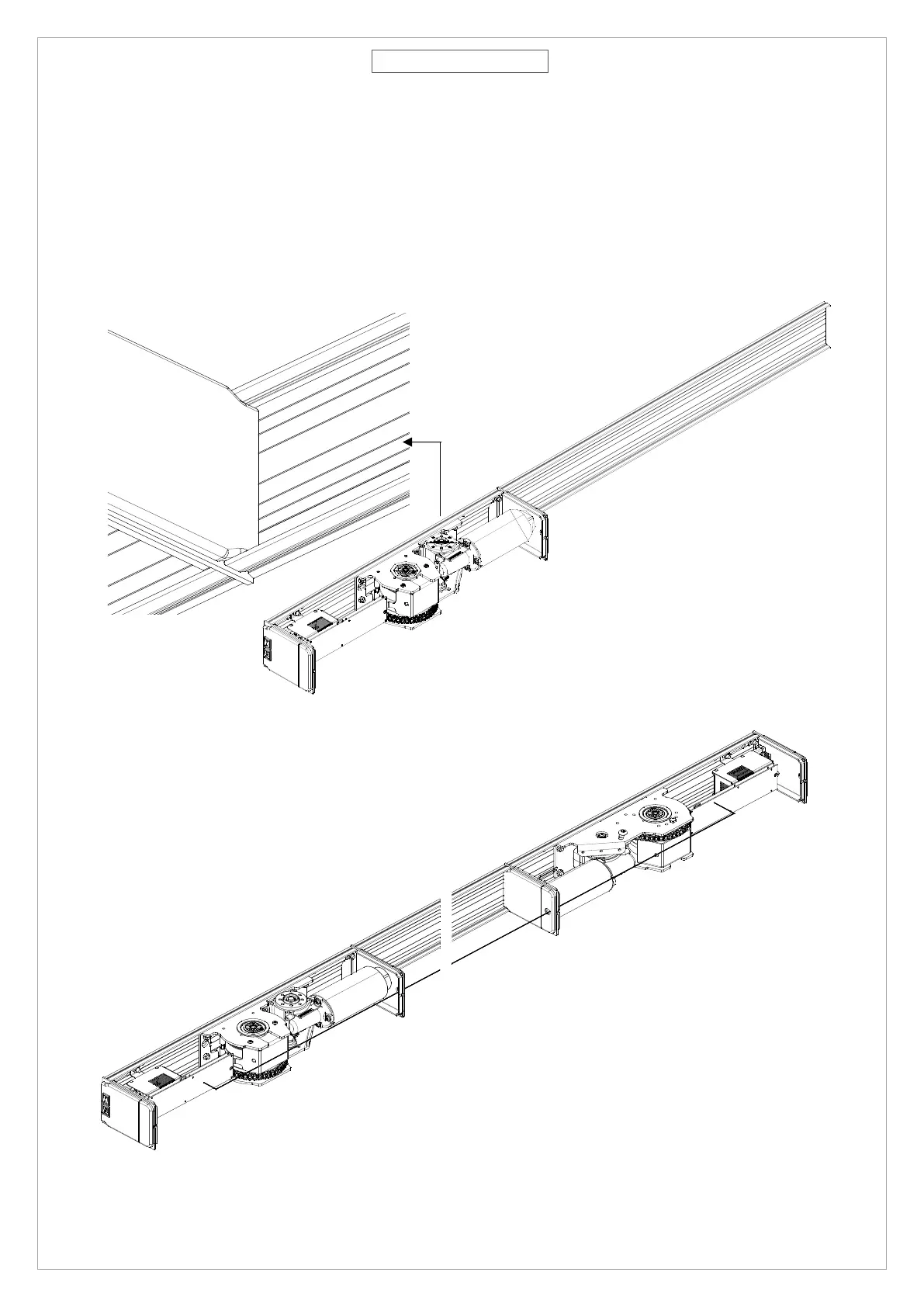

Assemble the first SmartPro and insert the base on its slot made on the outside lateral cap.
Assemble the second SmartPro and drill both internal caps to allow the sync cable to be wired.
Valid image for pull arm installations
For the correct placement of the two SmartPro,
always refer to the respective installation paragraph
