Interface box
Device overview
Addendum to the Operating Instructions – MOVIPRO
®
– Accessories
9

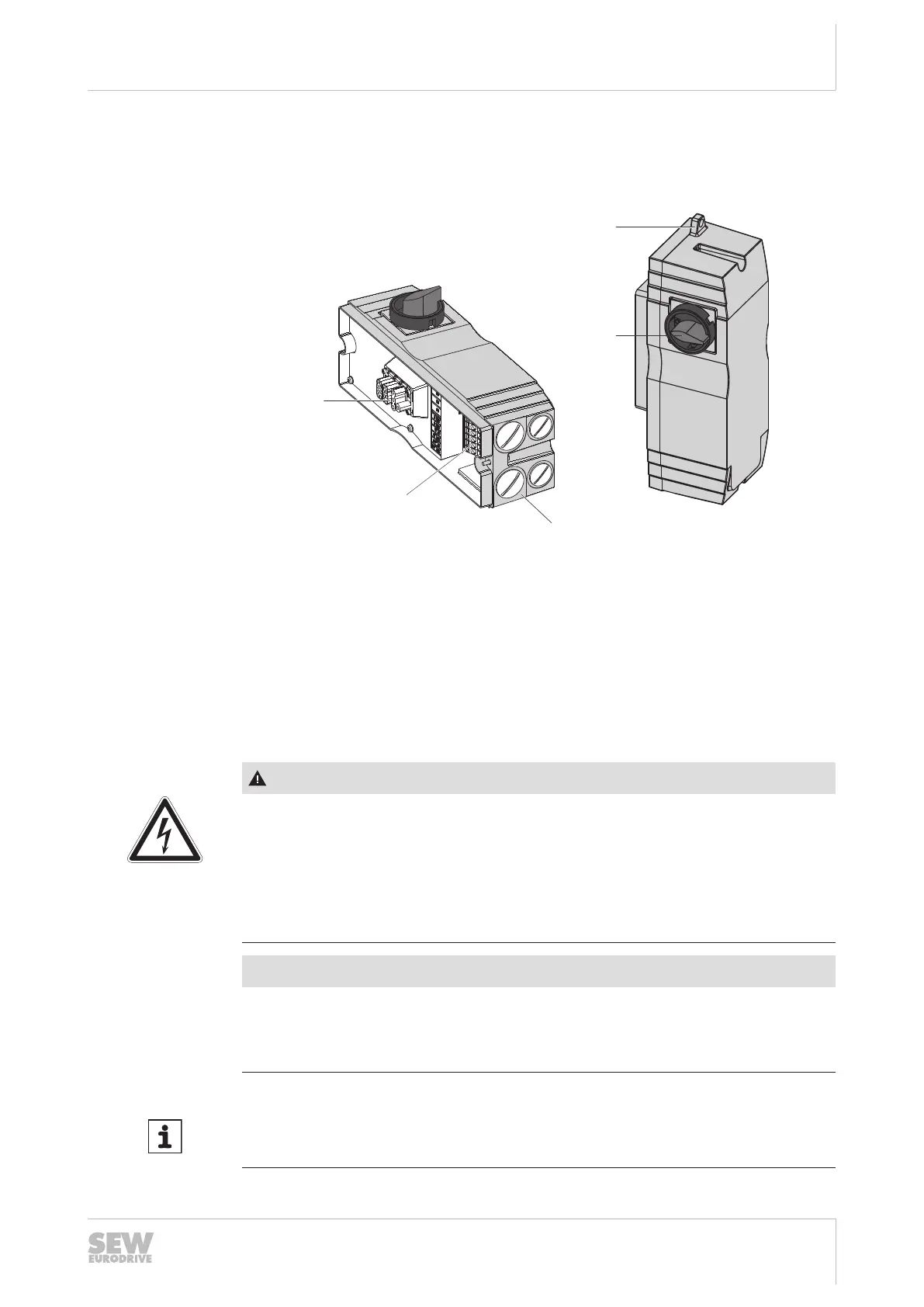

2.5 Device overview
The following figure provides an overview of the most important parts of the interface
box:
[2]
[3]
[1]
[4]
[5]
9007201302901515
[1] MOVIPRO
®
connection (Han
®
10B, female)
[2] Power input terminal strip X1
[3] Front panel connectors
[4] Maintenance switch
[5] Suspension device (for storing the interface box during a MOVIPRO
®
device re-
placement, for example)
2.6 Maintenance switch
WARNING
Electric shock due to dangerous voltages present in the interface box.
Severe or fatal injuries.
• Disconnect the MOVIPRO
®
from the voltage supply before you perform any work
on the device.
• Observe a minimum switch-off time of 10minutes after disconnecting the supply
voltage.
NOTICE
Increased wear of the switch contacts.
Destruction of the switch contacts.
• Do not operate the maintenance switch under load.
INFORMATION
If MOVIPRO
®
has a valid approval, the motor is supplied with current as soon as the
maintenance switch is set to position 1.
23106913/EN – 02/2018
