Sfere DGN175 U - Page 16

OFF
ON
setpoint
SPt.1
ON
OFF
setpoint
SPt.1
SPt.1
SPt.2
setpt
OF
F
ON
ON
setpt
SPt.2
SPt.1
ON
OFF
OFF
setpoints
Setting of the time lapse from 0 to 999.9 sec.
dOUbL: time delay on the alarm triggering and switch off
SIMPL: time delay on the alarm triggering only
Mode setpoint
or
or
Mode window
ON: coil supplied
OFF: coil not supplied

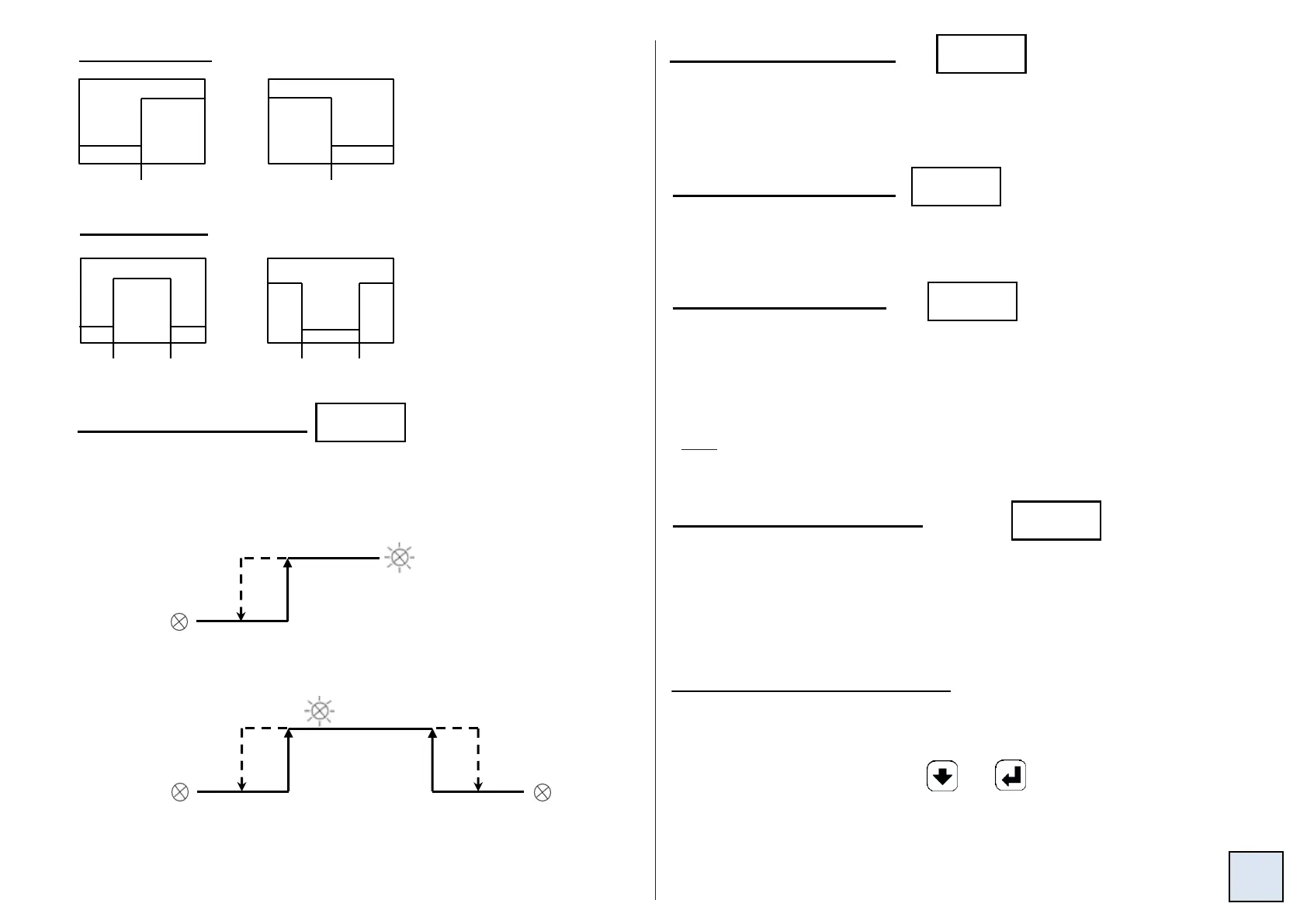

HYST
Setting of the hysteresis
The hysteresis is activated on switching from led on to led off, that
is to say on switching off alarm, since the led represents the alarm
status.
Mode setpoint
Mode window:
There are 2 ways to adjust setpoints:
- Either in mode programming entering the correct access code.
- Or by pressing simultaneously and if the access to a quick
programming has been authorized on the programming of the code (see p19)
SPt.1
SPt.1
- HYSt
Led on
Led off
SPt.1
SPt.1
- HYSt
Led off
Led on
Led off
SPt.2
SPt.2
+ HYSt
Time delay on the alarm
DeLAY
Choice of the led status
AL.LED
Choice of the status of the LED associated with the relay when the
relay coil is supplied.
Recording of the alarm
NENO
Allows recording the alarm after a setpoint has been passed. When the
measure comes back below the alarm setpoint, the relay remains on and the
led blinks to warn the user that the setpoint has been passed (for the reset to 0
of the alarm recordings see the menu CLr.AL in the direct functions).
Note: An exit from the mode programming with saving of the
configuration will reset the alarm recordings to 0.
Display of alarm messages
NESS
A programmed alarm message can be made to appear alternating with the
measure.
The message will appear only during the alarm, that is to say while the
associated led is on.
p15
Setting of the alarm setpoints
