3. CONNECTINGS

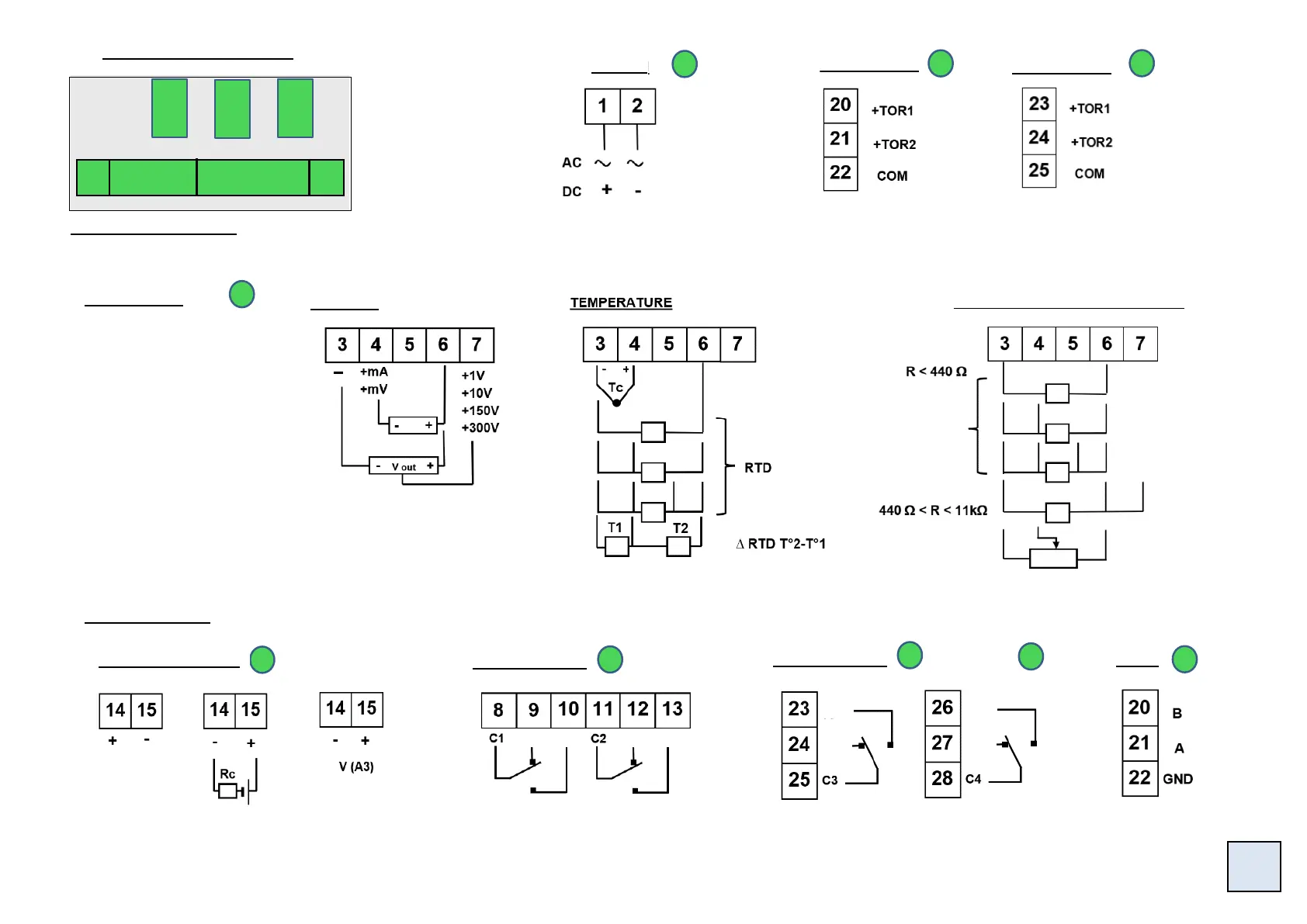

Location of the terminals
(view of case rear side)
INPUTS
OUTPUTS
1 2 3 4 5 6 7 8 9 1 0 11 1 2 1 3 1 4 1 5
A
G
F
or
26
27
28
20
21
22
23
24
25
LOGIC INPUTS
LOGIC INPUTS
SUPPLY
PROCESS
B
RESISTANCE AND POTENTIOMETER
2-wire
transmitter
3-wire
transmitter
2-wire
3-wire
2-wire
3-wire
4-wire
4-wire
Potentiometer
RELAIS 1 et 2
C
F
E
RS485
G
D
ANALOGUE OUTPUT
mA active (A1)
mA passive (A2)
p6
RELAYS 1 AND 2
RELAYS 3 AND 4
OFF1
ON1
OFF2
ON2
ON3
OFF3
ON4
OFF4
G
E
F
