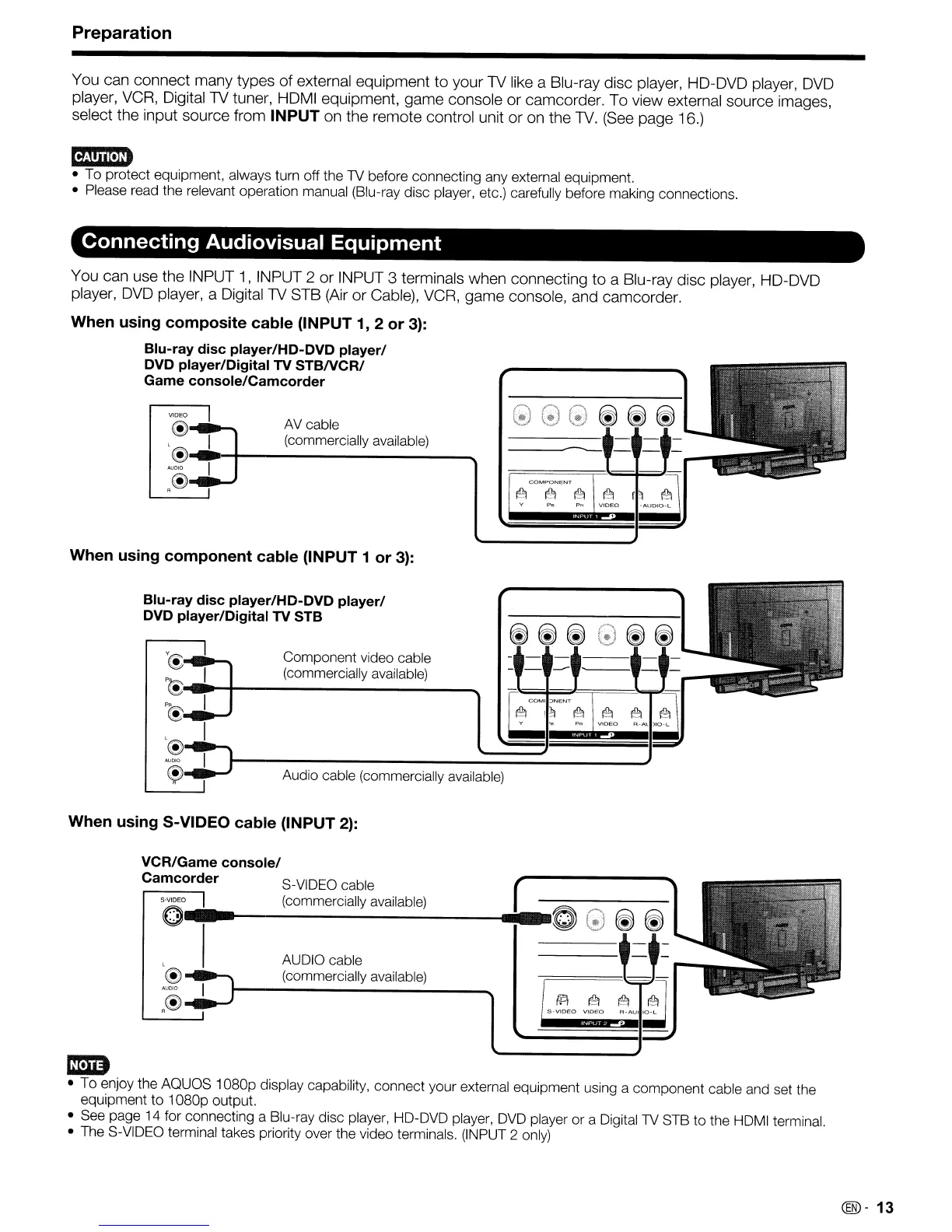

Preparation
You can connect many types
of
external equipment to your TV like a Blu-ray disc player, HD-DVD player,
DVD
player, VCR, Digital
TV
tuner, HDMI equipment, game console or camcorder. To view external source images,
select the input source from
INPUT
on the remote control unit or on the
TV.
(See
page 16.)
B!.iiID
• To protect equipment, always turn off the
1V
before connecting any external equipment.
• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.
Connecting Audiovisual Equipment
AV cable
(commercially available)
@'
.........
, I
@._I--+-----------_..
AUDIO I
.@,
......
J
VIDEO
You can use the INPUT
1,
INPUT 2 or INPUT 3 terminals when connecting
to
a Blu-ray disc player, HD-DVD
player, DVD player, a Digital TV STB (Air or Cable), VCR, game console, and camcorder.
When using composite cable (INPUT 1, 2
or
3):
Blu-ray disc player/HD-DVD player/
DVD player/Digital TV
STBNCR/
Game console/Camcorder
When using component cable (INPUT 1
or
3):
Audio cable (commercially available)
Blu-ray disc player/HD-DVD player/
DVD player/Digital TV STB
y((t:..........
Component video cable
(commercially available)
P€:
-+-------------
~
--'
:~
l------------~~~===:J~~
~
When using S-VIDEO cable (INPUT
2):
AUDIO cable
(commercially available)
VCR/Game console/
Camcorder
S-VIDEO cable
5-VIOEO (commercially available)
0-
I
'@
........
.vooo
1-
_
.@..-.....,
S-VIDEO
VIDEO
mm
• To enjoy the
AQUaS
1
D8Dp
display capability, connect your external equipment using a component cable and set the
equipment
to
1
D8Dp
output.
• See page 14 for connecting a Blu-ray disc player, HD-DVD player, DVD player
or
a Digital1V STB to the HDMI terminal.
• The S-VIDEO terminal takes priority over the video terminals. (INPUT 2 only)
@)-
13
