Sharp AR-M256 Service Manual

AR-M256/M257/M258/M316/M317/M318/5625/5631 SPECIFICATIONS 3 - 7

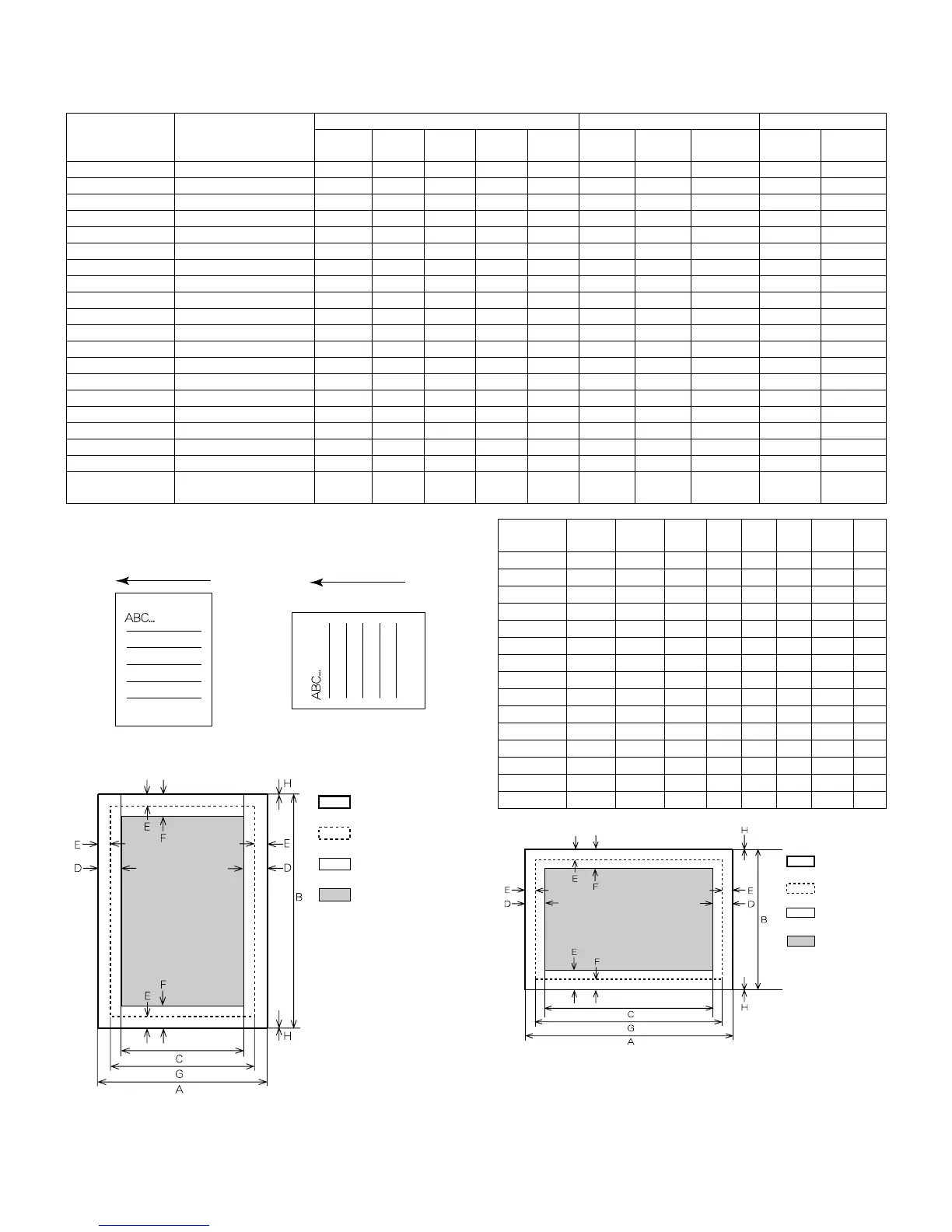

(5) Paper handling specifications
a. Paper feed direction
Limitations on tray/ functions for support paper
(6) Print enable area
Paper name Paper size
Paper feed tray Paper exit tray Function
Manual
tray
Tray 1 Tray 2 Tray 3 Tray 4
Center
tray
Upper
tray
Offset
tray
Staple Fit page
A3 297 x 420 mm Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
A4 210 x 297 mm Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
A5 148 x 210 mm Yes Yes N/A N/A N/A Yes Yes N/A N/A Yes
A6 105 x 148 mm Yes N/A N/A N/A N/A Yes N/A N/A N/A Yes
B4 257 x 364 mm Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
B5 182 x 257 mm Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
B6 128 x 182 mm Yes N/A N/A N/A N/A Yes Yes N/A N/A Yes
Ledger 11 x 17 inch Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Letter 8.5 x 11 inch Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Legal 8.5 x 14 inch Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Executive 7.25 x 10.5 inch Yes N/A N/A N/A N/A Yes Yes N/A N/A Yes
Folio 8.3 x 13 inch Yes N/A N/A N/A N/A Yes Yes N/A N/A Yes
Invoice 5.5 x 8.5 inch Yes Yes N/A N/A N/A Yes Yes N/A N/A Yes
Foolscap 8.5 x 13 inch Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8K 270 x 390 mm Yes Yes Yes Yes Yes Yes Yes Yes N/A Yes
16K 195 x 270 mm Yes Yes Yes Yes Yes Yes Yes Yes N/A Yes
DL 110 x 220 mm Yes N/A N/A N/A N/A Yes Yes N/A N/A Yes
C5 162 x 229 mm Yes N/A N/A N/A N/A Yes Yes N/A N/A Yes
Com10 4.125 x 9.5 inch Yes N/A N/A N/A N/A Yes Yes N/A N/A Yes
Custom W: 100 to 297 mm
L: 148 to 431.8 mm
Yes N/A N/A N/A N/A Yes N/A N/A N/A N/A
Setting direction toward paper
feed port = Long side
Setting direction toward paper
feed port = Short side
Transfer direction
Transfer direction
Actual page size
HP/GL
picture frame
Logic paper size
Print area
Paper
Size
ABCDEFGH
A3 7014 9920 6730 142 100 300 6814 0
B4 6070 8597 5786 142 100 300 5870 0
A4 4960 7014 4676 142 100 300 4760 0
B5 4298 6070 5770 142 100 300 4098 0
A5 3508 4960 3224 142 100 300 3308 0
Ledger 6600 10200 6300 150 100 300 6400 0
Legal 5100 8400 4800 150 100 300 4900 0
Letter 5100 6600 4800 150 100 300 4900 0
Invoice 3300 5100 3000 150 100 300 3100 0
Foolscap 5100 7800 4800 150 100 300 4900 0
Folio 4980 7800 4680 150 100 300 4780 0
Executive 4350 6300 4050 150 100 300 4150 0
COM-10 2474 5700 2174 150 100 300 2274 0
C5 3826 5408 3542 142 100 300 3626 0
DL 2598 5196 2314 142 100 300 2398 0
Actual page
size
HP/GL
frame
Logic paper
size
Print area
