AR-M256/M257/M258/M316/M317/M318/5625/5631 EXTERNAL VIEW AND INTERNAL STRUCTURE 6 - 3

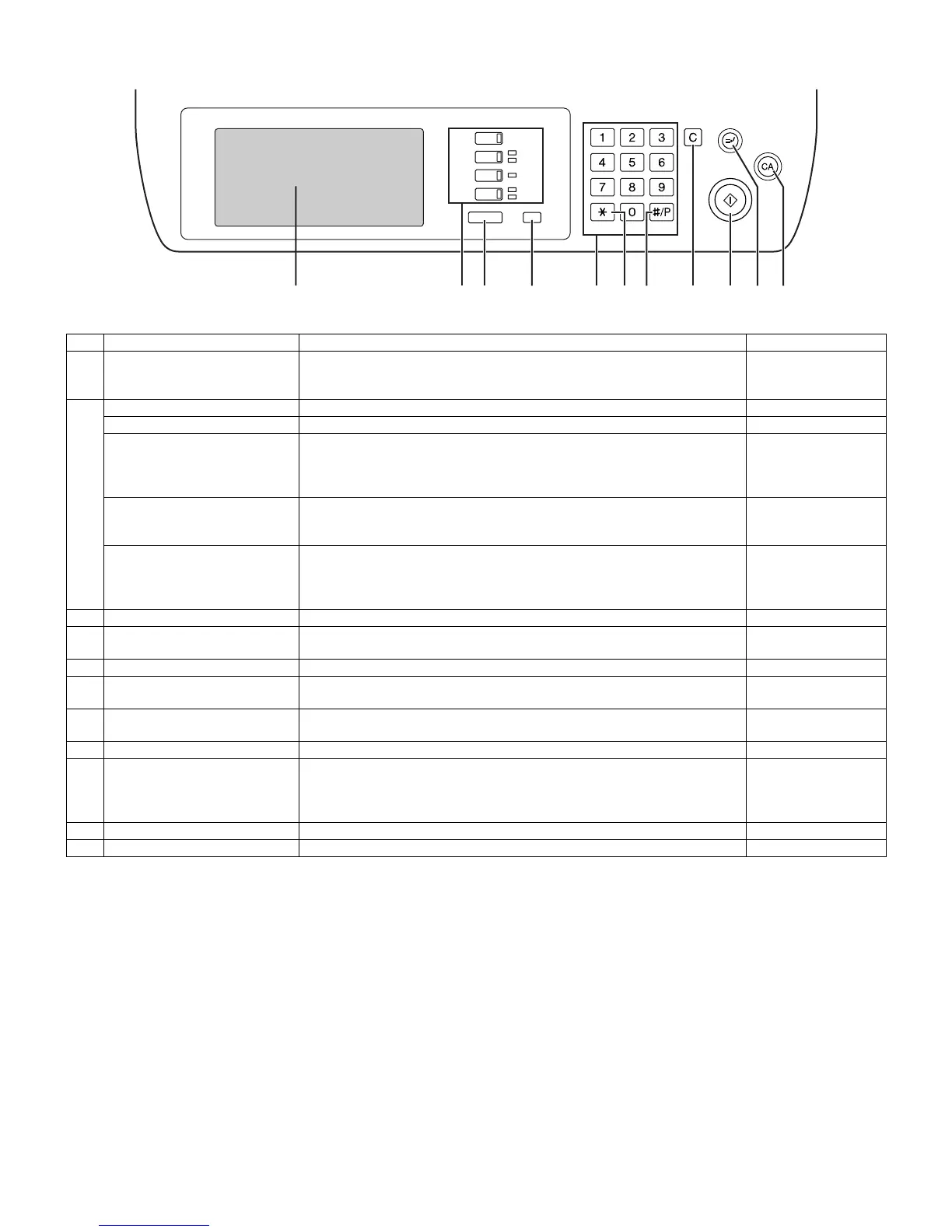

C. Operation panel
No. Name Function/Operation Note
1 Touch panel The machine status, messages and touch keys are displayed on the panel. The
display will show the status of printing, copying or network scanning according
to the mode that is selected.
2 Mode select keys and indicators Use to change modes and the corresponding display on the touch panel.
[COPY] key Press to select copy mode.
[PRINT] key/ONLINE indicator/
DATA indicator
[PRINT] key: Press to select print mode.
• ONLINE indicator: Print jobs can be received when this indicator is lit.
• DATA indicator: A print job is in memory. The indicator lights steadily while
the job is held in memory, and blinks while the job is printed.
[SCAN] key/DATA indicator [SCAN] key: Press to select network scan mode when the network scanner
option is installed.
• DATA indicator: Lights steadily or blinks while a scanned image is being sent.
When the network
scanner option is
installed.
[FAX] key/LINE indicator/
DATA indicator
[FAX] key: Press to select fax mode when the fax function is installed.
• LINE indicator : This lights up while faxes are being sent or received.
• DATA indicator: Blinks when a fax has been received to memory and lights
steadily when a fax is waiting in memory for transmission.
When the fax option is
installed.
3 [JOB STATUS] key Press to display the current job status.
4 [CUSTOM SETTINGS] key Use to adjust various settings of the machine including the contrast of the touch
panel and key operator programs.
5 Numeric keys Use to enter numeric values for various settings.
6 [ACC.#-C] key When auditing mode is enabled, press this key after finishing a job to return the
machine to account number entry standby.
7 [#/P] key Use this key to execute a job program in copy mode. The key is also used to
dial in fax mode.
8 [CLEAR] key Press to clear a copy number setting or cancel a job.
9 [START] key Press in copy mode, scanner mode, or fax mode to begin copying, network
scanning, or faxing.
This key blinks when auto power shut mode has activated. Press the key to
return to normal operation.
10 [INTERRUPT] key Use to perform an interrupt copy job.
11 [CLEAR ALL] key Resets the settings to the initial settings.
COPY
PRINT
SCAN
FA X
ON LINE
DATA
DATA
DATA
LINE
JOB STATUS
CUST OM SETTINGS
AC C.#-C
9 10 11 23 4 5 67 81
