AR-M256/M257/M258/M316/M317/M318/5625/5631 UNPACKING AND INSTALLATION 5 - 7
C. AR-PF1/PF2

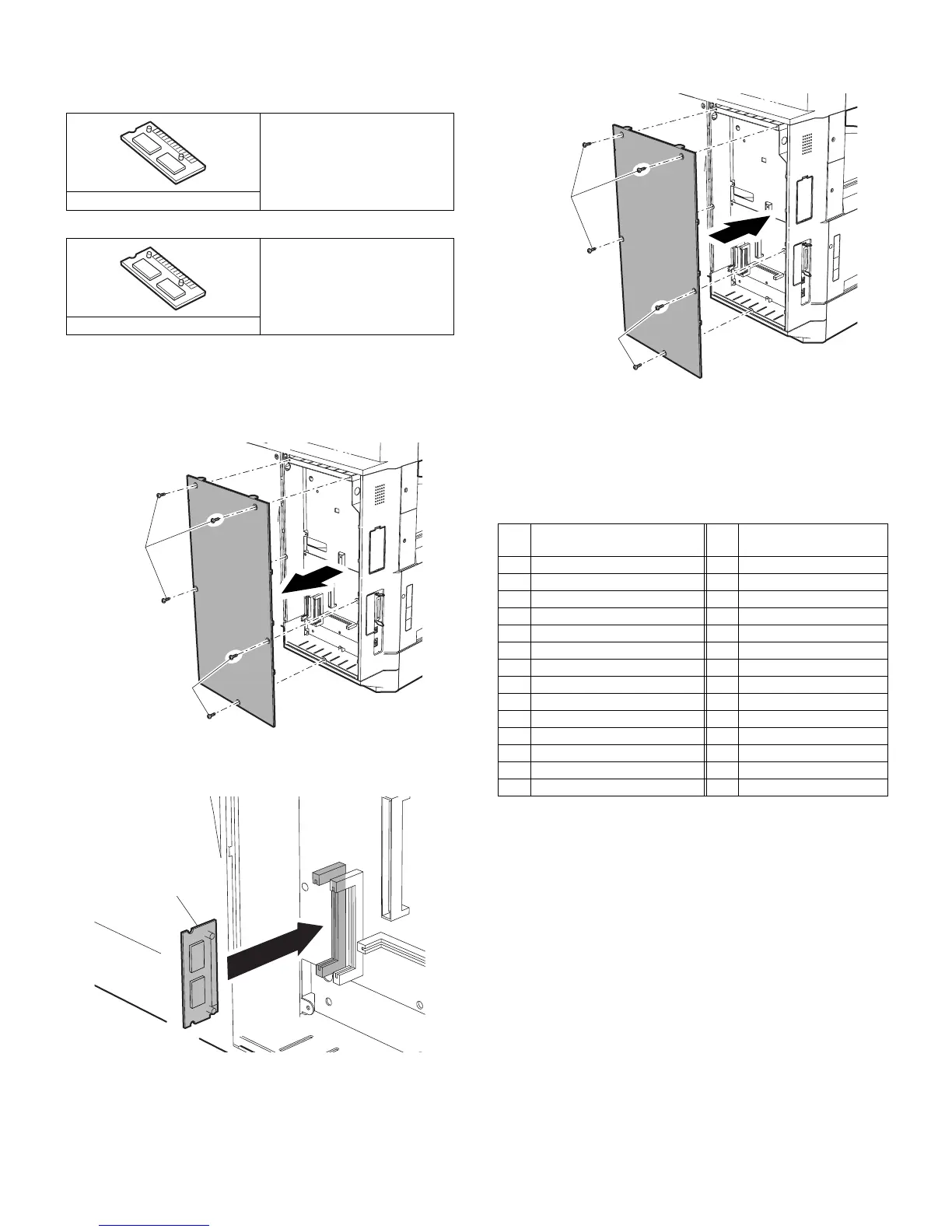

(1) Parts included
AR-PF1
AR-PF2
(2) Installation
Turn off the main switch of the copier and then remove the power
plug of the copier from the outlet.
1) Remove the shielding plate.
Remove five screws and remove the shielding plate.
2) Attach the bar code board/flash ROM.
Attach the bar code board/flash ROM board to CN7 of the printer
board.
3) Attach the shielding plate.
Attach the shielding plate using the five screws.
Insert the power plug of the copier to the outlet and turn on the
main switch. Then, carry out the following procedure.
4) Check the bar codes. (AR-PF1 only)
Use the operation keys on the operation panel to print the PCL font
list from the test page printing.
Check that the optional font list is printed at the end.
(3) Font list
(4) Check when installing the AR-PF2
Check can be made by print out of the printer setting list.
The expansion font item in the printer setting list is changed from "unin-
stalled" to "download font."
D. MX-NSX1
(1) Packed items
This network scanner kit includes the following items in the package.
• CD-ROM (Network Scanner Tool and Sharpdesk, Installer, Sharp
TWAIN driver, etc.)
• Installation caution sheet and Operation Manual (License numbers
of 10 user clients of Sharpdesk are specified.)
(2) Installation procedure
To use the scanner expansion kit, a S.O.DIMM memory module (128
MB or more) is needed.
If no memory is added, an S.O.DIMM module must be mounted on
PCL PWB.
For the mounting method and the memory capacity, see below.
To enable the scanner function, the product key must be acquired.
(For the method of acquiring the product key, contact the SHARP
authorized dealer.)
CD-ROM: 1 pc.
Operation manual
Installation caution sheet
Bar code board: 1 pc.
Operation manual
Installation caution sheet
Flash ROM board: 1 pc.
Screws
Screws
Bar code board/
Flash ROM board/
Font ROM board
Font
No.
Font name
Font
No.
Font name
1 Code128TT-Regular 15 OCR-A
2 Code128-NarrowTT-Regular 16 OCR-B
3 Code128-WideTT-Regular 17 OCR-B-C39-Regular
4 Code39HalfInch-Regular 18 Upc-Half
5 Code39OneInch-Regular 19 Upc-Half-Bars
6 Code39QuarterInch-Regular 20 Upc-HalfMusic
7 Code39SmallHigh-Regular 21 Upc-HalfNarrow
8 Code39Slim-Regular 22 Upc-HalfThin
9 Code39SmallLow-Regular 23 Upc-Tall-Regular
10 Code39SmallMedium-Regular 24 Upc-TallBarsThin-regular
11 Code39Wide-Regular 25
Upc-TallMusicThin-Regular
12 Codabar-Regular 26 Upc-TallNarrow-Regular
13 Interleaved2of5-Regular 27 Upc-TallThin-regular
14 Interleaved2of5-Thin-Regular 28 ZipCodeBarcode-Regular
Screws
Screws
