Sharp GF-800Z User Manual

To turn the unit off at desired time within 64 minutes
• The radio can be turned off automatically, or cassette deck can
be stopped and then the unit can be turned off automatically
after recording or reproducing.
• The timer can be set either the unit is in operation or it is out
of operation.

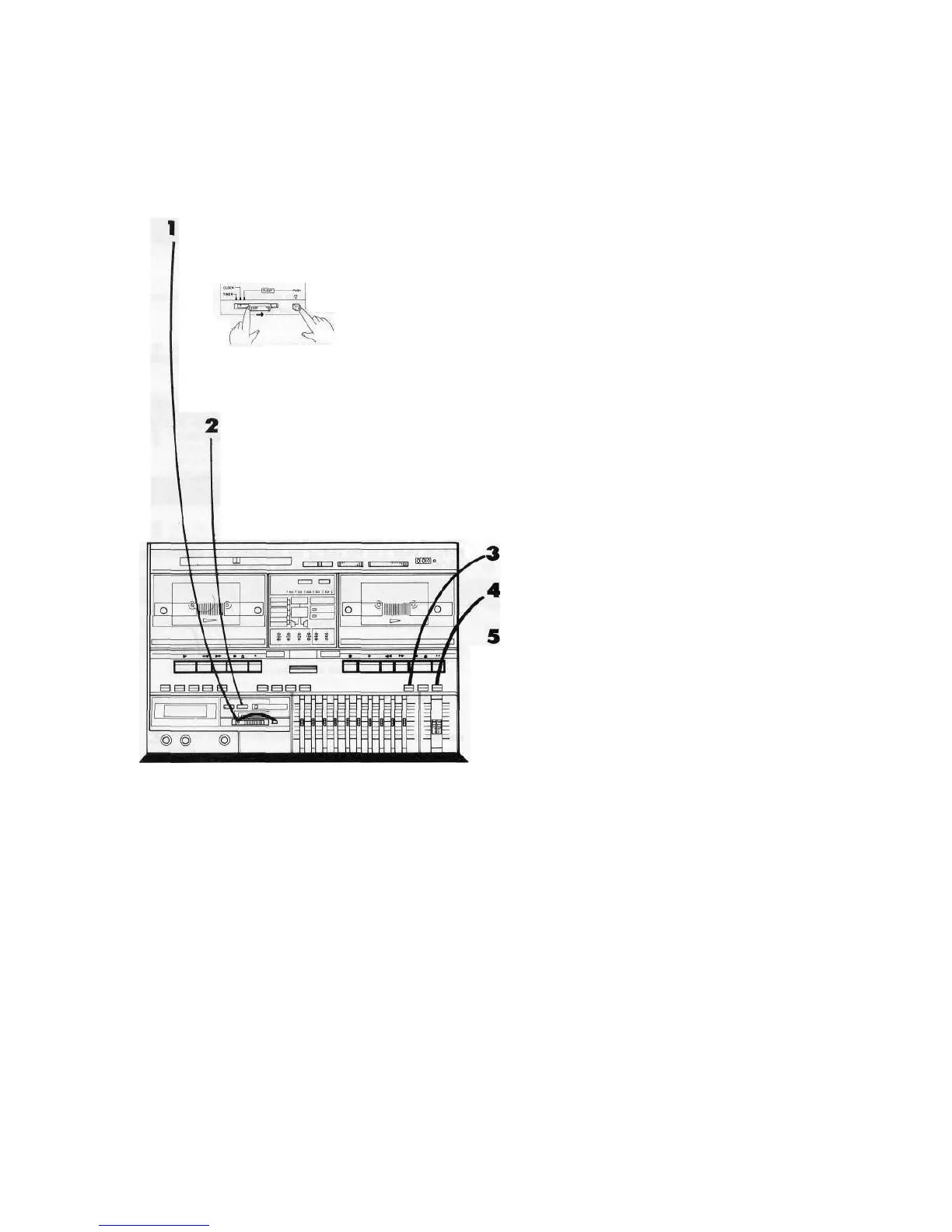

Set the TIMER/CLOCK/SLEEP selector to the SLEEP
position. Upper dot of the colon between hour and minute
digits goes out.
• To set the Selector to the SLEEP
position, slide the selector knob toward
the right while pressing the button on
the right side of the Selector.
When the Selector is set to the CLOCK
or TIMER position again, the button
on the right side of the Selector does
not have to be pressed.
Press the MINUTE button to set the SLEEP timer to desired
period of time.
• The time decreases a minute at a time if the button is
pressed.
• If the button is pressed for more than two seconds, the
time decreases continuously.
• If desired period of time is 64 minutes, do not press the
button.
Do not set the period of time shorter than
cassette recording time. Be sure to set the
time which is long enough to stop the tape
by auto-stop, and then turn the unit off by
the timer.
Set the SLEEP switch to the ON position. Then the timer
starts counting down.
Set the POWER switch to the OFF position.
The unit will be turned off after the period set is lapsed.
The SLEEP timer can be set again to 64 minutes after turning
the unit off automatically by setting the TIMER/CLOCK/
SLEEP selector to the CLOCK or the TIMER position once
and then back to the SLEEP position.
• During SLEEP timer operation, current time or TIMER set
time can be displayed by changing the TIMER/CLOCK/SLEEP
selector to either the CLOCK or TIMER position. The SLEEP
operation is still active while displaying those and it can be
restored by selecting back to the SLEEP mode.
To turn the radio off automatically by the SLEEP timer and then turn it on automatically again by the
Automatic ON TIMER.
1 Set the Automatic ON TIMER as described in steps 1 to 4
on the previous page.
2 Set the SLEEP timer as described in steps 1 to 3 on this
page for automatic turn off time.
18

Sharp GF-800Z Specifications

Power

AC power source voltage	110V - 127V and 220 - 240V
DC power source voltage	15V
Frequency	50/60Hz

Output Power

PMPO output power	52W (26W + 26W)
MPO output power	40W (20W + 20W)
RMS output power	26W (13W + 13W)

Tape Recorder Specifications

frequency response for normal tape	30Hz — 14, 000Hz
frequency response for CrO2 tape	30Hz - 16, 000Hz
frequency response for metal tape	30Hz - 17, 000Hz
signal/noise ratio for Deck 1 playback	55 dB
signal/noise ratio for Deck 2 recording	50 dB

Impedance

external mic input impedance	600 ohms
phono/line in input impedance	50 kohms/50 kohms
loaded impedance for headphones	8 ohms — 32 ohms
loaded impedance for external speakers	8 ohms — 16 ohms
line out impedance	0.6V/50 kohms

Radio Specifications

AM frequency range	526.5 kHz - 1606.5 kHz
SW1 frequency range	2.3 MHz - 7.3 MHz
SW2 frequency range	7.3 MHz - 22 MHz
FM frequency range	87.6 MHz - 108 MHz

Speaker Specifications

woofer size	16 cm (6-1/2")
tweeter count	2
speaker impedance	8 ohms
maximum input	26W

Weight and Dimensions

width	681 mm (26-13/16")
height	225 mm (8-7/8")
depth	210 mm (8-1/4")
weight	8.8 kg (19.4 lbs.) without batteries
