SPEAKER BOX
•Set the POWER switch to the OFF position before connecting speakers.
HOW TO INSTALL SPEAKERS TO THE
UNIT
HOW TO USE SPEAKERS SEPARATELY

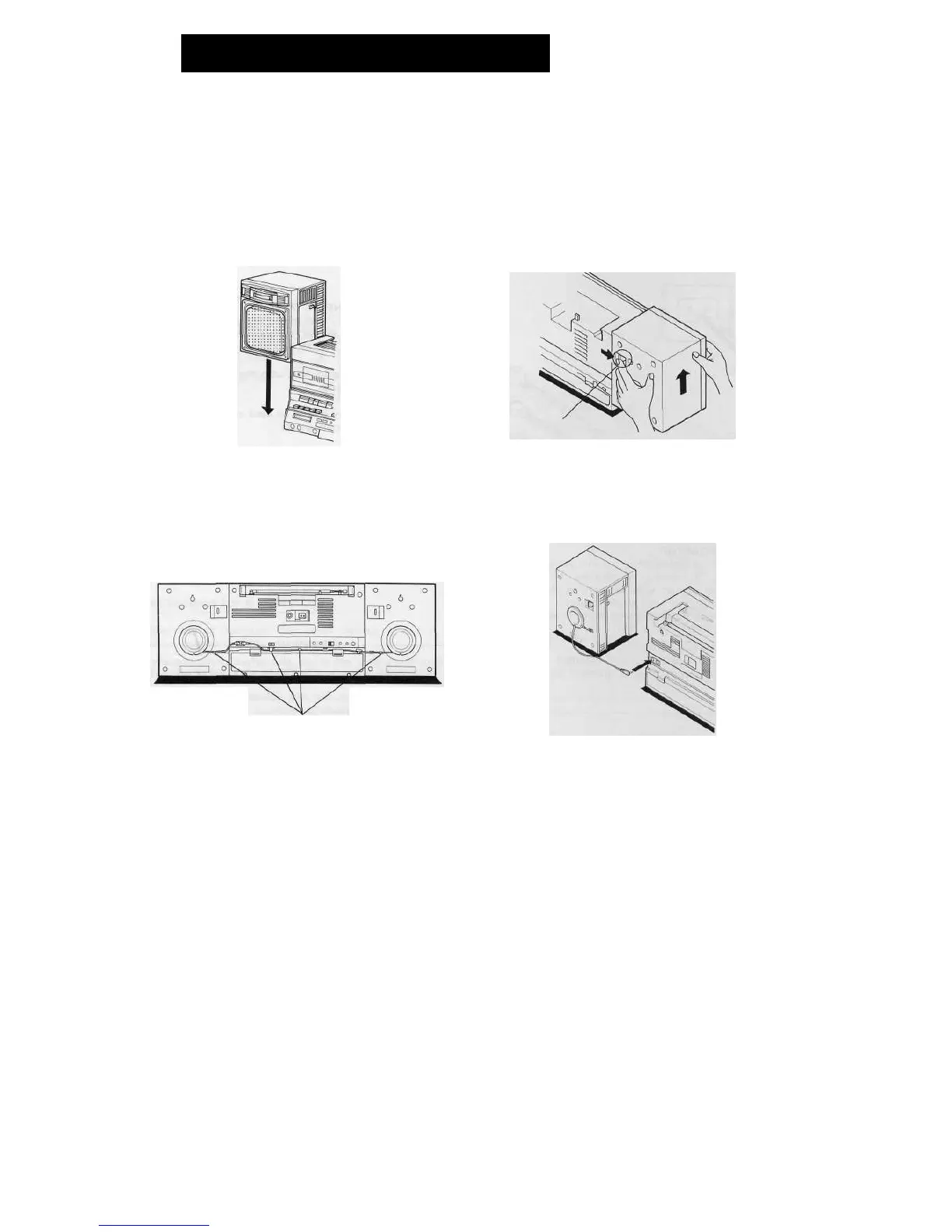

1 Align the grooves of the speaker box to the protruding
portion of the main body.
2 Lower the speaker box until it becomes the same height
to the main body.
1 Disconnect the plugs from the EXT SP sockets at the rear
of the unit.
2 То unlock the speaker, slide the RELEASE knob at the
rear of the speaker box in the direction as shown in illust-
ration, and then lift the box to remove it from the main
body while holding the RELEASE knob.
CORRELATION BETWEEN SPEAKERS AND UNIT
• The speakers' maximum input power is 26W.
Do not connect the speakers to an amplifier with a maximum
output power of more than 26W, as this may damage the speakers.
Caution
Do not short-circuit the EXT SP (External Speaker) outputs
or leads, positive and negative polalities at both right and/or
left speakers, since it may damage the audio output circuit of
the amplifier.
7
• Connecting speakers with less than 8 ohms impedance to the
unit may damage the electric circuitry in the amplifier section
of the unit.
3 After extending the desired length of the speaker leads,
connect the plugs to the EXT SP sockets.
3 Open out the two speaker leads in order to reach the EXT
SP sockets. And connect the plugs to the EXT SP sockets.
Put the speaker leads into the grooves in the speaker box
and main unit as shown in illustration.
RELEASE Knob
To Next Page
