Sharp GF-800Z User Manual

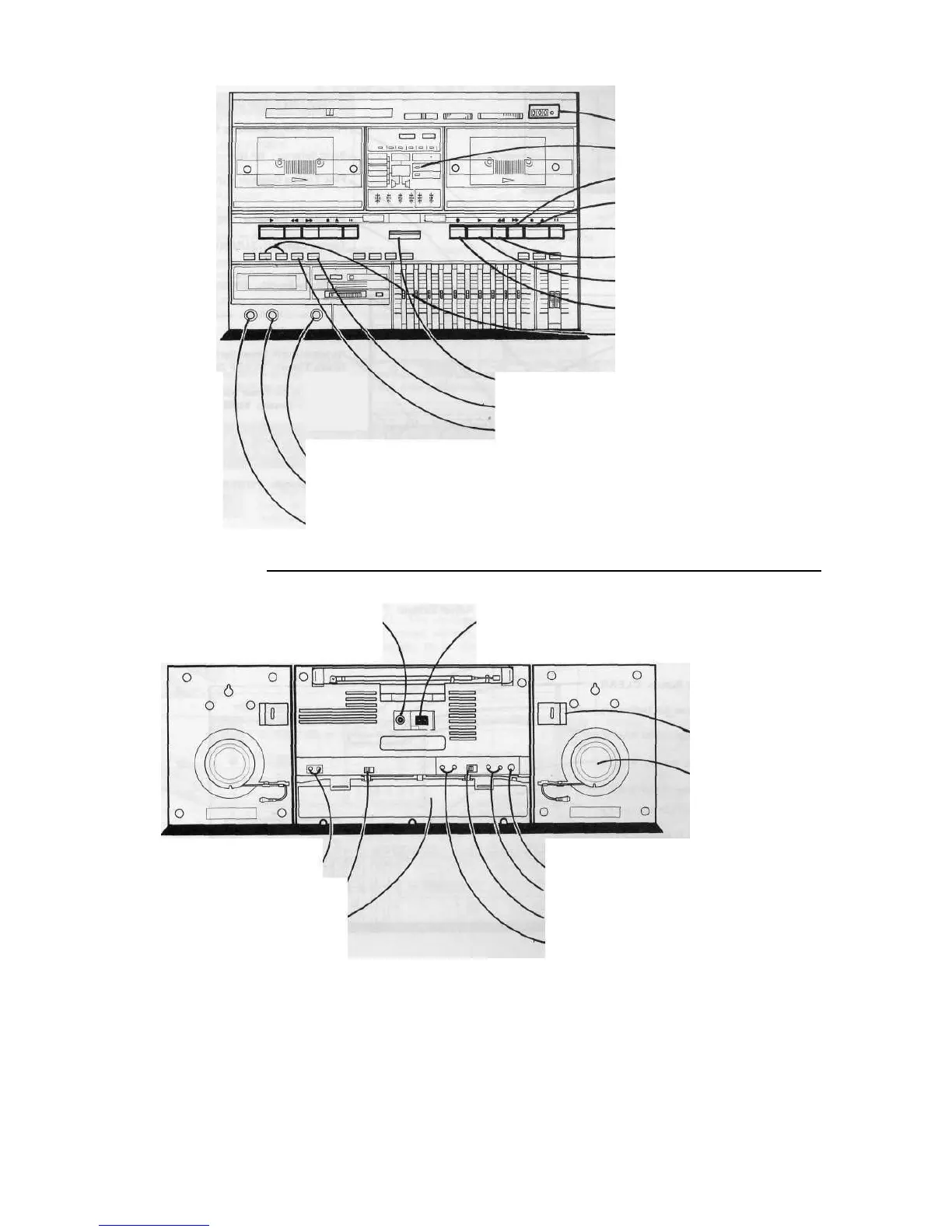

REAR PANEL
External DC Power Supply Socket: DC 15V
AC Power Supply Socket: AC INPUT
External Speaker Sockets: EXT SP
Beat Cancel Switch: BEAT CANCEL
Battery Compartment
Earth Terminal: GND (PHONO)
Phono/Line Input Sockets: INPUT R/L
Input Selector: LINE IN/PHONO INPUT
Line Output Sockets: LINE OUT
Speaker Release Knob
Speaker Lead Holder
DECK 2 OPERATION
Tape Counter and Reset Button
Record Indicator: RECORD
Fast Forward/Cue Button: FF
Stop/Eject Button: STOP/EJECT
Pause Button: PAUSE
Rewind/Review Button: REW
-Play Button: PLAY
-Record Button: RECORD
-Tape Selector: TAPE [2]
Dubbing Start Button: DUBBING START
Dubbing Speed Button: DUBBING SPEED
Playback Mode Selector: CONT PLAY
Headphones Socket: PHONES
Flight Microphone Socket: R/EXTMIC
Left Microphone Socket: L/EXT MIC
3

Sharp GF-800Z Specifications

Power

AC power source voltage	110V - 127V and 220 - 240V
DC power source voltage	15V
Frequency	50/60Hz

Output Power

PMPO output power	52W (26W + 26W)
MPO output power	40W (20W + 20W)
RMS output power	26W (13W + 13W)

Tape Recorder Specifications

frequency response for normal tape	30Hz — 14, 000Hz
frequency response for CrO2 tape	30Hz - 16, 000Hz
frequency response for metal tape	30Hz - 17, 000Hz
signal/noise ratio for Deck 1 playback	55 dB
signal/noise ratio for Deck 2 recording	50 dB

Impedance

external mic input impedance	600 ohms
phono/line in input impedance	50 kohms/50 kohms
loaded impedance for headphones	8 ohms — 32 ohms
loaded impedance for external speakers	8 ohms — 16 ohms
line out impedance	0.6V/50 kohms

Radio Specifications

AM frequency range	526.5 kHz - 1606.5 kHz
SW1 frequency range	2.3 MHz - 7.3 MHz
SW2 frequency range	7.3 MHz - 22 MHz
FM frequency range	87.6 MHz - 108 MHz

Speaker Specifications

woofer size	16 cm (6-1/2")
tweeter count	2
speaker impedance	8 ohms
maximum input	26W

Weight and Dimensions

width	681 mm (26-13/16")
height	225 mm (8-7/8")
depth	210 mm (8-1/4")
weight	8.8 kg (19.4 lbs.) without batteries
