Sharp GF-800Z User Manual

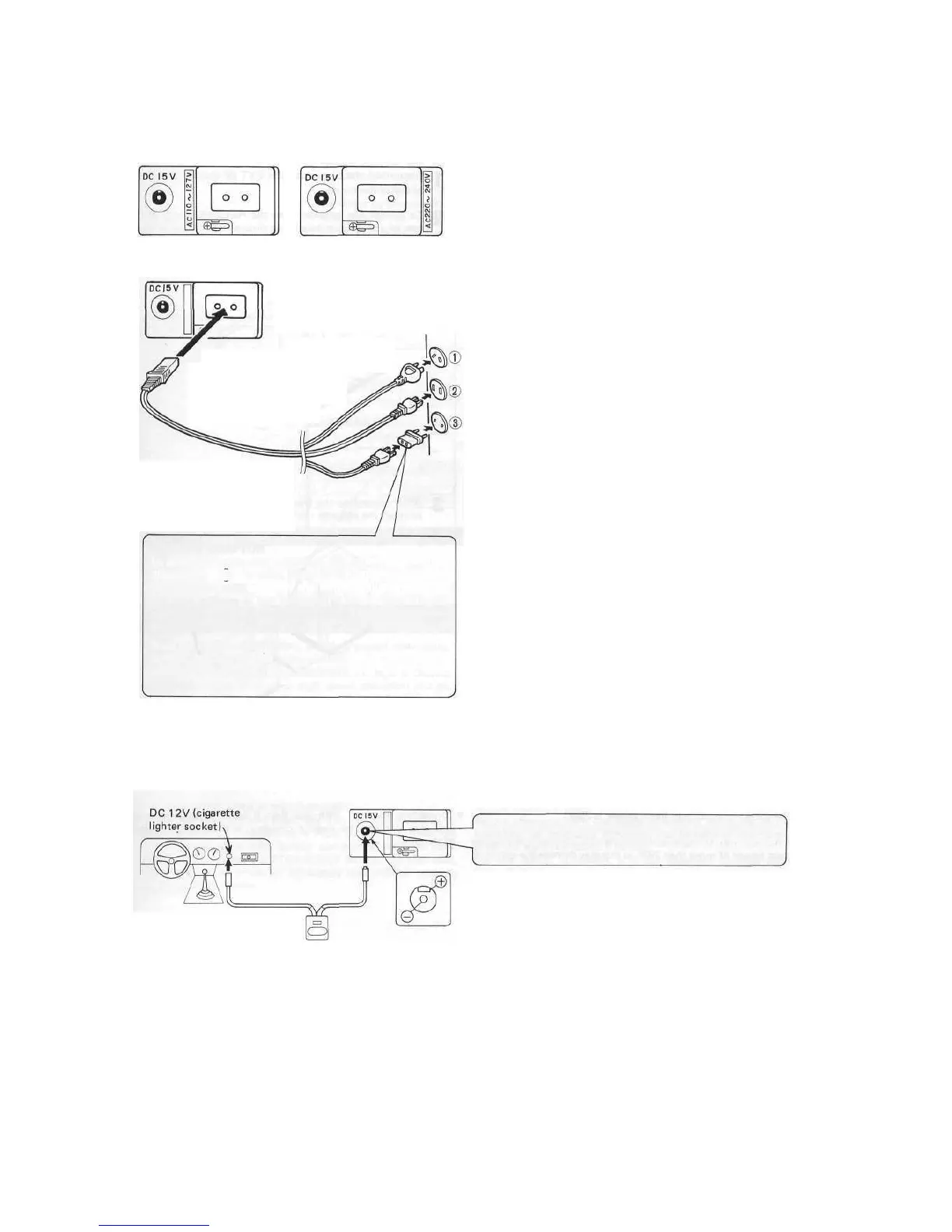

AC OPERATION
AC SUPPLY VOLTAGE SELECTOR
Check the setting of the voltage selector before connecting
the AC supply plug to an AC outlet. If necessary, change the
setting as follows:
WARNING
When this unit is not in use, also before attempting any
internal examination, pull the mains plug out of the wall
socket.
Loosen the screw of the supply voltage selector.
Slide the panel right or left, until the correct voltage
reading is seen on either side. Secure the screw.
CONNECTION TO THE AC OUTLET
Connect the AC supply lead to the AC supply socket of the
unit. Then, connect the AC supply plug to an AC outlet.
Supply is either 110V - 1 27V or 220V - 240V.
• Inserting the AC supply lead into the unit automatically
disconnects the batteries.
• An AC power supply should be used whenever possible in
order to conserve battery power.
• Remove the batteries when using the AC power for a long
time.
AC PLUG ADAPTOR
In areas (or countries) where an AC outlet as shown in
illustration (3) is used, connect the unit using the AC
plug adaptor supplied with the unit, as illustrated. The
AC plug adaptor is not included in areas where the AC
wall outlet and AC supply plug can be directly connected
(See illustrations (1)and (2) ).
Note for users in Australia:
An AC plug adaptor is not included in units, for
Australian Standard plug is attached to an AC cord
supplied.
AC 110- 127V
AC 220 - 240V
CAR BATTERY OPERATION
Use car battery adaptor AD-118N (not supplied), for 12V car
battery. Connection of the adaptor to the DC 15V input on
the rear panel of the unit and cigarette lighter socket of the
car will cut out the internal batteries.
The center pin is a negative polarity. Use the specified car
battery adaptor because polarity is different in manufac-
turers.
Car battery adaptor AD-118N
(not supplied)
6

Sharp GF-800Z Specifications

Power

AC power source voltage	110V - 127V and 220 - 240V
DC power source voltage	15V
Frequency	50/60Hz

Output Power

PMPO output power	52W (26W + 26W)
MPO output power	40W (20W + 20W)
RMS output power	26W (13W + 13W)

Tape Recorder Specifications

frequency response for normal tape	30Hz — 14, 000Hz
frequency response for CrO2 tape	30Hz - 16, 000Hz
frequency response for metal tape	30Hz - 17, 000Hz
signal/noise ratio for Deck 1 playback	55 dB
signal/noise ratio for Deck 2 recording	50 dB

Impedance

external mic input impedance	600 ohms
phono/line in input impedance	50 kohms/50 kohms
loaded impedance for headphones	8 ohms — 32 ohms
loaded impedance for external speakers	8 ohms — 16 ohms
line out impedance	0.6V/50 kohms

Radio Specifications

AM frequency range	526.5 kHz - 1606.5 kHz
SW1 frequency range	2.3 MHz - 7.3 MHz
SW2 frequency range	7.3 MHz - 22 MHz
FM frequency range	87.6 MHz - 108 MHz

Speaker Specifications

woofer size	16 cm (6-1/2")
tweeter count	2
speaker impedance	8 ohms
maximum input	26W

Weight and Dimensions

width	681 mm (26-13/16")
height	225 mm (8-7/8")
depth	210 mm (8-1/4")
weight	8.8 kg (19.4 lbs.) without batteries
