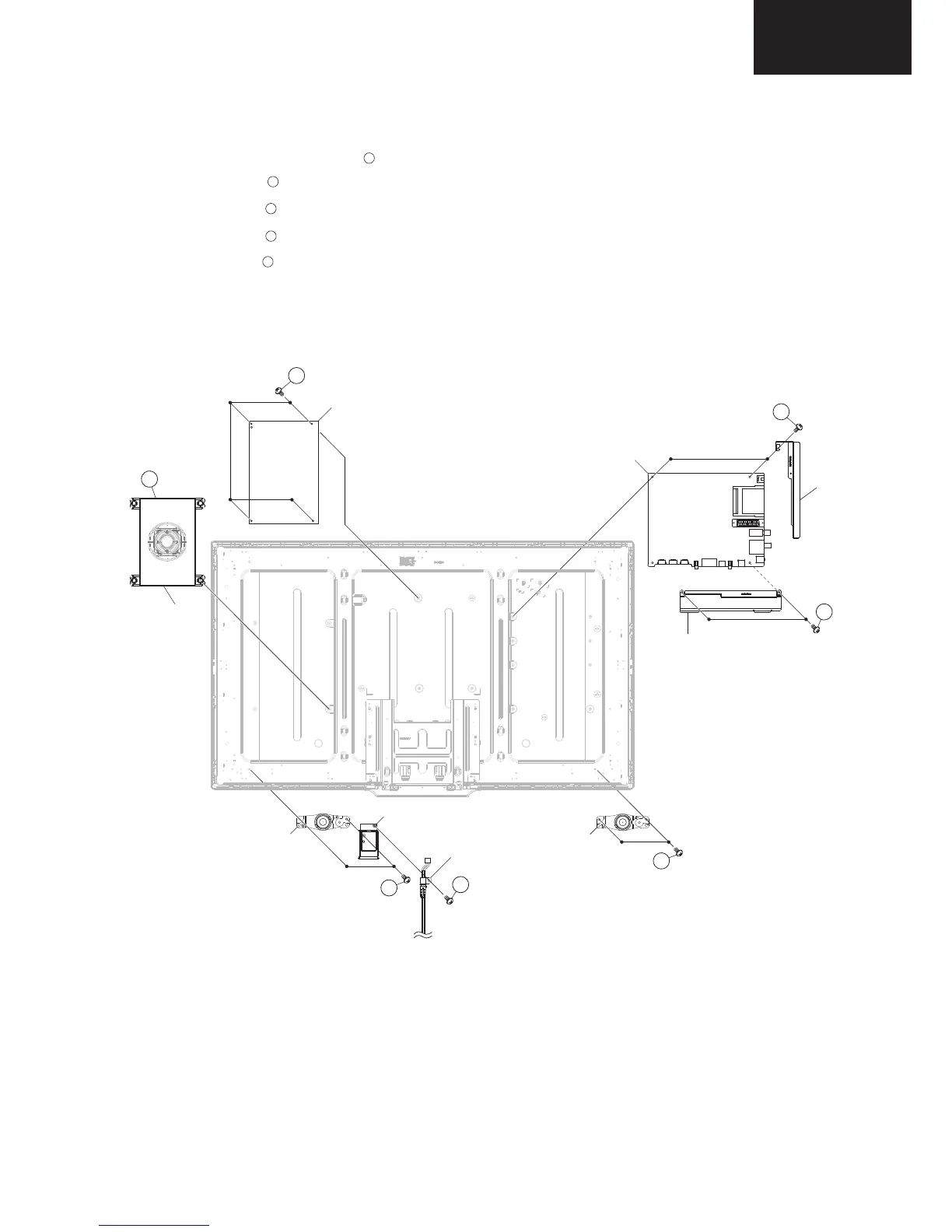

2. Removing of major Parts 46” (Continued)
LC-46L*73*E*
3 / 5
4. Remove the SPEAKER full range (subwoofer) .
5. Remove the 4 lock screws and detach the TERMINAL COVER side, bottom and the MAIN unit.
6. Remove the 4 lock screws and detach the POWER unit.
7. Remove the 4 lock screws and detach the SPEAKER tweeter L and R.
8. Remove the 1 lock screws and detach the AC CORD from AC HOLDER BRACKET.
6
7
5
4
8
MAIN unit
TERMINAL
COVER
side
TERMINAL
COVER
bottom
5
5
SPEAKER -L
(tweeter)
7
SPEAKER -R
(tweeter)
7
AC HOLDER
BRACKET
AC CORD
8
SPEAKER
full range
(subwoofer)
4
POWER unit
6
